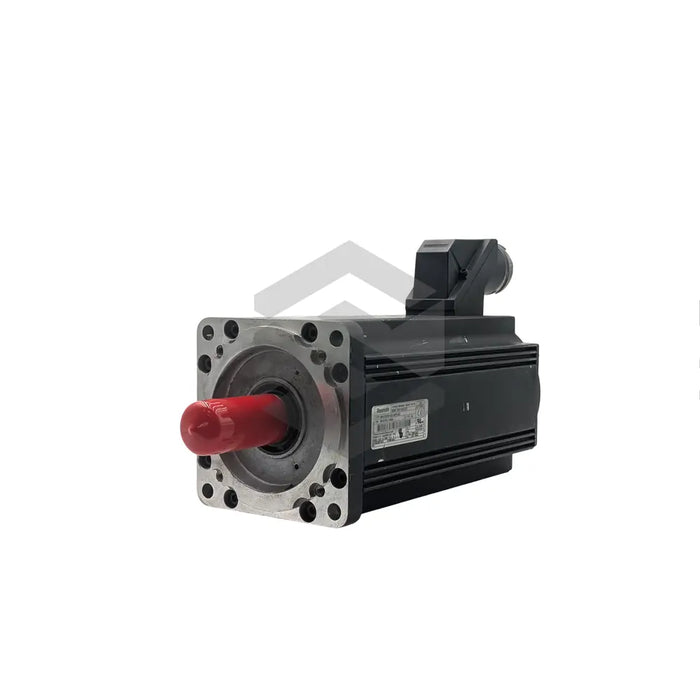

C image of MHD093B-058-NP1-AN | Main (Front Left)

MHD093B-058-NP1-AN

by Bosch Rexroth Indramat
$10,174.44 - $15,717.28
$10,174.44
$10,174.44 - $15,717.28
$10,174.44

In Stock, Ships 1 - 3 Days

The MHD093B-058-NP1-AN is a high-performance synchronous motor developed by Bosch Rexroth Indramat, a trusted industry front-runner in innovative motion control technology. This model is a key component of the DIAX04 drive system and is engineered for exceptional dynamics and repeated start-stop applications due to its high repetition frequencies. The motor is designed to function optimally in conjunction with a specifically designed digital intelligent driver controller, aiding in creating a rapid-response, cost-efficient movement control system. It includes an optional liquid cooling feature along with its natural cooling mode, with the capacity to dissipably 900W of heat. Superior performance is seen up to an altitude of 1000 meters above sea level and a maximum ambient temperature of +40°C. Bound to an A-side power terminal, it enables direct connection with a 200 – 347 VAC main voltage supply. The flange mounting design with a diameter of 130mm allows easy installation, offering a maximum torque of 66Nm and a maximum speed of 6000 rpm. The protection category of the MHD synchronous motor is IP65.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

MHD093B-058-NP1-AN

Industry Usage

Various industrial sectors

Motor Type

Synchronous motor

Drive System

DIAX04

Cooling Modes

Natural and Liquid

Heat Dissipation

900 W

Ambient temperature

+40 degree Celsius

Maximum Mounting Height

1000 meters above sea level

Power Terminal

A-side

Voltage Supply

200 – 347 VAC

Mounting Type

B05 flange mounting

Centering Diameter

130 mm

Motor Control

Digital intelligent drive controller

Maximum Torque

66 Nm

Maximum Current

101.2 A

Maximum Operating Speed

6000 rpm

Protection Category

IP65
