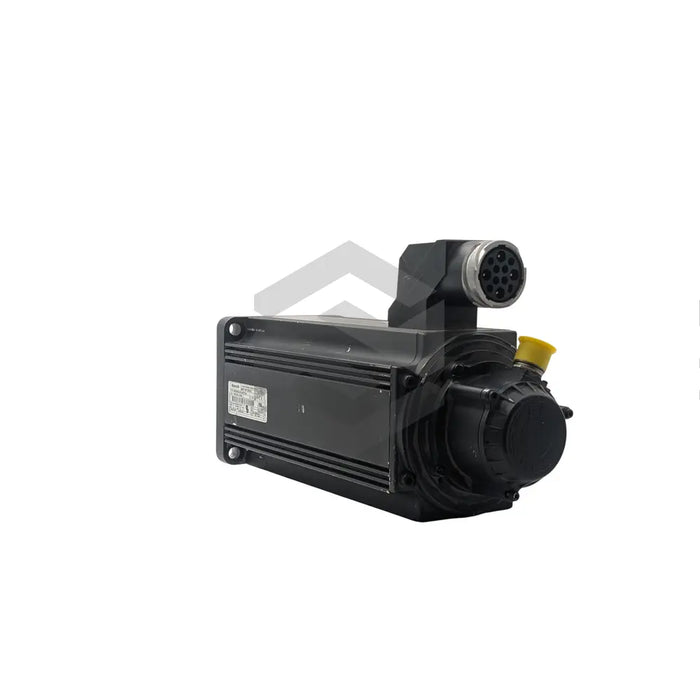

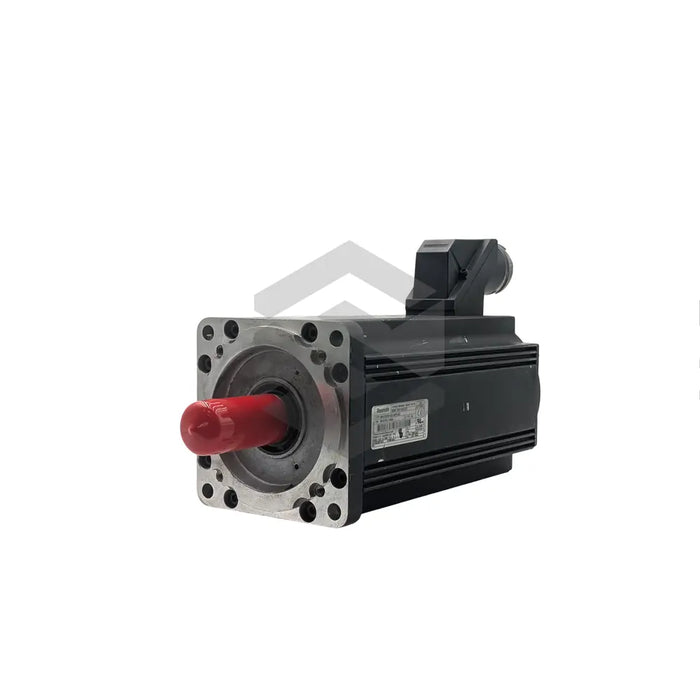

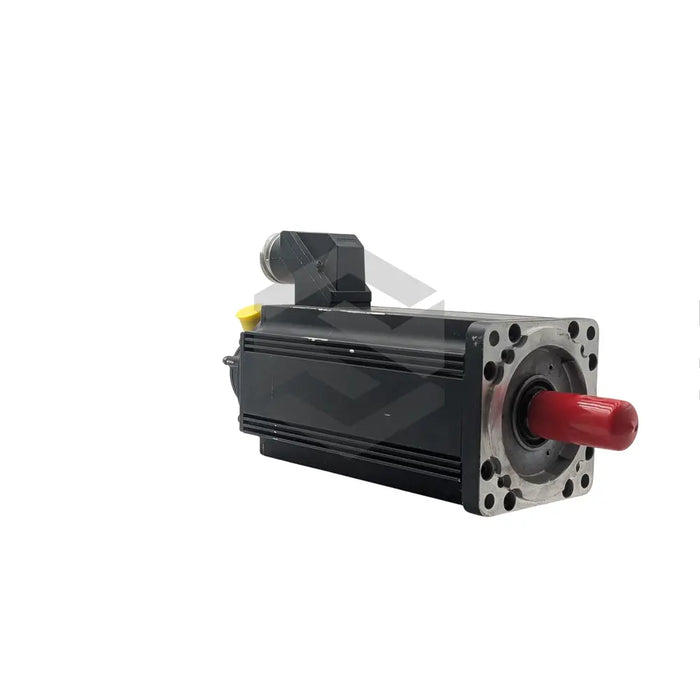

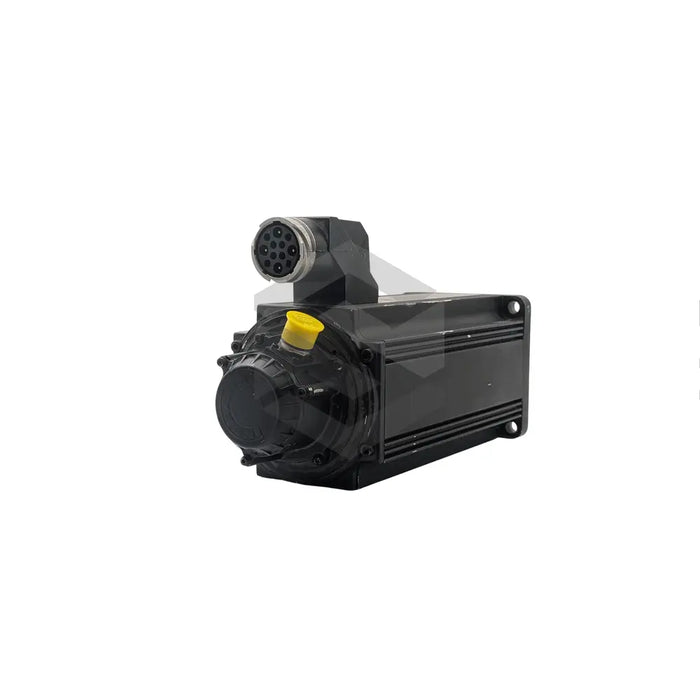

MHD093B-058-NP1-BA
The MHD093B-058-NP1-BA is a high-performing synchronous motor by Bosch Rexroth Indramat, renowned for its motion control devices. This model, employed extensively in the rapid-response motion control systems of international manufacturers, excels in high torque applications. Its brushless design and IP65 protection facilitate maintenance-free operation under severe load conditions. The motor's 24 VDC clamping brake reliably clamps the shaft when in a de-energized state, producing a clamping torque of 22 Nm. A continuous current consumption of 4.9 – 13.6 A results in the continuous torque of 5.4 – 15 Nm. It also delivers a rated performance of 1.7 – 4.1 kW at natural convection and 7.6 kW at natural cooling mode. The motor, possessing a thermal time constant of 30 – 60 min and four pole pairs, has a voltage constant of 79 V/1000 rpm and a torque constant of 0.87 Nm/A. It operates effectively within a temperature range of 0 to +40°C and weighs 19 kg, excluding brake and accessories.
