MHD093B-058-NP1-BN

Request a quote

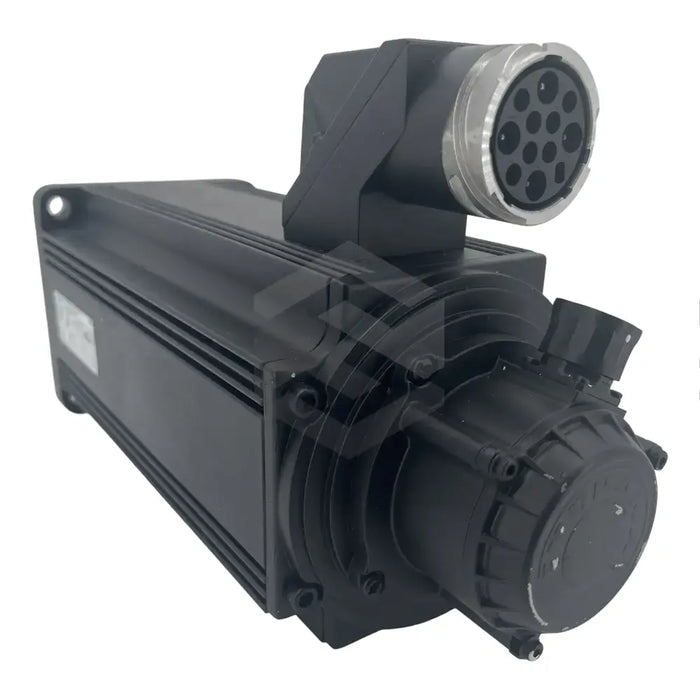

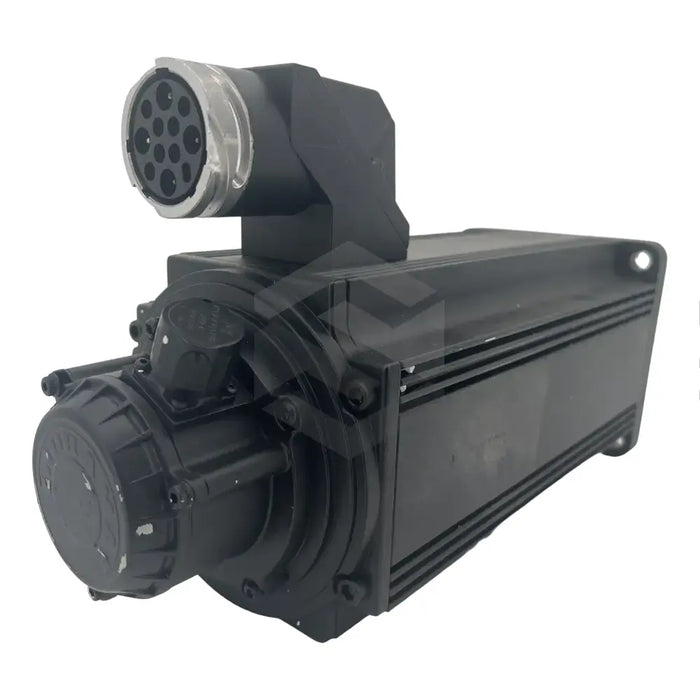

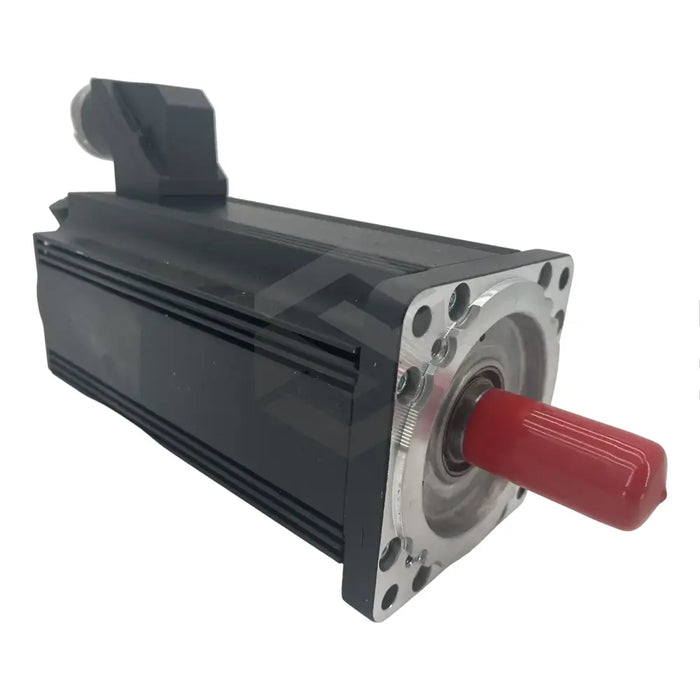

The MHD093B-058-NP1-BN is a state-of-the-art, synchronous motor produced by leading industrial automation manufacturer, Bosch Rexroth Indramat. This CE-certified motor, specifically designed for handling by highly-trained personnel, uses both natural and liquid cooling modes to maintain motor temperatures with housing and winding permissible limits of 60 K and 100 K respectively. The motor, also known as a permanent magnet motor with 4 pole pairs, comes equipped with a winding code of 058 which generates a resistance of 0.44 ohms and a winding inductivity of 3.2 mH. The MHD093 motor utilizes a B-side power connector, includes an inbuilt holding brake, and transmits a power range from 1.7 – 12.7 kW. It features digital servo feedback for relative position detection and can be installed in IMV1, IMV3, and IMB5 mounting positions under temperatures ranging from 0 to +40 degrees Celsius. It is protected under the IP65 protection standard, providing resistance against both solid particles and liquids.
30 Day Warranty
Technical Specifications
  • Product: MHD093B-058-NP1-BN
  • Manufacturer: Bosch Rexroth Indramat
  • Type: Synchronous Motor
  • Cooling Modes: Natural and Liquid
  • Permissible Temperature for Motor Housing and Winding: 60 K and 100 K
  • Torque Constant at 20 degree Celsius: 0.87 Nm/A
  • Pole Pairs: 4
  • Winding Code: 058
  • Resistance: 0.44 Ohms
  • Inductivity: 3.2 mH
  • Power Input: B-side Power Connector
  • Holding Brake: Installed
  • Power Transmission: 1.7 – 12.7 kW
  • Shaft: With Keyway
  • Position Detection: Digital Servo Feedback
  • Mounting Methods: IMV1, IMV3, and IMB5
  • Torque at 60/100-K Overtemperature: 33.3 Nm
  • Constant Current Consumption: 42.8 A
  • Installation Temperature Range: 0 to +40 degree Celsius
  • Protection Class: IP65.
