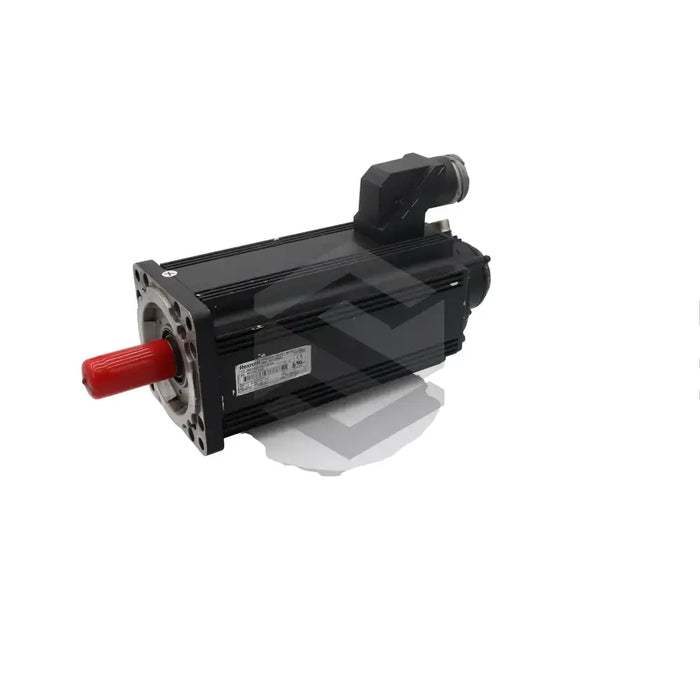

C image of MHD093B-058-PG0-BA | Main (Front Left)

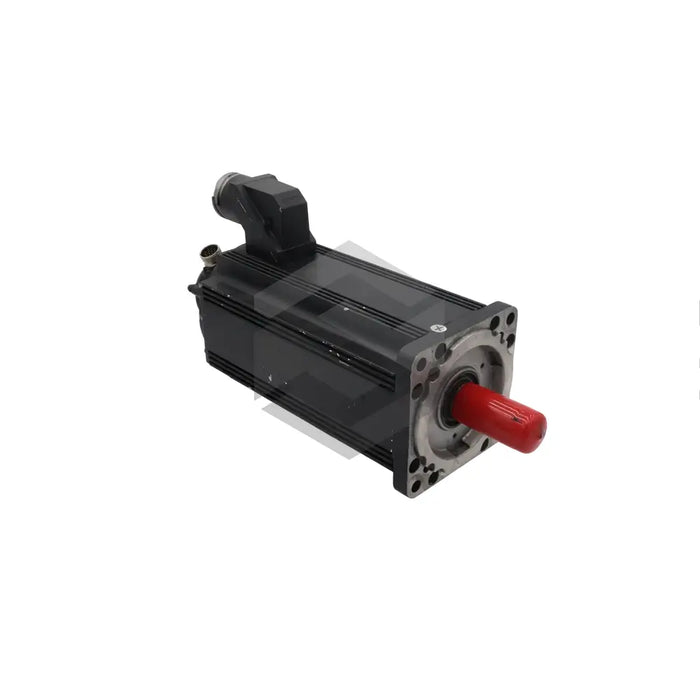

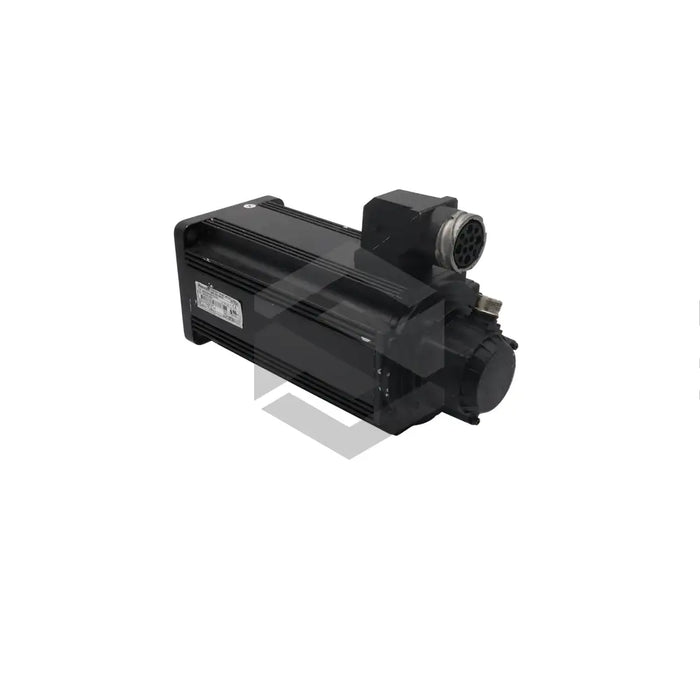

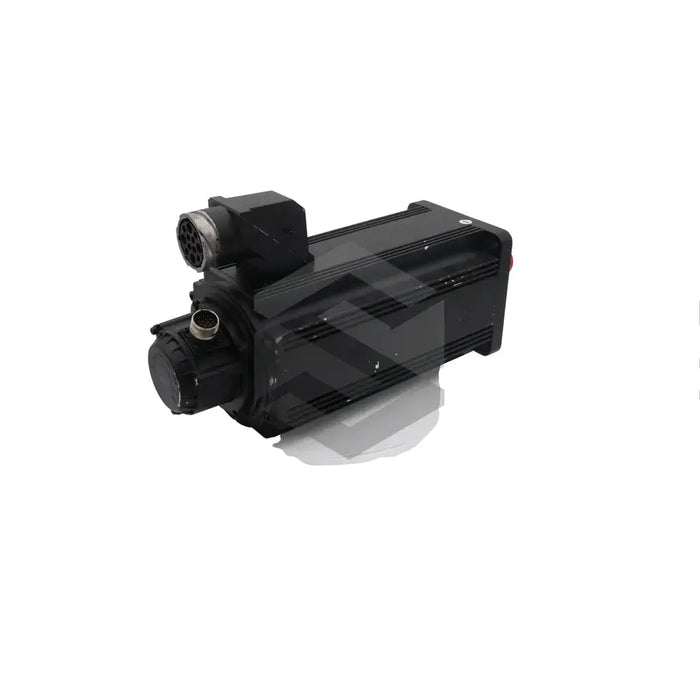

MHD093B-058-PG0-BA

by Bosch Rexroth Indramat
$955.90 - $21,383.25
$955.90
$955.90 - $21,383.25
$955.90

In Stock, Ships 1 - 3 Days

The MHD093B-058-PG0-BA is a prominent part of the MHD series of synchronous motors by Bosch Rexroth Indramat GmbH, a subsidiary of Robert Bosch Corporation Germany. Designed to facilitate various industrial processes including handling, packing, printing, and tooling, this servo motor stands out due to its maintenance-free operation. Its exceptional features encompass permanent magnet field excitation, electronic commutation, and lifetime lubricated bearings, which eliminate the need for routine upkeep. The motor operates at a nominal speed of 4000 rpm, with a length of 140/150 mm and centering diameter of 130 mm. Equipped with temperature sensors, this motor guards against overloading, effectively transferring and dispersing heat into the environment. It can operate under two temperatures (60K and 100K), has a peak current of 101.2 amperes, and holds four pole pairs. The MHD093B-058-PG0-BA, a brushless motor with a plain shaft, implements digital servo feedback with an installed multi-winding absolute coder and is designed for natural convection and surface cooling.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

MHD093B-058-PG0-BA

Product Category

Synchronous Motors

Applications

Handling, Packing, Printing, Tooling, and Others

Maintenance

Maintenance Free

Field Excitation

Permanent Magnet

Commutation

Electronic

Bearings

Lifetime Lubricated

Overload Control

Temperature Sensors in Stator Windings

Nominal Speed

4000 rpm

Length

140/150 mm

Centering Diameter

130 mm

Motor Over Temperature Conditions

60K and 100K

Peak Current

101.2 amperes

Pole Pairs

Four

Winding Type

058

Shaft

Plain

Feedback

Digital Servo with Installed Absolute Coder of Multi-winding

Holding Brakes

None

Power and Feedback Connection

B Side

Cooling

Natural Convection and Surface Cooling
