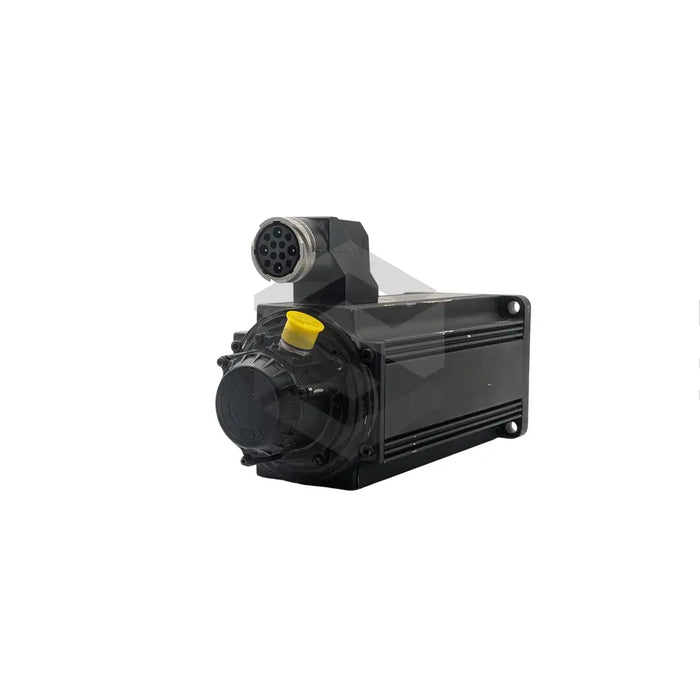

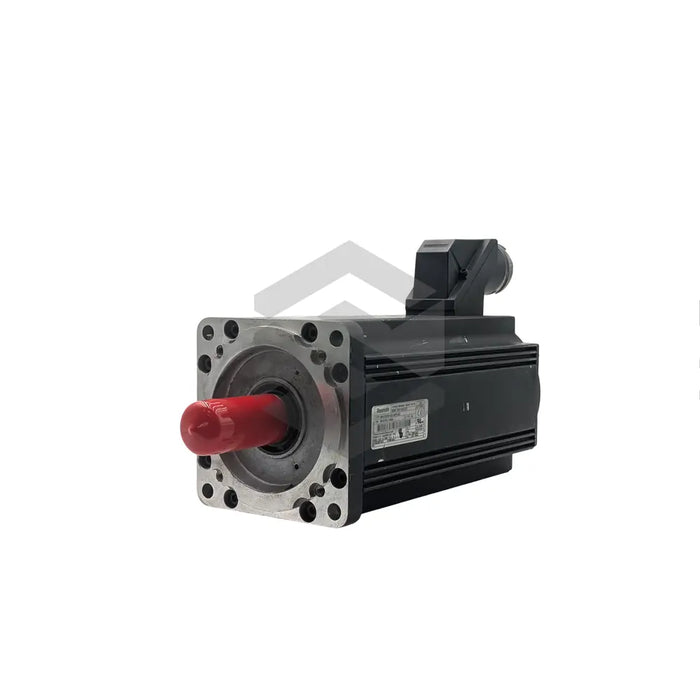

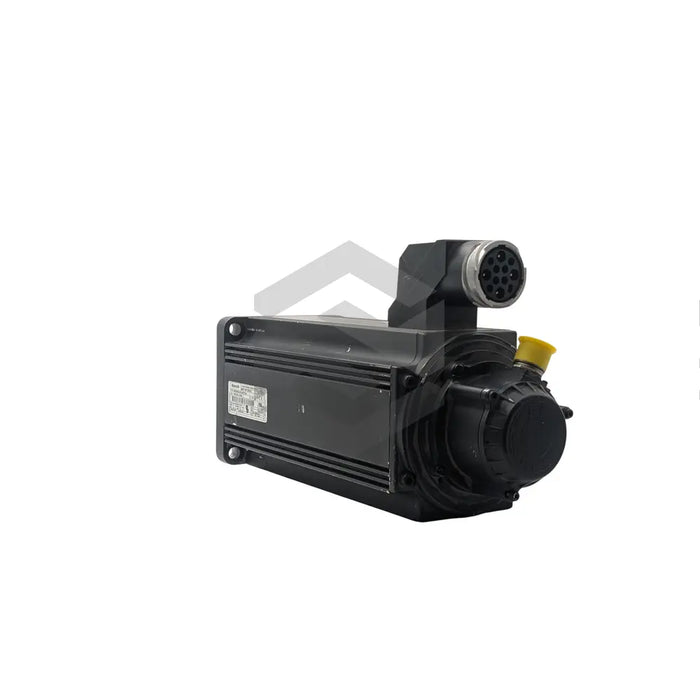

S image of MHD093B-058-PG1-LA

MHD093B-058-PG1-LA

by Bosch Rexroth Indramat
$955.90 - $19,941.68
$955.90
$955.90 - $19,941.68
$955.90

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MHD093B-058-PG1-LA is a sophisticated synchronous servo motor, equipped with digital servo feedback capabilities and an integrated multiturn absolute encoder. This encoder excels in applications requiring the monitoring of rotational data and coordination of offset axes. The motor offers a generously-sized flange measuring 140/150mm, a motor shaft diameter of 32mm, and length of 356mm. It has an IP65 protection rating, thanks to a well-designed housing fostering natural convection and surface cooling, and a sealed shaft. The MHD093B-058-PG1-LA features a 24V DC, 22Nm-rated holding brake. Its performance metrics include: a rated speed of 2500 RPM, rated torque of 5.4Nm, rated current of 4.9Amp, and rated voltage of 200 Volts - with a maximum motor torque value of 66Nm. For optimal operation, it's recommended for use in ambient temperatures ranging from 0 to 40 degrees Celsius.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Synchronous Servo Motor

Model

MHD093B-058-PG1-LA

Feedback

Integrated Digital Servo Feedback

Encoder

Integrated Multiturn Absolute Encoder

Cooling

Natural Convection/Surface Cooling

Protection Rating

IP65

Inspection Requirement

Check/Replace Sealing Ring

Flange Size

140/150 Millimeters

Centering Diameter

130 Millimeters

Shaft Diameter

32 Millimeters

Motor Length

356 Millimeters

Shipping Weight

19 Kilograms

Power Connector Position

Left Side

Holding Brake

22 Nm @24 Volts DC

Rated Speed

2500 RPM

Rated Torque

5.4 Nm

Rated Current

4.9 Amps

Rated Voltage

200 Volts

Maximum Torque

66 Nm

Motor Time Constant

60 Minutes

Power Connection Wire Cross-Section

Minimum 2.5 mm2

Ambient Working Temperature

0 to 40 Degrees Celsius
