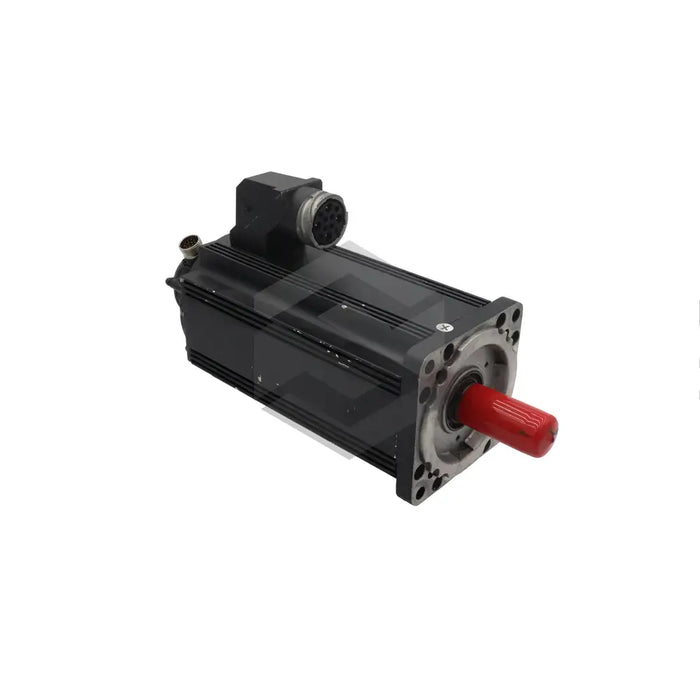

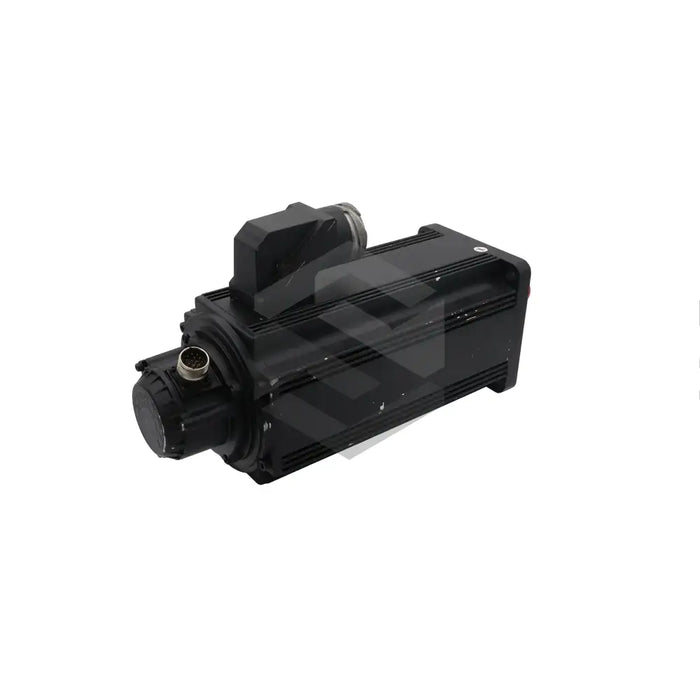

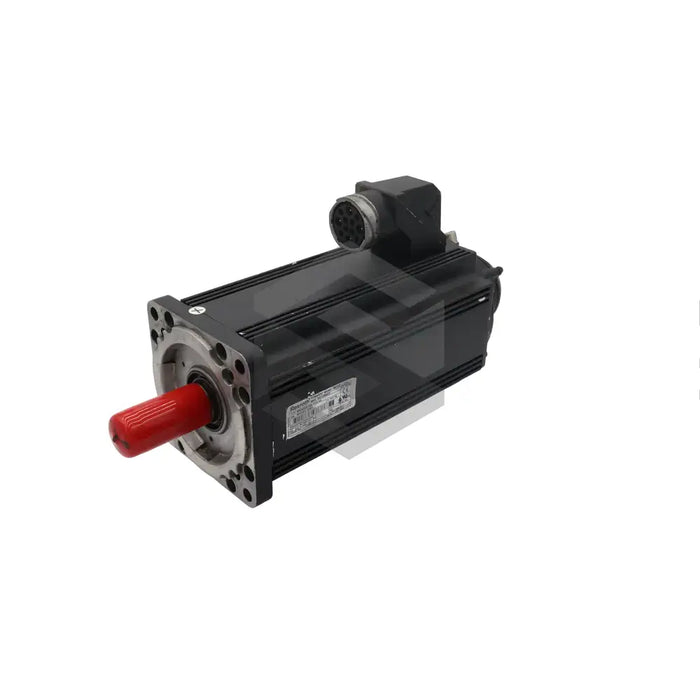

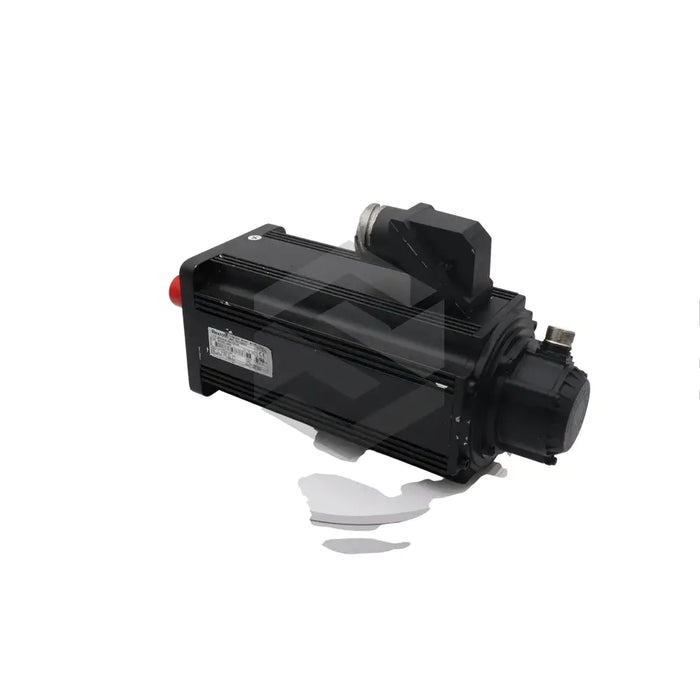

C image of MHD093B-058-PP0-AA | Main (Front Left)

MHD093B-058-PP0-AA

by Bosch Rexroth Indramat
$955.90 - $21,383.25
$955.90
$955.90 - $21,383.25
$955.90

In Stock, Ships 1 - 3 Days

The MHD093B-058-PP0-AA is a superior, compact servo motor produced by Bosch Rexroth Indramat, renowned for their top-tier engineering products. This member of the MHD servo motors family effortlessly pairs with Bosch Rexroth’s digital intelligent drive controllers to form efficient automation systems for industries like printing, paper, and food packaging. Key attributes of this AC servo motor include its compact, space-efficient structure and an optimized design for maintenance-free operation. Recognized for high radial load handling, the motor uses long-lasting, grease-lubricated bearings with a certified service life of 30,000 h per DIN ISO 281. Its brushless construction achieves a top speed of 6000 RPM and a theoretical torque of 66.0Nm. The motor also features a digital servo feedback with an integrated multiturn absolute encoder for easy start-up, and a shaft per DIN 6885-1 with a sealing ring for driving machine elements.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

MHD servo motors

Product Model

MHD093B-058-PP0-AA

Design

Brushless

Bearings

Grease-lubricated

Nominal Service Life of Bearings

30,000 h according to DIN ISO 281

Suitability

Designed for high radial loads

Maximum Speed

6000 rotations per minute

Theoretical Maximum Torque

66.0Nm

Pole Pairs

4

Rotor Moment of Inertia

25.5 x 10-4 kgm2

Winding Code

058

Motor Feedback

Digital servo feedback with integrated multiturn absolute encoder

Data Memory

Yes, for quick start up

Shaft Type

Shaft with key per DIN 6885-1 and shaft sealing ring

Cooling Method

Natural convection or surface cooling

Installation Position

Any desired
