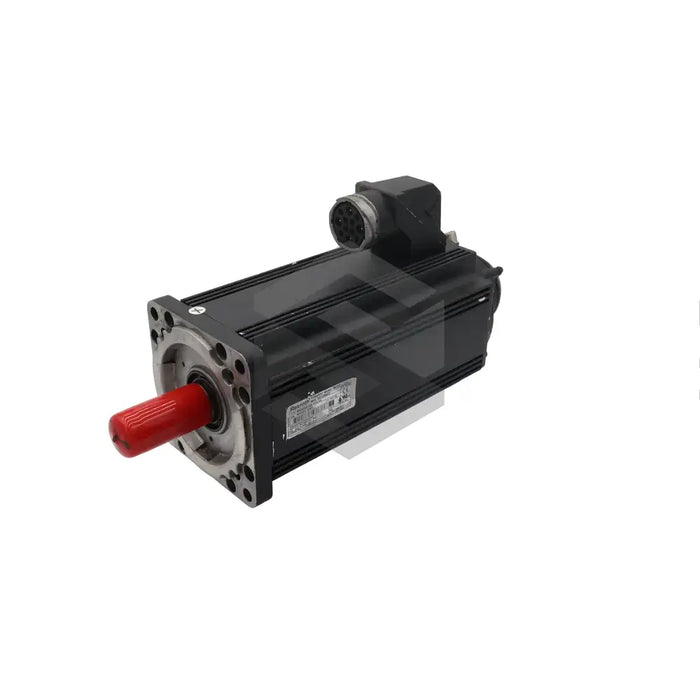

C image of MHD093B-058-PP0-AN | Main (Front Left)

MHD093B-058-PP0-AN

by Bosch Rexroth Indramat
$955.90 - $21,383.25
$955.90
$955.90 - $21,383.25
$955.90

In Stock, Ships 1 - 3 Days

The MHD093B-058-PP0-AN is a synchronous motor produced by Bosch Rexroth Indramat, under the MHD series, known for its cost-effectiveness and use in automation systems. A significant feature of this motor is its inclusion of a "Multiturn Motor Encoder". This motor excels primarily in load-carrying tasks for operations such as presses and punches. It is suggested that the motor be installed in a manner that can absorb shock, and electrical connections must adhere to specified standards. This device operates optimally at a characteristic speed of 4000/min, a rated speed of 3500/min and a rated operating frequency of 233 Hz, while its rated torque spans from 4.5 to 19.3 Nm. The MHD093B-058-PP0-AN functions efficiently within a temperature range of 0°C to 40°C and at heights not exceeding 1000 meters above MSL. This motor, weighing 14.5 kg, promises optimal performance when utilized within these suggested parameters.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

MHD synchronous motor

Motor Type

Permanent magnet motor

Included Feature

Multiturn Motor Encoder

Common Use

Handle loads, presses, punches, or when inlets are pressed

Attachment Style

Shock-absorbent

Electrical Connections

Standardized power connector and encoder connection

Characteristic Motor Speed

4000 per minute

Rated Speed

3500 per minute

Peak Current

57.6 Ampere

Rated Current

3.4 Ampere to 14.6 Ampere

Rated Torque

4.5 Newton meters to 19.3 Newton meters

Rated Voltage

325 Volts to 366 Volts

Current and Voltage Type

Root mean square values

Rated Operating Frequency

233 Hertz

Winding Inductivity

6.9 miliHenry

Weight

14.5 kilograms

Operating Temperature

0 degrees Celsius to 40 degrees Celsius

Mounting Height

1000 meters above MSL
