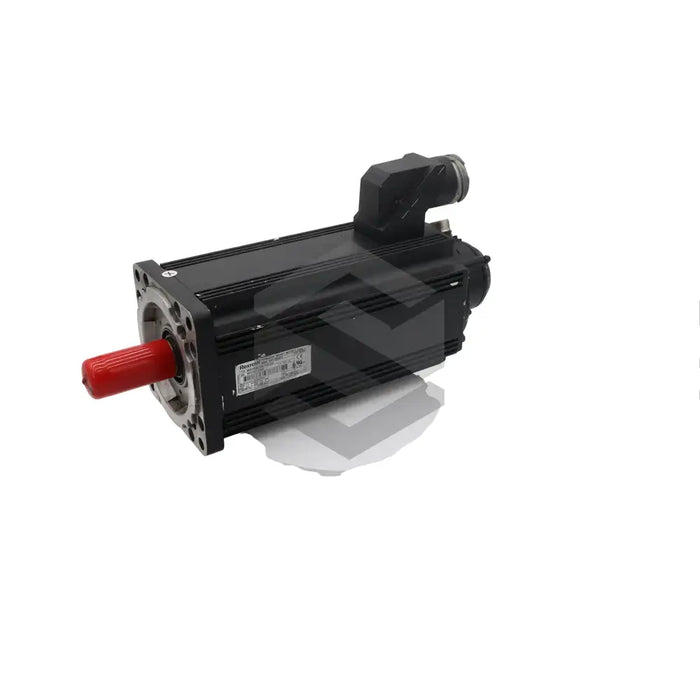

C image of MHD093B-058-PP0-BA | Main (Front Left)

MHD093B-058-PP0-BA

by Bosch Rexroth Indramat
$955.90 - $21,383.25
$955.90
$955.90 - $21,383.25
$955.90

In Stock, Ships 1 - 3 Days

The MHD093B-058-PP0-BA is a low-inertia, permanent-magnet synchronous motor by Bosch Rexroth Indramat. Renowned for its influence on the global drive and motion control market, Bosch Rexroth's MHD series stands out for its diverse benefits, including high operational reliability, easy cabling, and wide range of speed. The MHD093B-058-PP0-BA, specifically, is well-suited for high-dynamic operations due to its optimal torque to inertia mass ratio. Enhanced by effective heat dissipation, the motor can tolerate overloads and function in adverse conditions, thanks to its fully enclosed design and IP 65 rating for dust, shock, and water jet resistance. The motor's feedback system consists of a digital servo feedback with an integrated multiturn absolute encoder, facilitating precise control of speed and position. Boasting a peak current rating of 101.2A and a maximum speed of 6,000 rpm, the output shaft comes with a DIN 6885-1 compliant key, a shaft sealing ring, and can be cooled naturally or via surface cooling.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

MHD series of synchronous motors

Type

AC Servo Motors

Motor Model

MHD093B-058-PP0-BA

Flange Size

150mm

Centering Diameter

130mm

Housing

Completely closed

Protection Rating

IP 65

Feedback System

Digital servo feedback with integrated multiturn absolute encoder

Peak Current Rating

101.2A

Maximum Speed

6,000 rotations per minute

Output Shaft

One with a key per DIN 6885-1 and shaft sealing ring

Cooling Method

Natural convection or surface cooling

Torque to Inertia Mass Ratio

High

Overload Capability

High due to effective heat dissipation

Suitable Applications

Automation and handling machines, printing and paper processing machines, food processing and packaging machines.
