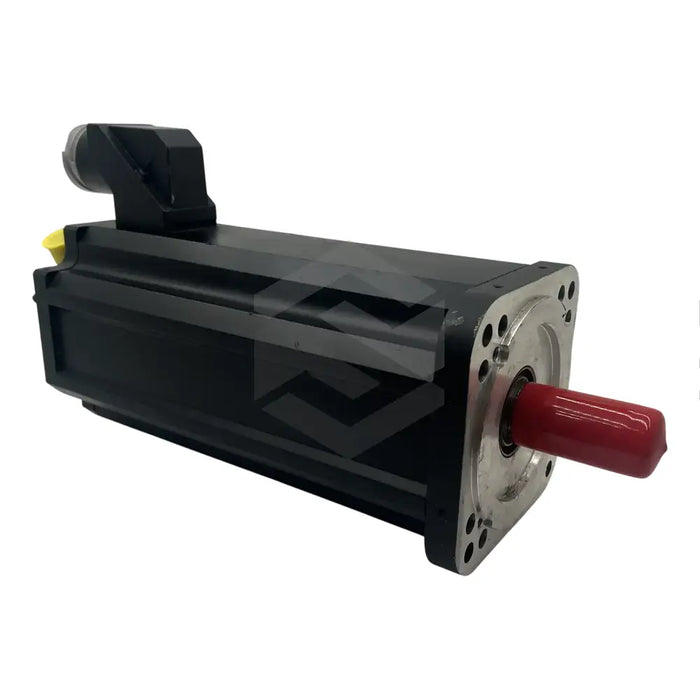

C image of MHD093C-024-NP1-BA | Front Right

MHD093C-024-NP1-BA

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The MHD093C-024-NP1-BA is a synchronous motor engineered by Bosch Rexroth Indramat, recognized for its high-performance industrial automation components. This motor is specifically designed according to EN and UL standards, possessing an IP65 protection category rating. Its dimensions include a 130 mm centering diameter and B05 flange mounting for seamless integration into industrial machinery. The MHD093C-024-NP1-BA is renowned for its dynamic design that supports continuous start-stop operations, operating at a rated voltage between 320 – 339 VAC at a frequency of 133 Hz. Equipped with a radial or axial blower for surface cooling and a motor holding brake, this model operates in a wide range of settings, even those with high humidity, thanks to its class-F insulation. Other characteristics include a temperature monitoring sensor, digital servo feedback for relative position detection, 4 pole pairs, and a B-side power connector. It produces a continuous torque of 11.4 - 17.4 Nm when naturally convected, and 27.4 Nm when surface cooled.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

MHD093C-024-NP1-BA

Protection Category

IP65

Design Standards

EN and UL

Centering Diameter

130 mm

Flange Mounting

B05

Motor Type

MHD093 Synchronous Motor

Rated Voltage

320 – 339 VAC

Rated Frequency

133 Hz

Cooling Method

Radial or Axial Blower Unit

Cooling Unit Input Voltage

AC 115 – 230 V

Cooling Unit Input Frequency

50 – 60 Hz

Motor Holding Brake

24 VDC

Holding Torque

22 Nm

Motor Color

Black

Operation Condition

Humid Climatic conditions

Insulation Class

Class-F

Power Connector Position

B-side

Temperature Monitoring

Yes

Winding Inductivity

9.15 mH

Pole Pairs

4

Continuous Torque (Natural Convection)

11.4 – 17.4 Nm

Continuous Torque (Surface Cooling)

27.4 Nm

Continuous Current Draw

4.9 – 7.8 A and 12.1 A

Feedback Type

HSF (digital servo feedback)

Shaft Type

Shaft with a Key

Ordering Information

Available for order from Servo Supplier.
