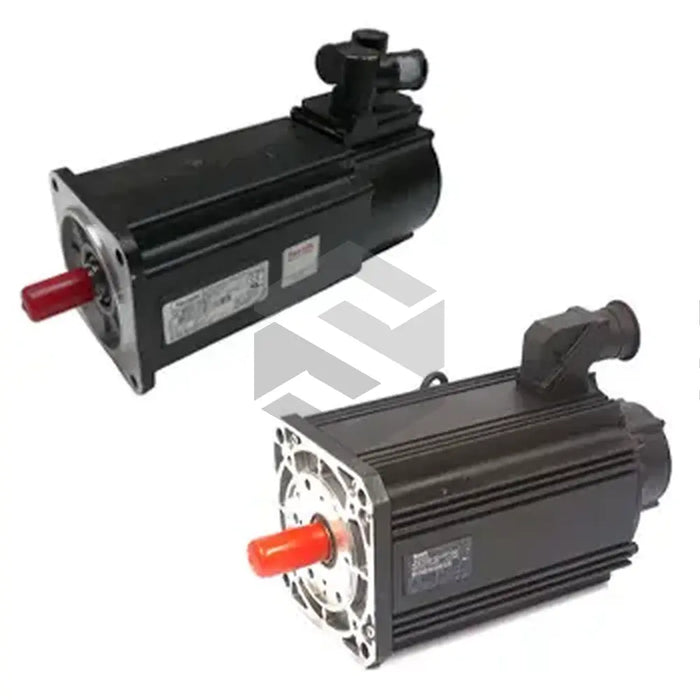

series image of MHD093C-035-NG1-BN

MHD093C-035-NG1-BN

by Bosch Rexroth Indramat
$29,959.63 - $29,959.63
$29,959.63
$29,959.63 - $29,959.63
$29,959.63
In Stock, Ships Today
The MHD093C-035-NG1-BN is a robust industrial synchronous motor designed by Bosch Rexroth Indramat, adaptable to a variety of demanding industrial environments and capable of operating over a wide speed range. Adherence to operation instructions is crucial for safety and to avoid adverse effects on the servo system. Performance varies with motor temperature: under a housing temperature of 60K it functions with a continuous current of 18.5A and provides an output torque of 23Nm; at a winding temperature of 100K, it uses a rated current of 24.5A and generates an output torque of 28Nm. The motor's characteristic speed is 3000 RPM, with a maximum of 4500 RPM when drawing an input current of 63.5A. It incorporates an electrically releasing holding brake which operates at 0.71A, providing a holding torque of 22Nm. The plain shaft design features a sealing ring for seamless energy transmission.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Industrial Synchronous Motor
  • Model: MHD093C-035-NG1-BN
  • Operating Conditions: Unfavorable Industrial Conditions
  • Speed Range: Broad
  • Safety: High (operation according to documentation)
  • Operating Current: 18.5 amperes (at 60K housing temperature), 24.5 amperes (at 100K winding temperature)
  • Output Torque: 23-newton meters (at 60K housing temperature), 28-newton meters (at 100K winding temperature)
  • Characteristic Speed: 3000 revolutions per minute
  • Maximum Speed: 4500 revolutions per minute (at 63.5 amperes input current)
  • Additional Features: Electrically Releasing Holding Brake
  • Brake Operating Current: 0.71 Amperes
  • Brake Holding Torque: 22-newton meters
  • Shaft Design: Plain Shaft with Sealing Ring
