MHD093C-035-PG1-LA

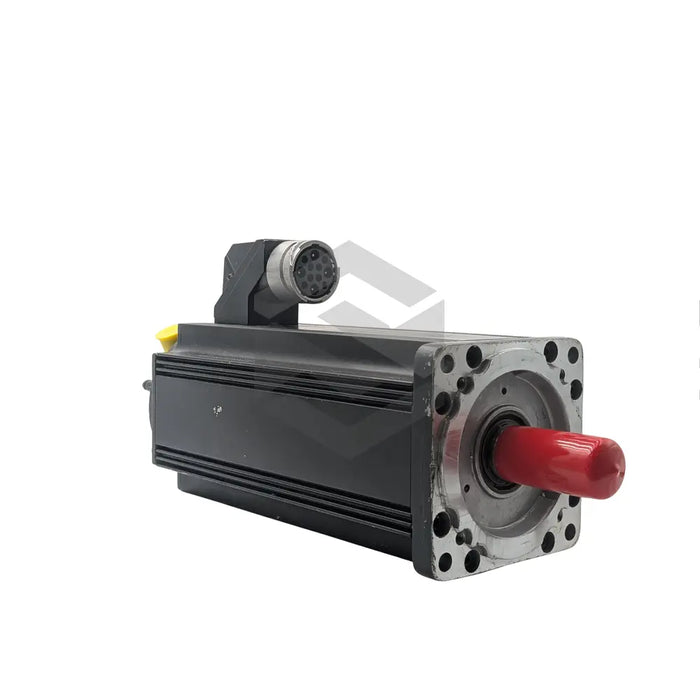

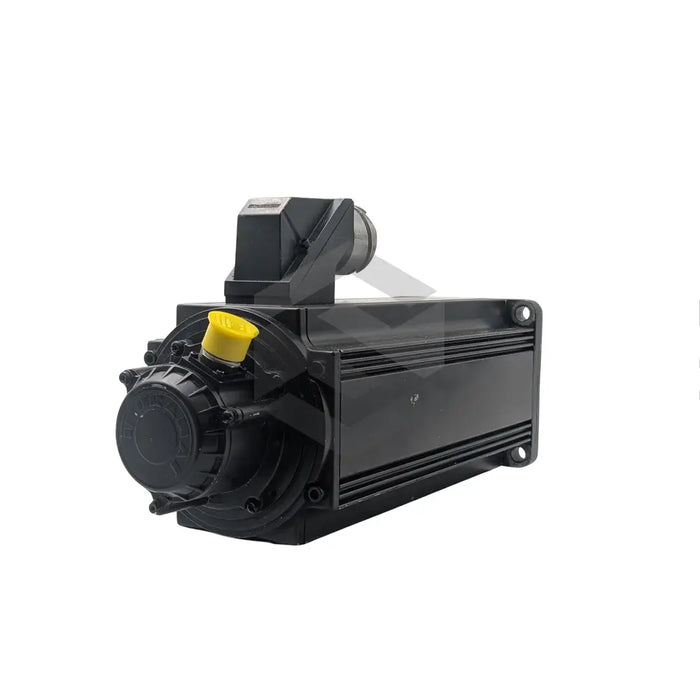

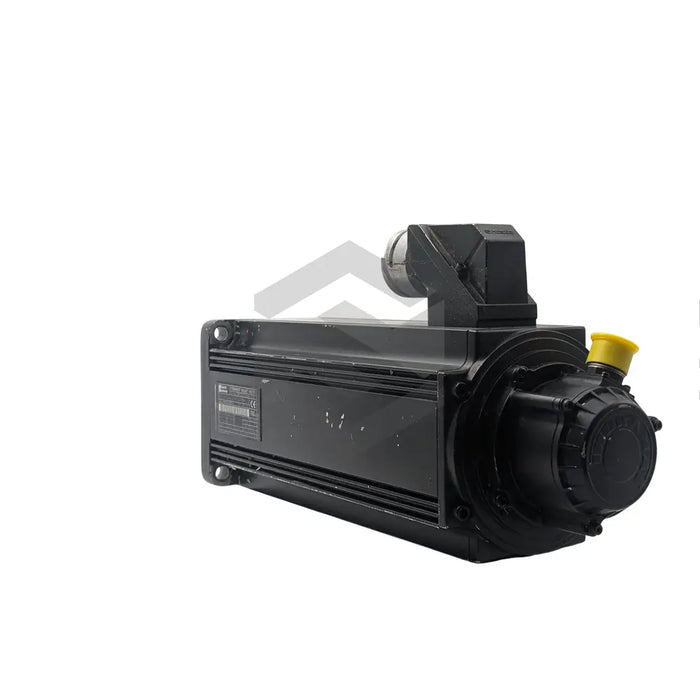

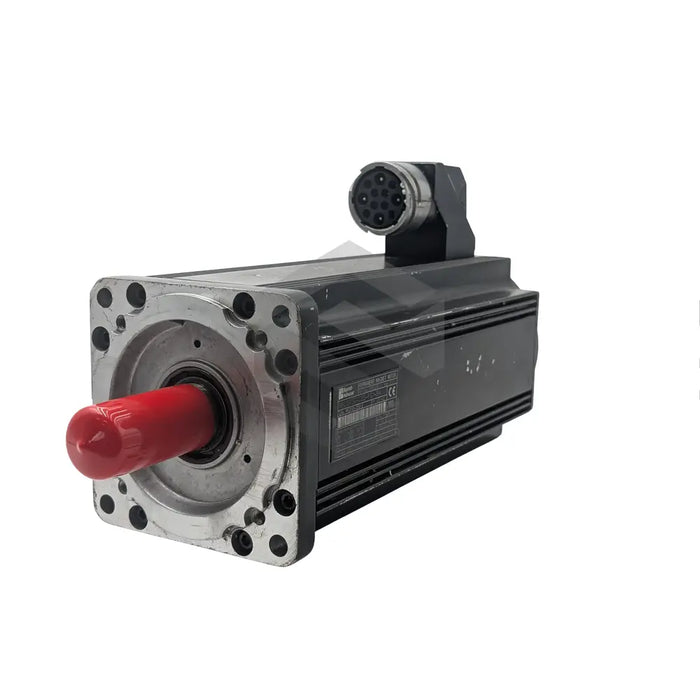

The Bosch Rexroth Indramat MHD093C-035-PG1-LA is a state-of-the-art, synchrous motor from the MHD series that is future-proof, reliable, and maintenance-free. Equipped with permanent magnet materials and electrical commutation, it provides optimal performance for extreme load conditions, including continuous start-stop operations with high repeat frequencies. The powerful motor uses digital servo feedback with an integrated multiturn absolute encoder, which delivers accurate speed and position control. Additional features include a centering diameter of 130mm, a nominal speed of 2,500 revs/minute, a maximum torque of 88.0 Nm, and 4 pole pairs. It sports a protective prime coat black a/w RAL 9005, which guards against harmful environmental and chemical exposures. Built-in temperature sensors protect against overload situations while its casing ensures dust, shock, and waterproofing with an IP 65 rating. For added convenience, the motor can be installed in any position and offers user-friendly cabling options.
