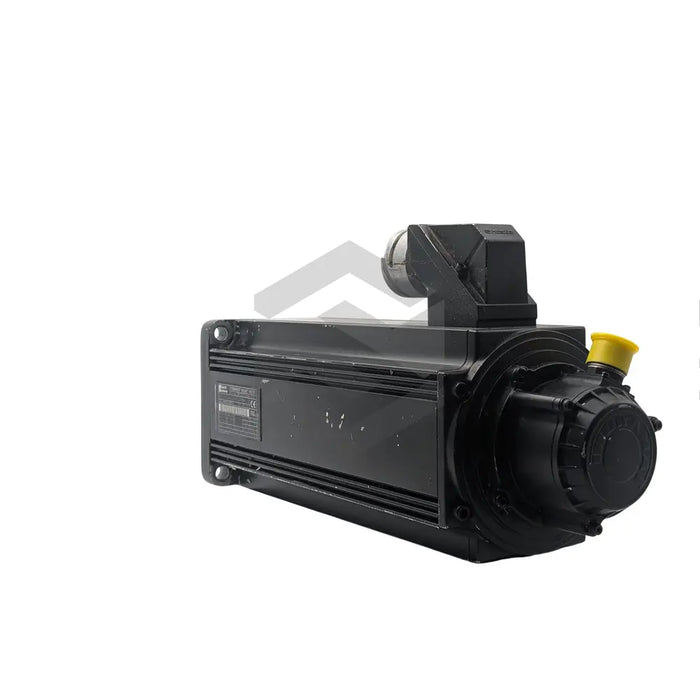

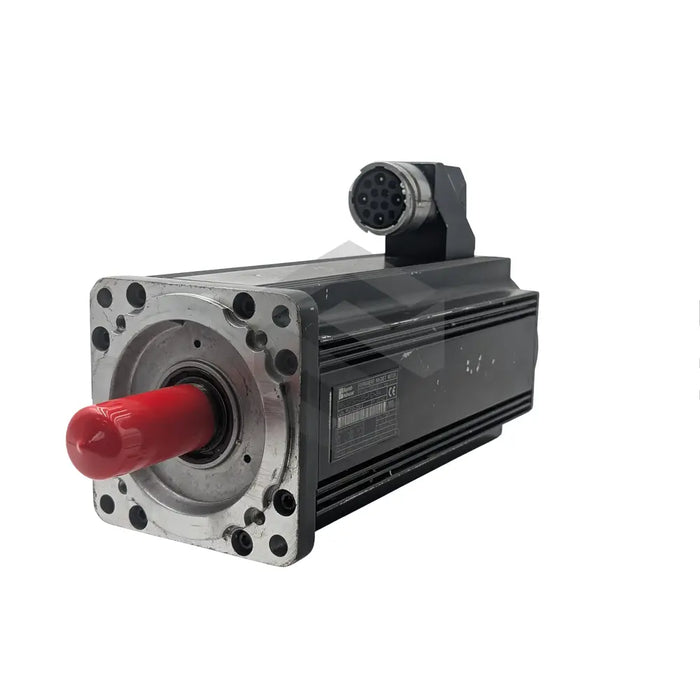

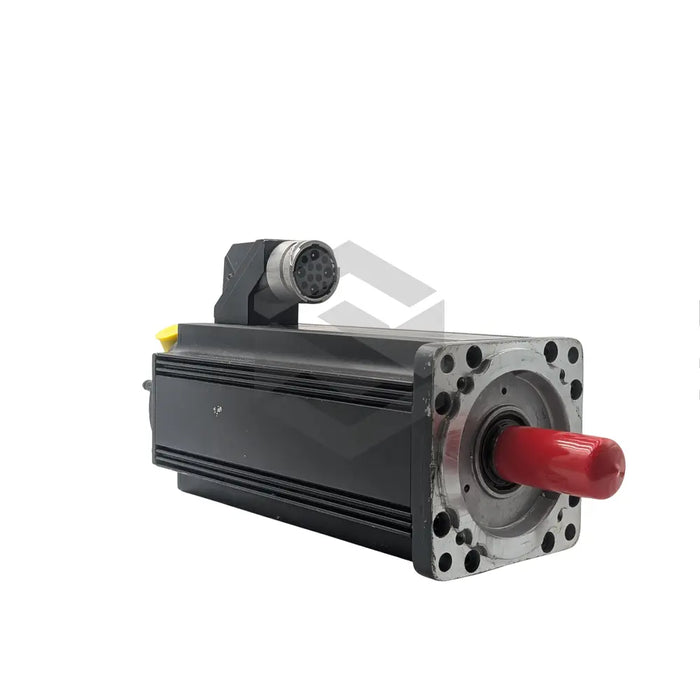

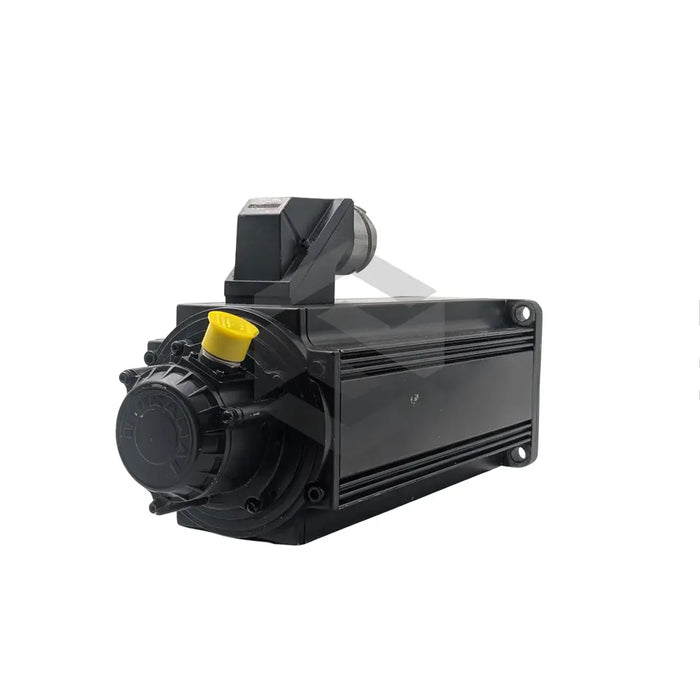

C image of MHD093C-058-NG0-RA | Main (Front Left)

MHD093C-058-NG0-RA

by Bosch Rexroth Indramat
$13,704.76 - $23,777.60
$13,704.76
$13,704.76 - $23,777.60
$13,704.76

In Stock, Ships 1 - 3 Days

The MHD093C-058-NG0-RA, a product from Bosch Rexroth Indramat, is a MHD series servo motor designed to integrate with a drive controller, forming a closed-loop control system suited for various industrial tasks such as machine tools and packaging. Boasting high reliability, overload protection, easy installation, and continuous start-stop operation, this motor comes with numerous benefits. MHD093C-058-NG0-RA is a permanent-magnet motor equipped with electronic commutation and flaunts a centering diameter of 130mm along with a flange size of 140mm. Including an end-sided centering hole, the motor shaft is plain and secured with a seal that prolongs the motor's lifespan. It comes without a holding brake but one can be ordered separately. The IP65-rated housing ensures dust and liquid protection. Assembly highlights left-side power connector, surface cooling, and a top speed of 4500 RPM. Weighing about 23.5 kg, this insulation category F motor displays a matte black exterior.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

MHD Series Servo Motor

Feedback System

Digital Servo

Applications

Machine Tools, Handling, Automation, Packaging Machines

Benefits

High Reliability, Maintenance-Free Operation, Overload Protection, High Dynamics, Continuous Start-Stop Operation, Easy Installation

Motor Type

Permanent-Magnet with Electronic Commutation

Centering Diameter

130 Millimeters

Motor Flange Size

140 Millimeters

Frame Length

093

Continuous Torque at Standstill

23 Nm

Shaft Type

Plain with End-Sided Centering Hole with DC Thread according to DIN 332

Seal

Yes

Protection Rating

IP65

Power Connector Placement

Left Side

Holding Brake

No

Cooling

Surface Cooling or Natural Convection

Max Speed

4500 RPM

Rated Speed

2500 RPM

Weight

23.5 Kilograms

Insulation Category

F

Housing Color

Matte Black
