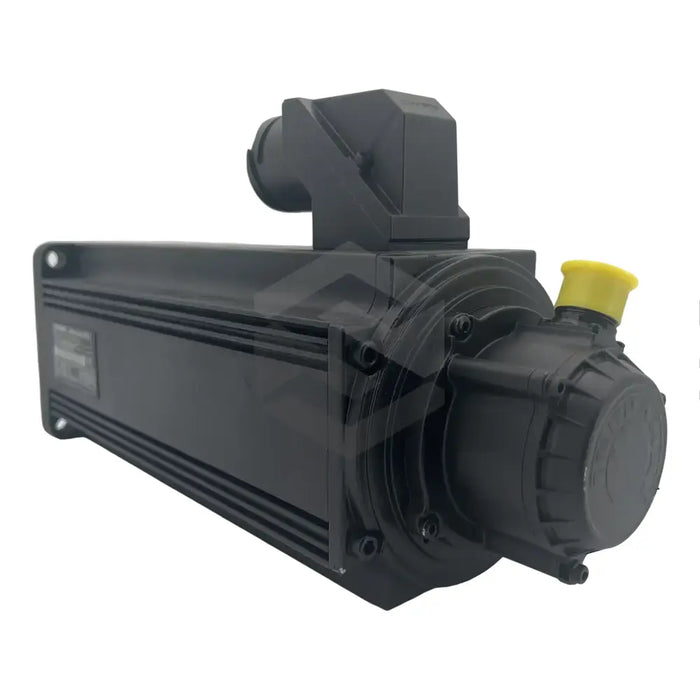

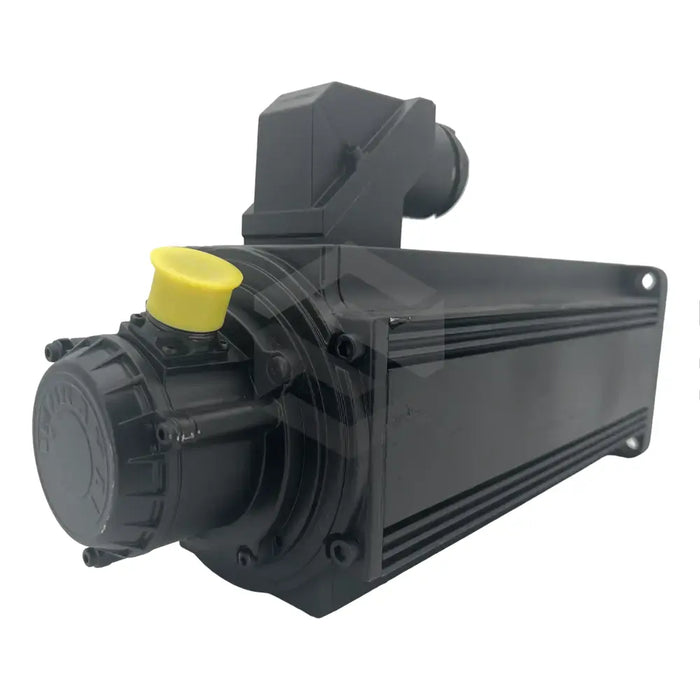

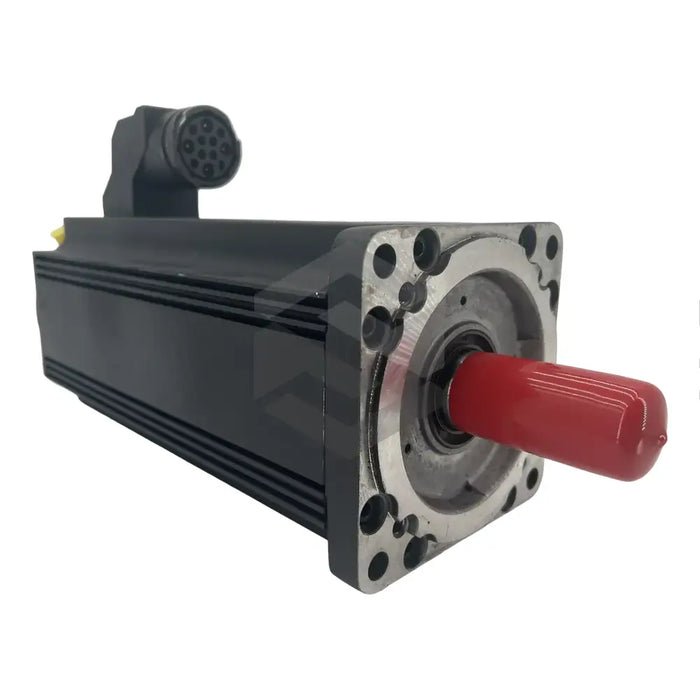

C image of MHD093C-058-NP1-AA | Front Right

MHD093C-058-NP1-AA

by Bosch Rexroth Indramat
$14,626.18 - $22,201.67
$14,626.18
$14,626.18 - $22,201.67
$14,626.18

In Stock, Ships 1 - 3 Days

The MHD093C-058-NP1-AA, manufactured by Bosch Rexroth Indramat, is a servo motor with unique features similar to other motors in the MHD series. It possesses a 'C' motor length, 093 full motor size, and a 058 winding code. The motor encoder, offering a 22Nm holding brake, utilizes digital servo feedback to relay signals to the drive controller. A key per DIN6885-1 and a shaft sealing ring are included with the shaft. The housing is suitable for natural convection or surface cooling with an A side connector. It provides four cooling and motor over-temperature options: Natural 60K, Natural 100K, Surface 60K/100, and Liquid 60K/100, each with their respective parameters. The MHD093C-058-NP1-AA is designed for optimal performance with a maximum speed of 6000min–¹, peak current of 127.4A, four pole pairs, and a rotor moment of inertia of 3.0×10–⁴. It is insulated to an F class in compliance with DIN VDE 0530 Part 1.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacture

Bosch Rexroth Indramat

MHD-series

MHD093C-058-NP1-AA

Motor Length

C

Motor Size

093

Winding Code

058

Motor Encoder

Digital Servo Feedback

Holding Brake

22Nm

Shaft

With shaft sealing and key per DIN6885-1

Connector

A Side

Housing

Natural Convection or Surface Cooling

Info Parts 1

Electrical Parameters

Info Parts 2

Mechanical Parameters

Types of Cooling

Natural 60K/Natural 100K/Surface 60K/100/Liquid 60K/100

Continuous Torque

23Nm/28Nm/34.5Nm/43.7Nm

Continuous Current

28.3A/34.5A/42.5A/53.8A

Motor Speed

4000min–¹

Peak Current

127.4A

Torque Constant

0.91Nm/A

Voltage

82.7v/1000min–¹

Minimum Strand Cross-Section

2.5mm²/6.0mm²

Time Constant

75m/35m/25m

Moment of Inertia Rotor

3.0×10–⁴ kgm²

Maximum Torque

88Nm

Maximum Speed

6000min–¹

Motor Mass

23.5kg

Installation Altitude

1000m above sea level

Operating Temperature

0-40°C

Protection Class

IP65

Insulation

Class F.
