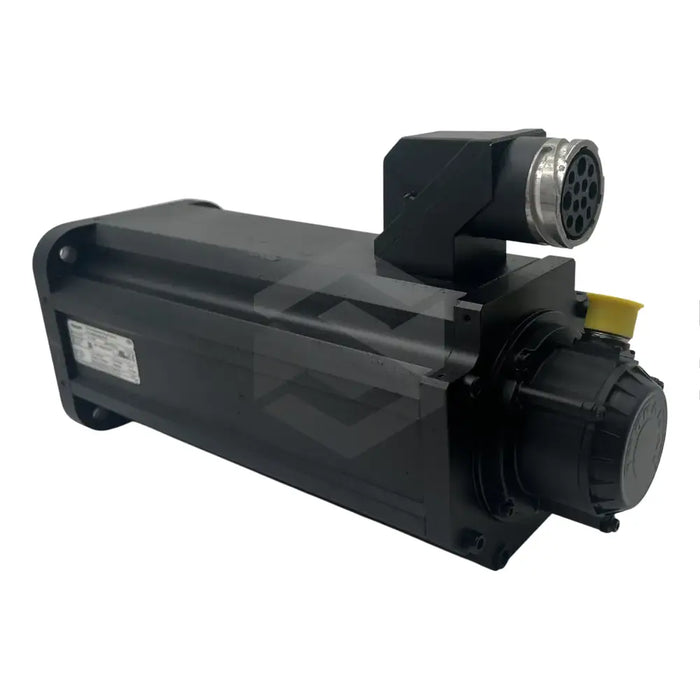

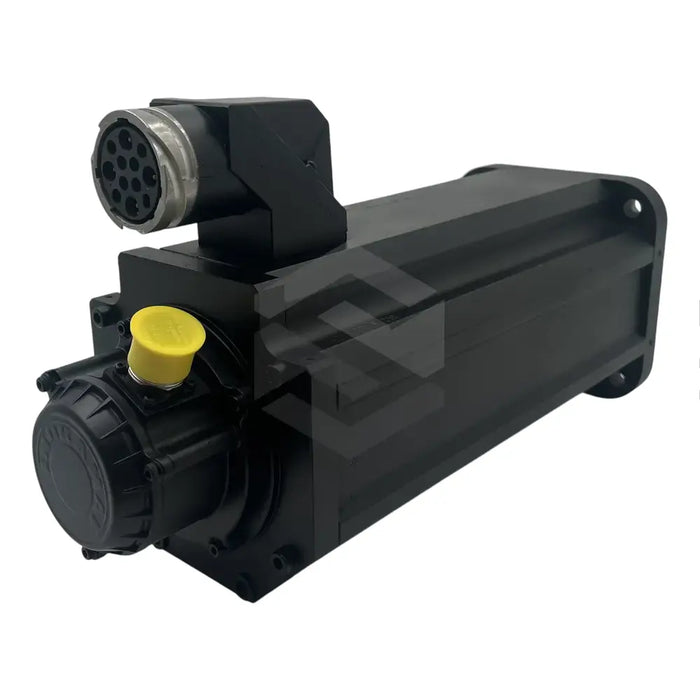

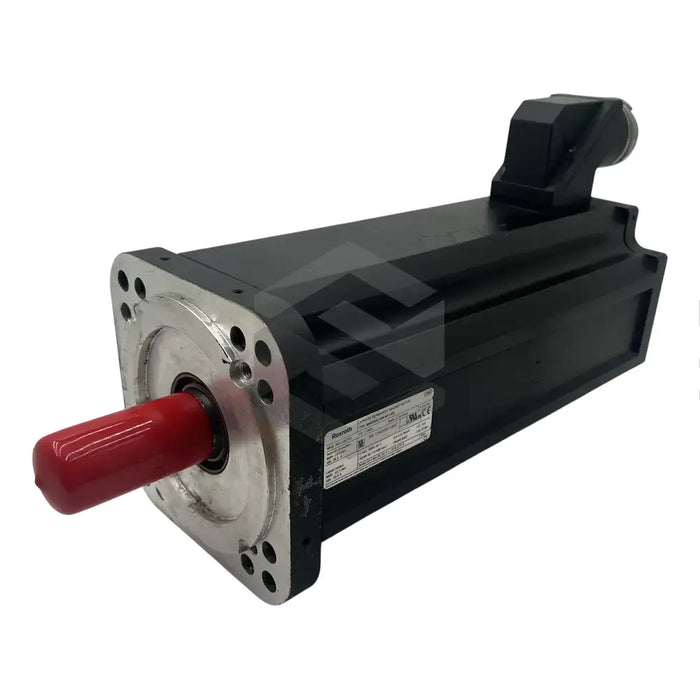

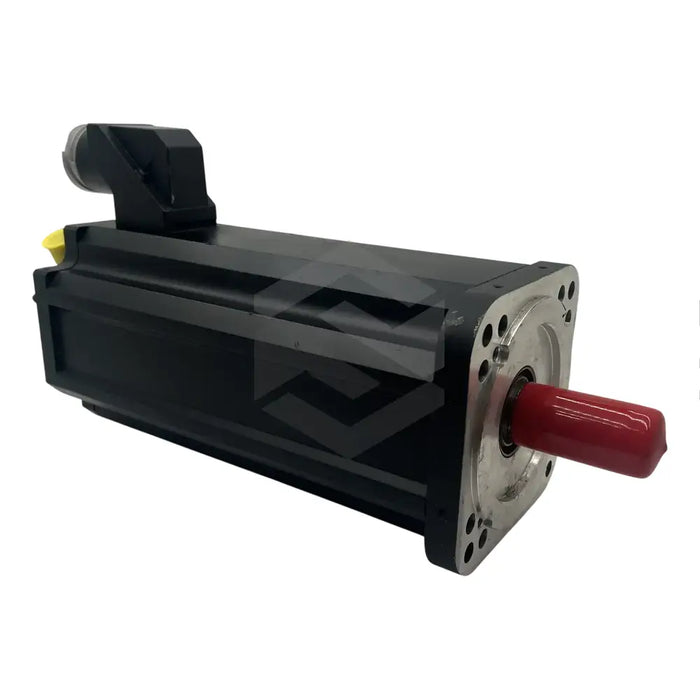

series image of MHD093C-058-NP1-BN

MHD093C-058-NP1-BN

by Bosch Rexroth Indramat
$30,075.05 - $30,075.05
$30,075.05
$30,075.05 - $30,075.05
$30,075.05
Available, Shipping Varies
Bosch Rexroth's MHD093C-058-NP1-BN is a model in their MHD Synchronous motor series, boasting a 22Nm holding brake for controlled deceleration. With a liquid-cooled housing design, this motor supports natural convection and is specifically sized at 093, following type 'C' length. It features a digital servo feedback and a key shaft compliant with DIN6885-1 and a sealing ring. Tested in several environments, it has varying parameters for continuous torque, continuous current, and other elements. For instance, at Natural 60K, its standstill continuous torque is 23Nm and the standstill continuous current is 28.3A. These figures increase in different conditions. Its electrical attributes include peak current at 127.4A, a torque constant at 20°C of 0.91Nm/A, and a Voltage at 82.7v/1000min–¹. The motor has an IP65 protection standard and F insulation class when cables are mounted correctly. The housing varnish is prime coat black.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: MHD Synchronous motors
  • Product Model: MHD093C-058-NP1-BN
  • Motor Size: 093
  • Motor Length: Type C
  • Encoder Type: Digital Servo Feedback
  • Shaft Design: Shaft with Key Per DIN6885-1
  • Sealing: Sealing Ring
  • Brake: 22Nm Holding Brake
  • Housing Design: Liquid Cooling and Natural Convection
  • Motor Speed: 4000min–¹
  • Number of Pole Pairs: 4
  • Continuous Torque at Standstill (Natural 60K): 23Nm
  • Continuous Current at Standstill (Natural 60K): 28.3A
  • Continuous Torque at Standstill (Natural 100K): 28Nm
  • Continuous Current at Standstill (Natural 100K): 34.5A
  • Continuous Torque at Standstill (Surface 60K/100): 34.5Nm
  • Continuous Current at Standstill (Surface 60K/100): 42.5A
  • Continuous Torque at Standstill (Liquid 60K/100): 43.7Nm
  • Continuous Current at Standstill (Liquid 60K/100): 53.8A
  • Peak Current: 127.4A
  • Torque Constant at 20°C: 0.91Nm/A
  • Voltage: 82.7v/1000min–¹
  • Winding Resistance: 0.32Ω
  • Winding Inductivity: 2.6mH
  • Degree of Protection: IP65
  • Insulation Class: Class F
  • Housing Varnish: Prime Coat Black
