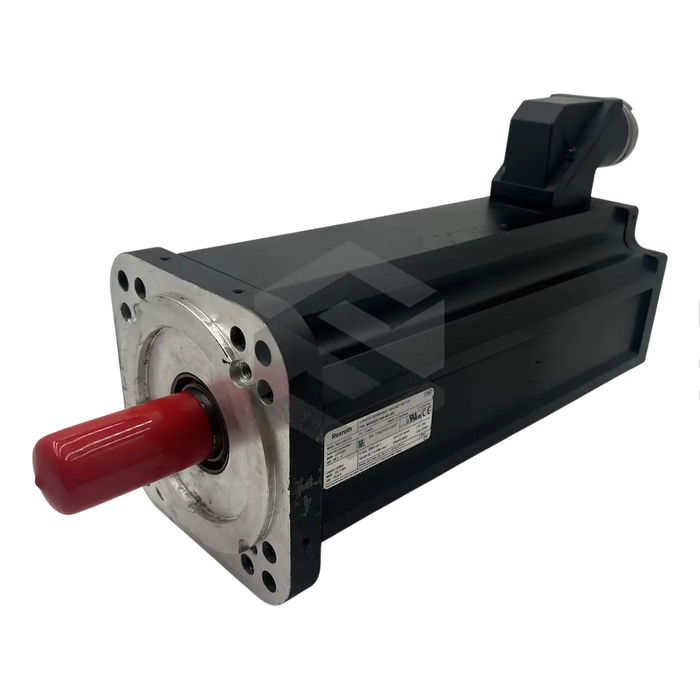

C image of MHD093C-058-NP1-BN | Main (Front Left)

MHD093C-058-NP1-BN

by Bosch Rexroth Indramat
$16,371.40 - $16,371.40
$16,371.40
$16,371.40 - $16,371.40
$16,371.40

Available, Shipping Varies

Bosch Rexroth's MHD093C-058-NP1-BN is a model in their MHD Synchronous motor series, boasting a 22Nm holding brake for controlled deceleration. With a liquid-cooled housing design, this motor supports natural convection and is specifically sized at 093, following type 'C' length. It features a digital servo feedback and a key shaft compliant with DIN6885-1 and a sealing ring. Tested in several environments, it has varying parameters for continuous torque, continuous current, and other elements. For instance, at Natural 60K, its standstill continuous torque is 23Nm and the standstill continuous current is 28.3A. These figures increase in different conditions. Its electrical attributes include peak current at 127.4A, a torque constant at 20°C of 0.91Nm/A, and a Voltage at 82.7v/1000min–¹. The motor has an IP65 protection standard and F insulation class when cables are mounted correctly. The housing varnish is prime coat black.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

MHD Synchronous motors

Product Model

MHD093C-058-NP1-BN

Motor Size

093

Motor Length

Type C

Encoder Type

Digital Servo Feedback

Shaft Design

Shaft with Key Per DIN6885-1

Sealing

Sealing Ring

Brake

22Nm Holding Brake

Housing Design

Liquid Cooling and Natural Convection

Motor Speed

4000min–¹

Number of Pole Pairs

4

Continuous Torque at Standstill (Natural 60K)

23Nm

Continuous Current at Standstill (Natural 60K)

28.3A

Continuous Torque at Standstill (Natural 100K)

28Nm

Continuous Current at Standstill (Natural 100K)

34.5A

Continuous Torque at Standstill (Surface 60K/100)

34.5Nm

Continuous Current at Standstill (Surface 60K/100)

42.5A

Continuous Torque at Standstill (Liquid 60K/100)

43.7Nm

Continuous Current at Standstill (Liquid 60K/100)

53.8A

Peak Current

127.4A

Torque Constant at 20°C

0.91Nm/A

Voltage

82.7v/1000min–¹

Winding Resistance

0.32Ω

Winding Inductivity

2.6mH

Degree of Protection

IP65

Insulation Class

Class F

Housing Varnish

Prime Coat Black
