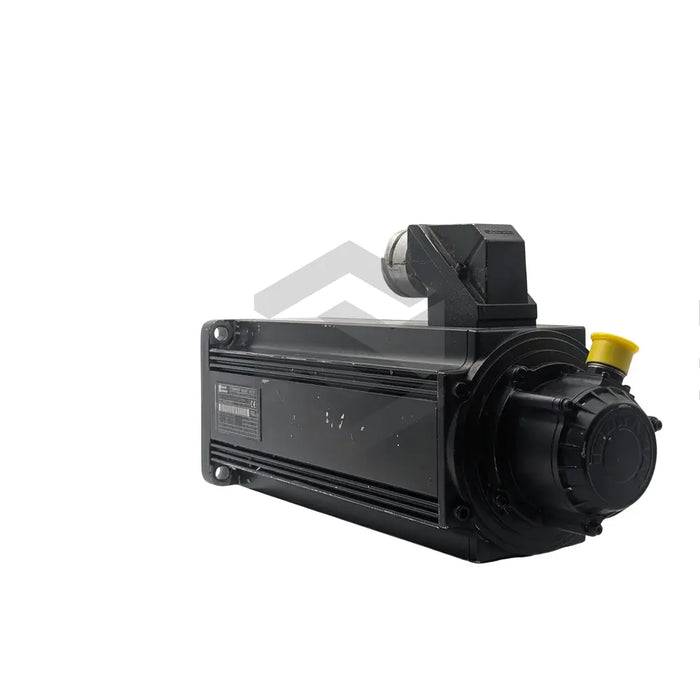

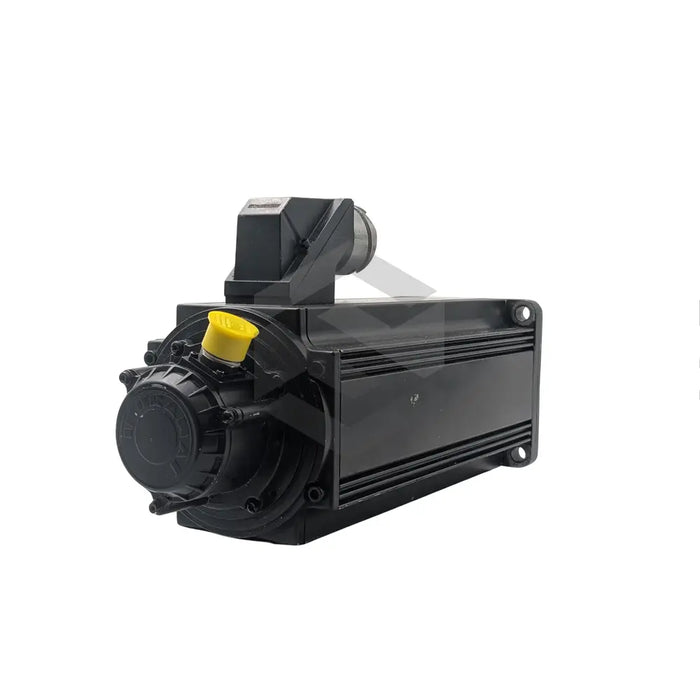

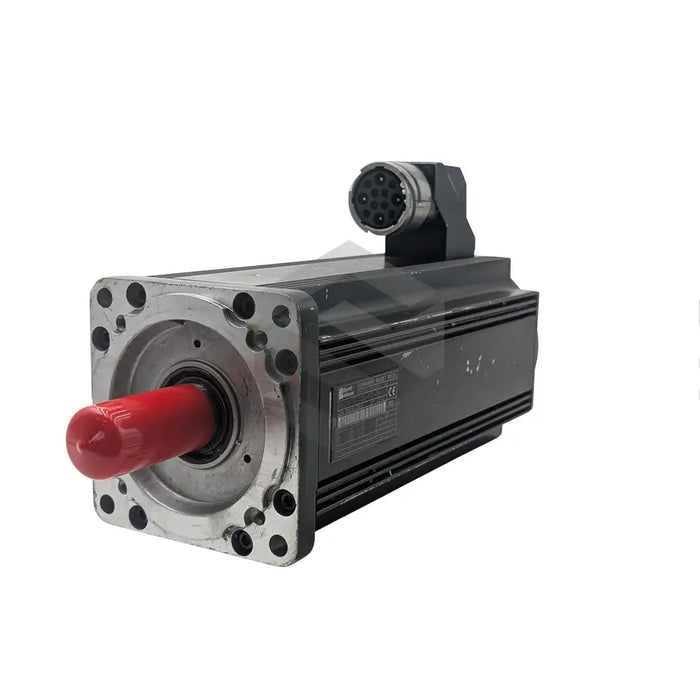

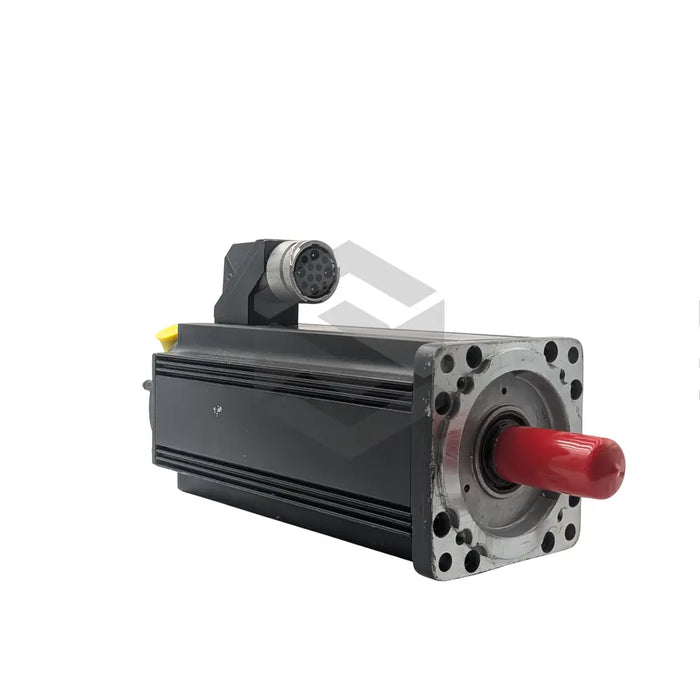

C image of MHD093C-058-PG0-LA | Main (Front Left)

MHD093C-058-PG0-LA

by Bosch Rexroth Indramat
$22,294.62 - $24,524.08
$22,294.62
$22,294.62 - $24,524.08
$22,294.62

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MHD093C-058-PG0-LA synchronous motor features a housing design equipped for natural convection and surface cooling mechanisms. Not meant to be disassembled or cut open under pressure, this motor has a 140mm or 150mm flange size and an overall length of 396mm. Its operational ambient temperature ranges from 0°C to 40°C and it is equipped with temperature monitoring for overload protection. Permanent magnets support electronic commutation and all hardware elements should remain in their original unmodified state. This motor, ideal for handling and automation systems, has a centering diameter of 130mm, and delivers a continuous torque of 34.5Nm when in standstill mode using surface cooling. The integrated encoder in conjunction with the connected controller controls its speed and position. Please note, the capacitor needs time to fully discharge after the motor is turned off and it should only be installed and operated in compliance with specified regulations and conditions.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

MHD093C-058-PG0-LA

Housing Design

Supports natural convection and surface cooling mode

Flange Size

140mm or 150mm

Shaft Design

Plain and smooth with a shaft sealing ring

Overall Length

396mm

Operational Temperature Range

0°C to 40°C

System Application

Handling and automation systems

Protection Function

Temperature monitoring for overload protection

Commutation Type

Electronic with permanent magnets

Length Code

C

Danger Causes

Defective components and improper wiring of cable connections

Centering Diameter

130mm

Continuous Torque (Standstill Mode with Surface Cooling)

34.5Nm

Shaft Hole Design

End-sided centering hole with DS thread (DIN 332 Part 2 specification)

Control Method

Speed and position controlled by connected controller with integrated encoder.
