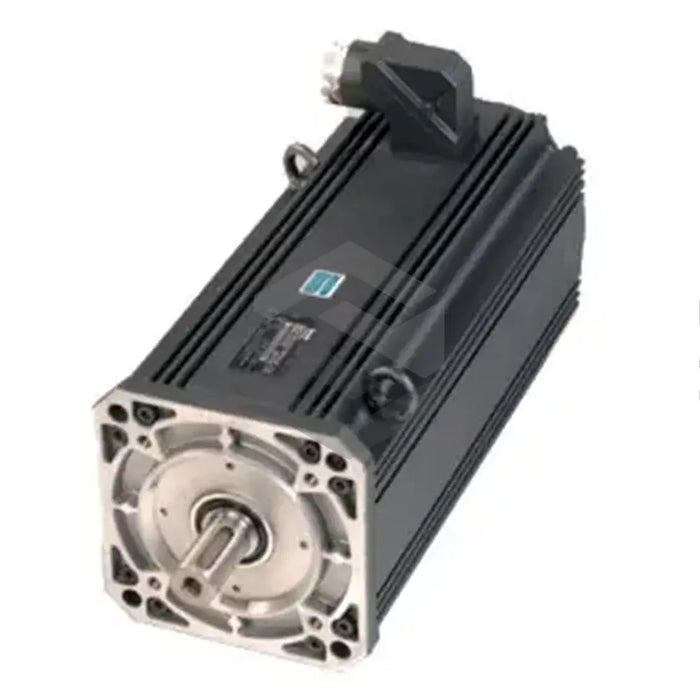

This description focuses on the MHD093C-058-PG2-AA model, a high-quality synchronous motor assembled by Bosch, a globally recognized company. This model is equipped with an effective cooling system that utilizes a pH 6-8 coolant to maintain the motor casing at the right temperature for efficient operation. The motor has a 130mm centering diameter and can be installed flexibly in any acceptable position. Its features include plain output shaft, 2.6 mH winding inductance, and an integrated optical encoder for controlling the speed and position. The MHD093 synchronous motor comes in a prime black color with a layer thickness of less than 40µm. It is optimally configured with IP65 protection making it suitable for harsh working environments. The device is insulated with class F as per DIN VDE 0530 Part 1 and weighs 23.6kg. It works at its peak performance under the temperature 0 to 40 degrees Celsius and below 1000m sea level.
30 Day Warranty
Technical Specifications
  • Product: Bosch MHD093C-058-PG2-AA
  • Motor Type: Synchronous Motor
  • Cooling System: Coolant w/ pH 6-8
  • Centering Diameter: 130 mm
  • Flange Diameter: 140-150 mm
  • Positioning: Allowable escalating positions
  • Output Shaft: Plain
  • Winding Inductance: 2.6 mH
  • Motor Housing Color: Prime black
  • Coating Layer Thickness: <40 µm
  • Feedback System: Optical Encoder (multiturn), Digital Servo
  • Insulation: Class F as per DIN VDE 0530 Part 1
  • Weight: 23.6 kg
  • Protection Rating: IP65
  • Installation Requirements: Maximum 1000 m/sea level, 0 to +40 degrees Celsius temperature.
