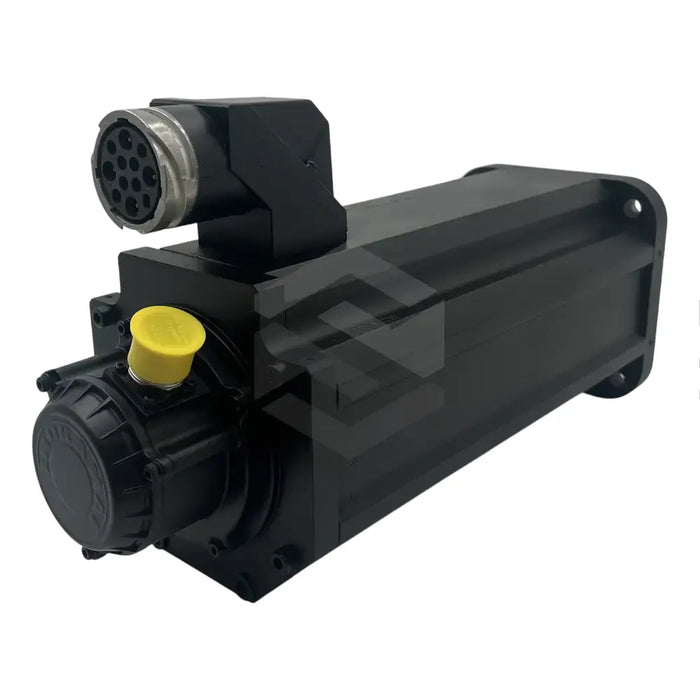

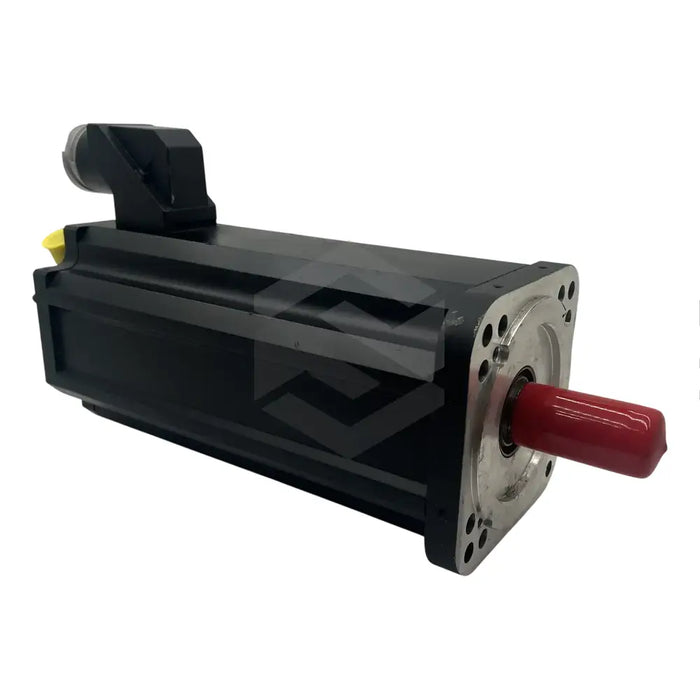

C image of MHD093C-058-PP0-BA | Front Right

MHD093C-058-PP0-BA

by Bosch Rexroth Indramat
$8,199.98 - $22,505.70
$8,199.98
$8,199.98 - $22,505.70
$8,199.98

In Stock, Ships 1 - 3 Days

The Bosch Rexroth MHD093C-058-PP0-BA is an industrial servo motor designed for high accuracy and continuous power in rigourous environments. This model is designed with versatility, featuring an IP65 protection rating for utilization in adverse environmental circumstances, and capability to operate in temperatures from 0 to +40 degrees Celsius. Specifications include a DIN 6885-1 shaft secured with a sealing ring, 2.0 – 8.5 kW rated power, and rated torque of 7.9 – 19.2 Nm at a rotational speed of 2000 rotations. This unit absorbs a rated current of 6.9 – 7.9 A in natural convection and 16.7 A in surface cooling. It lacks a holding brake and is assembled adhering to UL standards. Primarily used as a main servo drive motor, it finds a broad range of application in robotics, machine tools, and textile machines.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

MHD093C-058-PP0-BA

Protection Level

IP65

Shaft Key Type

DIN 6885-1 with sealing ring

Recommended Operating Temperature

0 to +40 degrees Celsius

Primary Application

Main servo drive motor for robotics, machine tools, and textile machines

Assembly Standard

UL

Rated Power

2.0 – 8.5 kW

Rated Torque

7.9 – 19.2 Nm

Rotational Speed

2000 rotations

Rated Current (Natural thermal convection)

6.9 – 7.9 A

Rated Current (Surface cooling)

16.7 A

Power Connector Location

B-side

Holding Brake

Not included

Cooling Modes

Natural convection and surface cooling

Availability

In stock at Servo Supplier.
