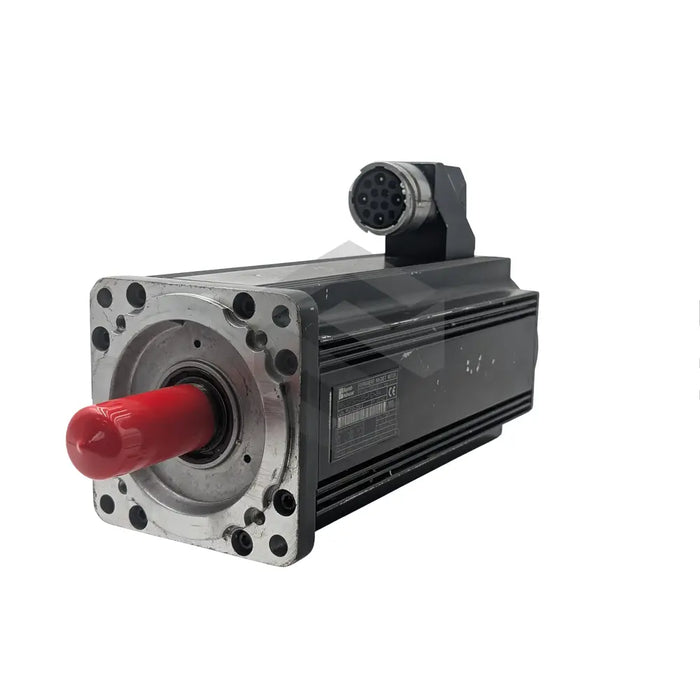

C image of MHD093C-058-PP0-LA | Main (Front Left)

MHD093C-058-PP0-LA

by Bosch Rexroth Indramat
$22,294.62 - $24,524.08
$22,294.62
$22,294.62 - $24,524.08
$22,294.62

In Stock, Ships 1 - 3 Days

Bosch Rexroth Indramat's MHD093C-058-PP0-LA is an industrial motor renowned for its precision and high-level performance. It features a DIN 6885-1 compliant shaft, excluding holding brakes, which offers accurate and continuous torque delivery. Now, under natural cooling environment, this motor is designed to produce a steady torque of 28 Nm whilst drawing a consistent current of 34.5 A when the winding temperature rises by 100-K. Conversely, with a 60-K rise in housing temperature, the motor consumes 6.9 A of rated current at a frequency of 133 Hz. Its inbuilt IP65 protection, F class insulation, and brushless makeup boost its operational longevity. The MHD093 motor boasts of an integrated absolute optical encoder for location tracking and comes with power connection to the left. A prime black coating covers the motor housing, and additional layers are prohibited. The motor, with a maximum speed of 6000 rpm and a characteristic speed of 4000 rpm, can be positioned vertically or horizontally. It includes a blower unit for surface cooling and is inappropriate for high-impact applications.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

MHD093C-058-PP0-LA

Shaft Design

Key in compliance with DIN 6885-1 standard

Brakes

No holding brakes

Torque at 100-K Rise in Winding Temperature

28 Nm

Current at 100-K Rise in Winding Temperature

34.5 A

Rated Current at 60-K Rise in Housing Temperature

6.9 A

Frequency at 60-K Rise in Housing Temperature

133 Hz

Protection Level

IP65

Insulation

F class

Encoder

Absolute (multiturn) optical with digital servo feedback

Power Connection

On the left side

Housing Material

Lacquered with a prime black coat

Design Category

B05

Installation Orientation

Horizontal or Vertical

Cooling Process

Surface cooling with blower unit

Not Suitable For

Applications subjected to shock stresses

Maximum Speed

6000 rpm

Characteristic Speed

4000 rpm

Rotor Inertia

0.0030 kgm2
