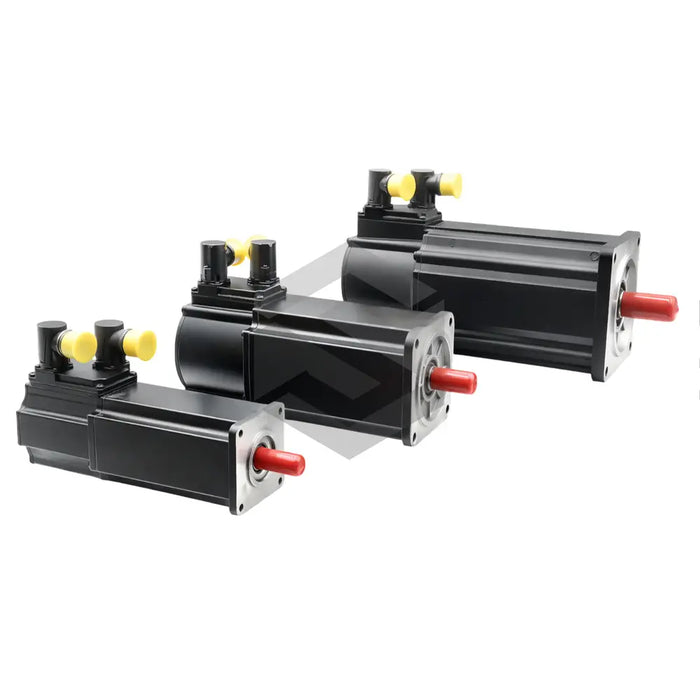

series image of MHD095B-058-PG1-AN

MHD095B-058-PG1-AN

by Bosch Rexroth Indramat
Request a quote
The MHD095B-058-PG1-AN is a synchronous motor created by Bosch Rexroth Indramat under the MHD series, equipped with a digital servo feedback system with integrated multiturn absolute encoder. It possesses a winding code of 058, a 22Nm holding brake, and a plain shaft with a fitted sealing ring. The product is designed for natural convection or surface cooling, with power output on the A side, and measures 095 in motor size and B in length. The motor’s parameters are determined by three cooling and temperature settings: Natural 60K, Natural 100K, and Surface 60K/100 - influencing factors such as continuous current and torque at standstill. Other constant parameters include characteristic motor speed, peak current, torque constant, voltage, winding resistance, and winding inductivity. The motor has 4 pole pairs. Operational conditions stipulate a maximum setup height of 1000 above MSL, and an ambient temperature of 0°C to 40°C. Users should refer to the manual for proper installation and environmental conditions for safe usage.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Synchronous Motor
  • MHD Series Code: MHD095B-058-PG1-AN
  • Feedback Type: Digital Servo Feedback with Integrated Absolute Encoder
  • Winding Code: 058
  • Brake Type: Holding Brake of 22Nm
  • Shaft Type: Plain Shaft with Sealing Ring
  • Power Reception: Output Direction on A side
  • Housing Design: Designed for Natural Convection or Surface Cooling
  • Motor Size: 095
  • Motor Length: B
  • Cooling and Motor Overtemperature Types: Natural 60K, Natural 100K, Surface 60K/100
  • Continuous Current at Standstill: 22.8A, 24.8A, 34.2A
  • Continuous Torque at Standstill: 17Nm, 18.5Nm, 25.5Nm
  • Motor Speed: 4000min–¹
  • Peak Current: 102.8A
  • Torque Constant at 20°C: 0.82Nm/A
  • Voltage: 71.3v/1000min–¹
  • Winding Resistance: 0.46Ω
  • Winding Inductivity: 2.9mH
  • Pole Pairs: 4
  • Rated Current: 6.5A, 11.5A, 18.5A
  • Rated Performance: 1.6kW, 2.9kW, 4.8kW
  • Rated Voltage: 116V, 150V, 157V
  • Rated Torque: 7.0Nm, 12.1Nm, 16.5Nm
  • Rated Frequency: 133Hz
  • Rated Speed: 2000min–¹
  • Time Constant: 40min, 40min, 20min
  • Minimum Strand of Cross-Section: 1.5mm², 2.5mm², 4.0mm²
  • Max Torque: 66Nm
  • Max Speed: 6000min–¹
  • Rotor Moment of Inertia: 49×10–⁴kgm²
  • Motor Mass: 19kg
  • Max Setup Height: 1000 above MSL
  • Permissible Ambient Temperature: 0°C to 40°C
  • Storage Temperature: -20°C to 80°C
  • Degree of Protection: IP65
  • Insulation Class: Class F
