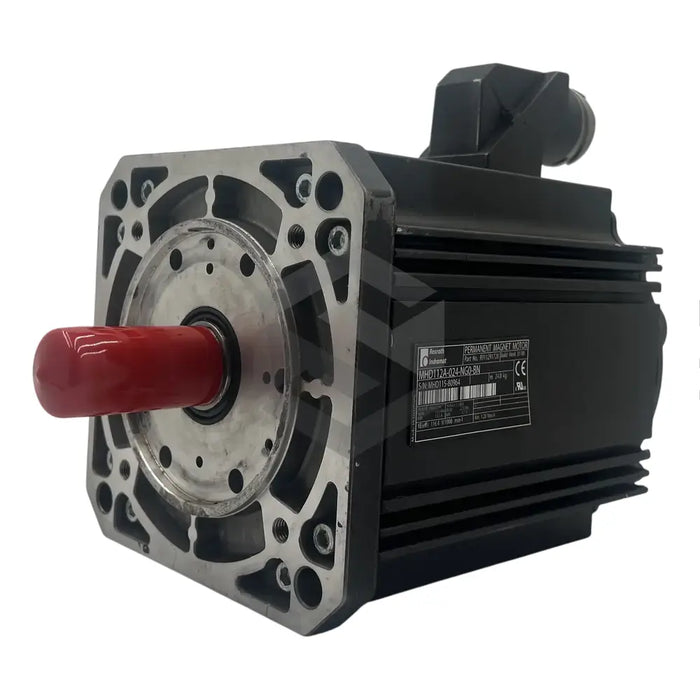

C image of MHD112A-024-NG0-BN | Main (Front Left)

MHD112A-024-NG0-BN

by Bosch Rexroth Indramat
$5,971.10 - $9,840.00
$5,971.10
$5,971.10 - $9,840.00
$5,971.10

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MHD112A-024-NG0-BN synchronous motor boasts high dynamics due to its advantageous torque to inertia mass ratio, offering great overload capacity. It provides effective heat dissipation from the motor's stator windings to its external housing. With lifetime lubrication of its planetary gearings, this product requires low maintenance and is suitable for use in printing and packaging machines. It doesn't include a holding brake and is designed to operate in temperatures between 0°C and 40°C. The motor features individual plug connections for power and temperature sensor and encoder feedback. However, the device should not be installed if faulty or damaged, and must be securely attached for load bearing. It holds an IP 65 protection class when installed correctly and can be oriented horizontally or vertically. Application of additional varnishing on the housing should not exceed 40µm thickness.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

MHD112A-024-NG0-BN

Motor Type

Synchronous

Torque to Inertia Mass Ratio

High

Overload Capability

High

Heat Dissipation

Favorable

Condition for Installation

Not Defective or Damaged

Ideal Use

Printing and Packaging Machines

Holding Brake

None

Time Constant at 60K with Natural Convection Cooling

40 minutes

Length Code

A

Total Frame Length

309mm

Sealing Air Connector

Supported by Replacing Flange Socket Cover

Lubrication

Lifetime for Planetary Gearings

Maintenance Requirement

Low

Electrical Connections

Standardized

Power Connector

Includes Connection for Temperature Sensor and Feedback for Encoder Connection

Ambient Temperature Range for Operation

0°C to 40°C

Shock-Absorption Attachment

Required for Load Carrying

Protection Class

IP 65 for Housing, Feedback and Power Connectors, and Output Shaft

Installation Orientation

Horizontal and Vertical

Additional Varnish for Housing

Not More Than 40µm Thickness.
