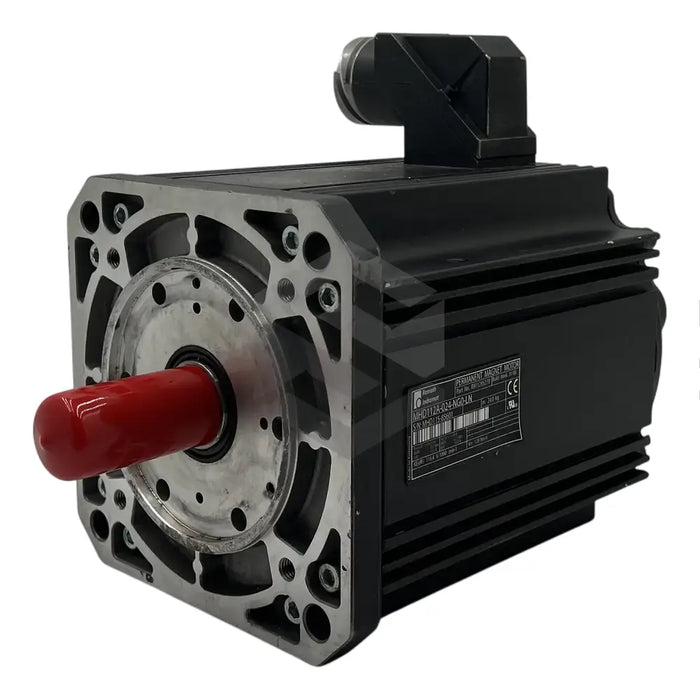

C image of MHD112A-024-NG0-LN | Main (Front Left)

MHD112A-024-NG0-LN

by Bosch Rexroth Indramat
$5,971.10 - $5,971.10
$5,971.10
$5,971.10 - $5,971.10
$5,971.10

In Stock, Ships 1 - 3 Days

Bosch Rexroth Indramat's MHD112A-024-NG0-LN is a versatile synchronous motor that provides both electronic and electric commutation. Highlighted by its application of high torque across a range of speeds, it's designed for a temperature range between -20°C and 80°C and boasts Class F insulation per DIN VDE 0530, Part 1 standards. The motor has a left-oriented power connector and a casing coated in prime black, RAL 9005. Essential for safe use, cooling periods are necessary after operation and unsanctioned applications are strictly discouraged. Technical features include a leakage current above 3.5mA, a 116.4V/1000min-1 voltage constant, and 1.28Nm/A torque constant. The product also sports a 192mm flange and an encoding system which contains type plate details. Its bearing supports high radial loads and potential modifications like changing cable output direction or mounting pinions and belt pulleys directly. The MHD112A-024-NG0-LN, requiring dry, dust-free storage away from vibrations, can be shipped internationally.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

MHD112A-024-NG0-LN

Motor Type

Synchronous

Commutation Type

Electrical and Electronic

Peak Torque

Applicable over a wide speed range

Transportation and Storage Temperature

-20°C to 80°C

Insulation Class

Class F as per DIN VDE 0530, Part 1 specifications

Housing

RAL 9005 prime black coat

Power Connector position

Left side

Voltage constant

116.4V/1000min-1

Winding resistance

1.45 Ohms

Torque constant at 20°C

1.28Nm/A

Flange

192mm

Operation

Continuous start-stop with high repeat frequencies

Bearing

Designed for high radial loads

Cable output direction

Changeable during the assembly process

Leakage current of connected drive controller

More than 3.5mA

Mounting

Permits the mounting of belt pulleys and pinions directly over it

Startup

Simple and quick

Data Memory

Type plate details loaded in the encoder data memory

Storage Orientation

Horizontal

Storage Conditions

Dry place free of dust and vibration

Shipping

Can be delivered to any address worldwide.
