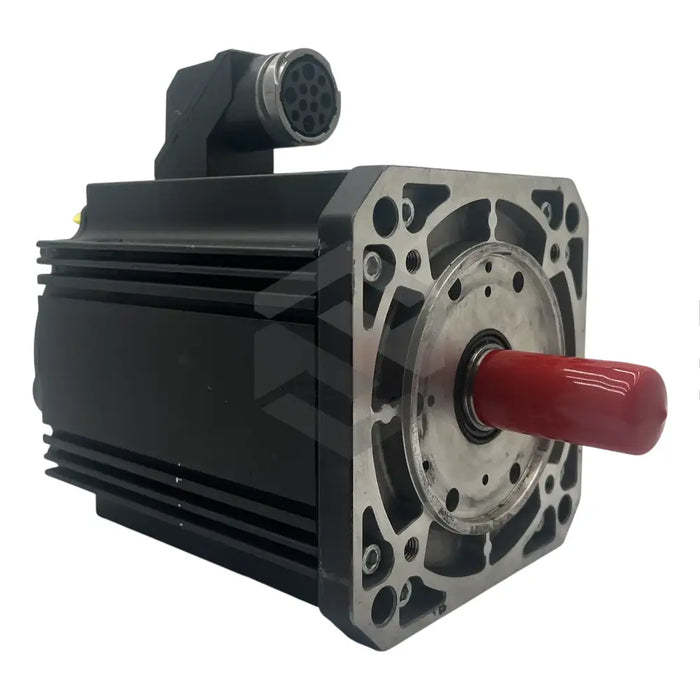

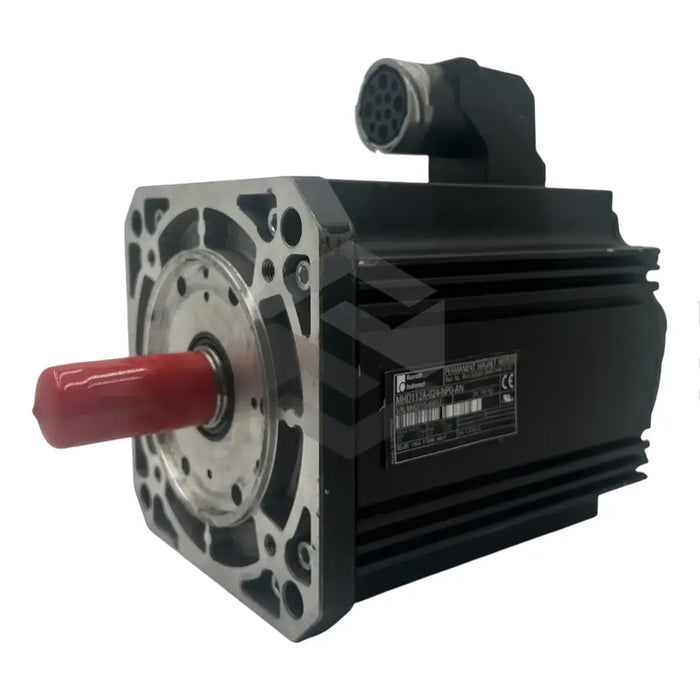

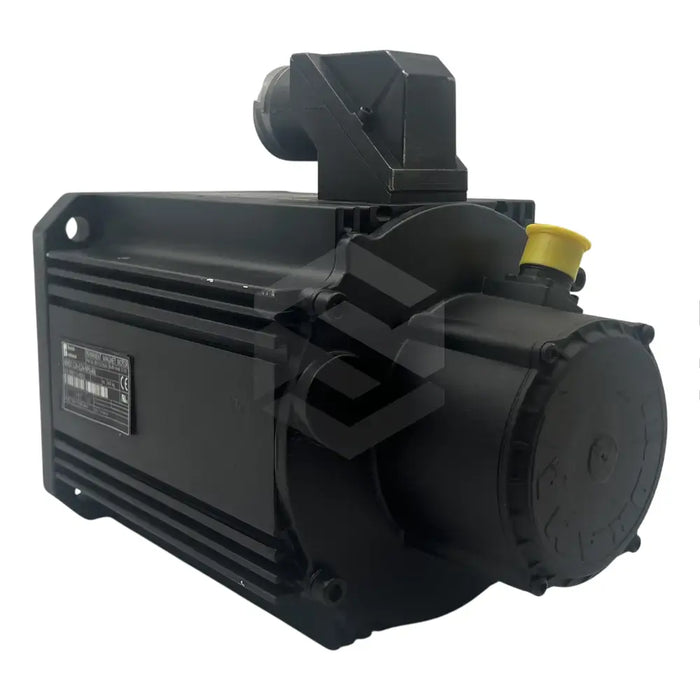

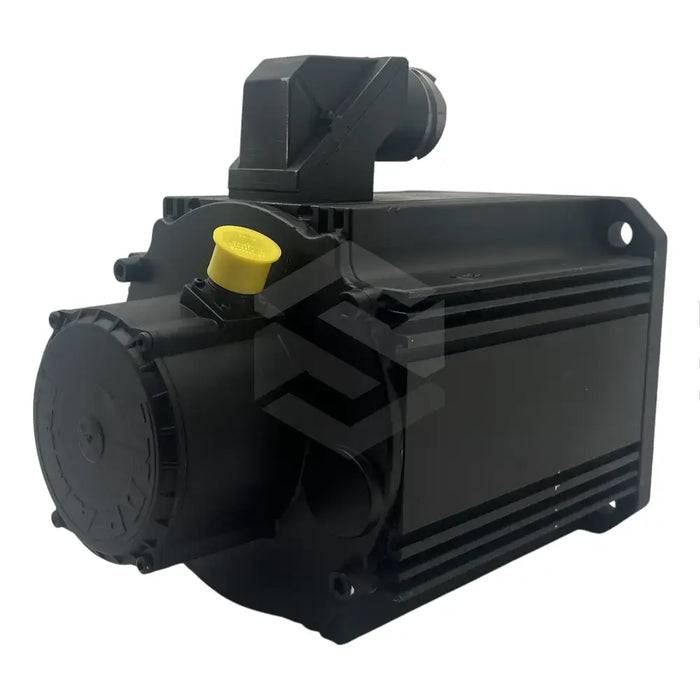

MHD112A-024-NP0-AN
The MHD112A-024-NP0-AN is a cutting-edge industrial motor from Bosch Rexroth Indramat, created to boost industrial functions by supplying intrinsic energy for machine operations. This technically advanced brushless motor scores high on efficiency and low on noise, with electronic commutation allowing continuous start-stop operations at increasing frequencies. It can generate peak torque over a vast speed range, thanks to its electrical commutation. Special grease-lubricated ball bearings are incorporated to manage heat output when idle. The motor achieves a standard speed of 2500 RPM, though with a maximum input current of 59A, it can produce a continuous torque of 54 N.m at a top speed of 4000 RPM. The motor, with IP65-rated protection, boasts a rust-resistant housing coated with a special black finish. This lightweight motor has four pole pairs and weighs 23 kilograms. It operates best between 0 and 40°C, though it can be stored between -20 and +80°C.
