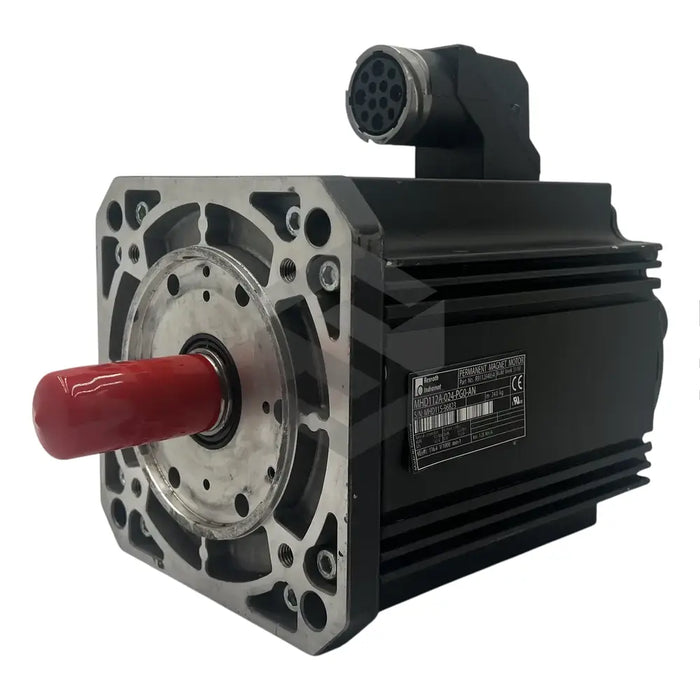

C image of MHD112A-024-PG0-AN | Main (Front Left)

MHD112A-024-PG0-AN

by Bosch Rexroth Indramat
$5,971.10 - $5,971.10
$5,971.10
$5,971.10 - $5,971.10
$5,971.10

In Stock, Ships 1 - 3 Days

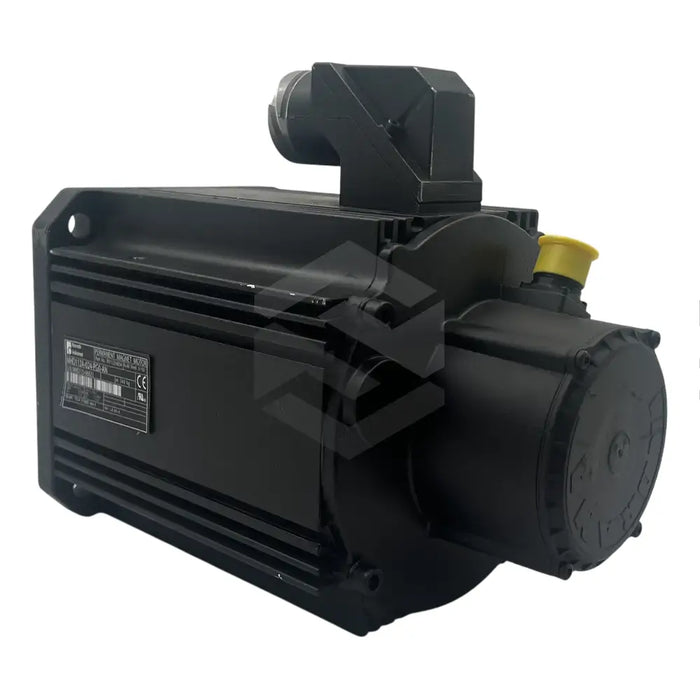

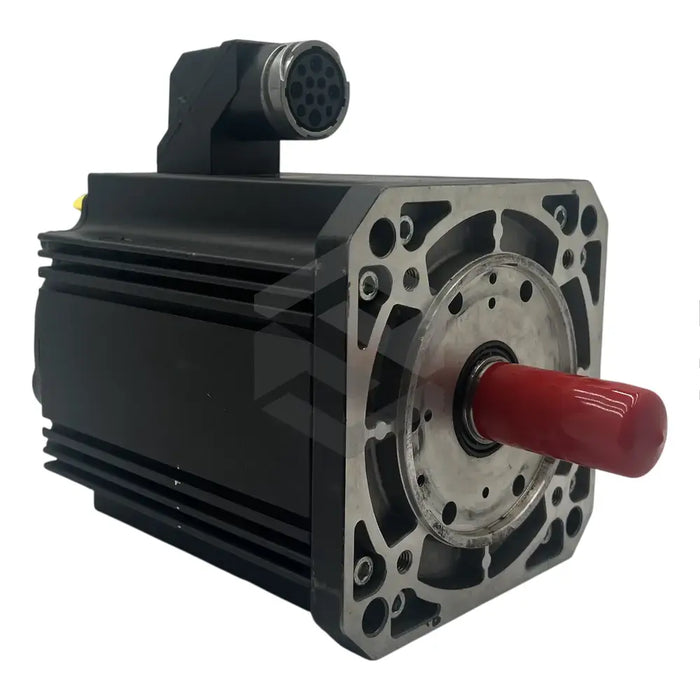

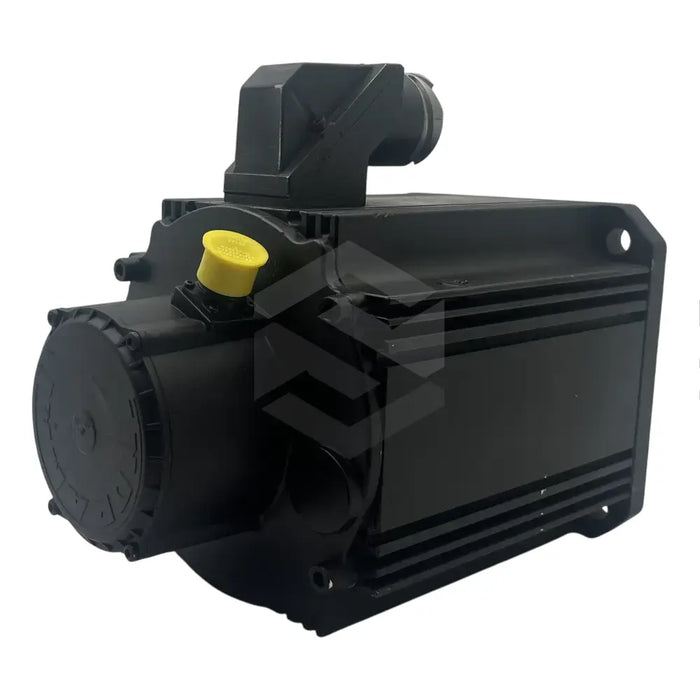

The MHD112A-024-PG0-AN, manufactured by industry innovator Bosch Rexroth Indramat, is a highly efficient synchronous motor ideally suited for various industrial applications. This model is especially notable for its maximum potential torque of 54 Nm, internal operating temperature range of 0 to +40 degrees Celsius, and its rated power of 3.2 kW in natural cooling mode at 60 K. Despite a substantial weight of 23 kilos, the unit's flexible mounting options and adjustable electrical connections accommodate a diverse range of requirements. The motor features a built-in multiturn absolute encoder for digital servo feedback and day-to-day protection against the ingress of lubricants and dust, thanks to a plain shaft with a sealing ring. It also offers a rated voltage of 314 volts and an impressive IP65 protection rating. Additional surface cooling capability and a black paint coating on the housing equip the motor for operation even in challenging conditions. The MHD112A-024-PG0-AN is tested thoroughly pre-delivery to guarantee optimal performance.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

MHD112A-024-PG0-AN

Motor Type

Synchronous Motor

Maximum Theoretical Torque

54 Nm

Winding Inductivity

14 mH

Operating Temperature

0 to +40 degrees Celsius

Thermal Time Constant

40 minutes

Winding Resistance

1.45 ohms

Torque Constant

1.28 Nm/A

Rated Power

3.2 kW

Rated Voltage

314 volts

Maximum Torque

10.1 Nm

Motor Weight

23 kilos

Insulation Class

F

IP Protection Rating

IP65

Encoder

Inbuilt Multiturn Absolute Encoder

Feedback Type

Digital Servo Feedback

Shaft Type

Plain

Sealing Ring

Yes

Housing Cooling

Natural and Surface Cooling

Continuous Torque in Natural Cooling

15 to 17 Nm

Continuous Torque in Surface Cooling

22.5 Nm

Current Consumption in Natural Cooling

13.1 to 15.9 A

Current Consumption in Surface Cooling

19.7 A

Additional Protection

Black Paint on Housing.
