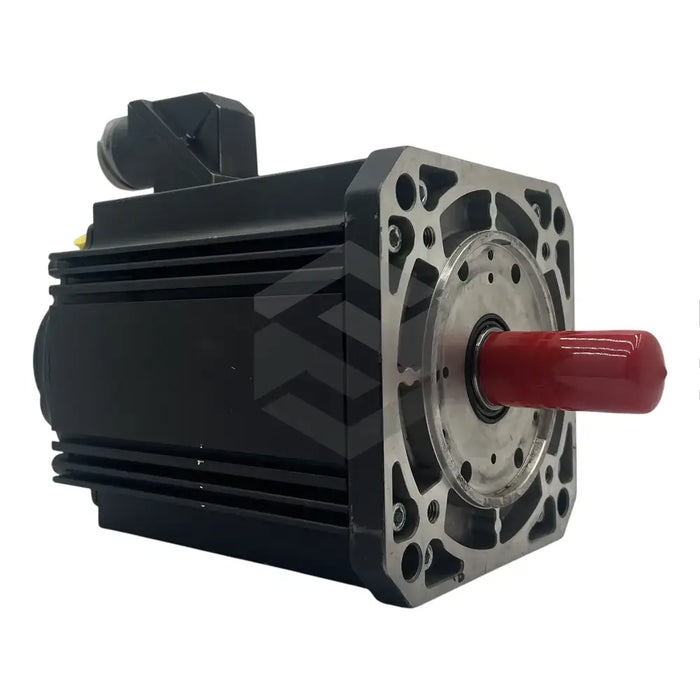

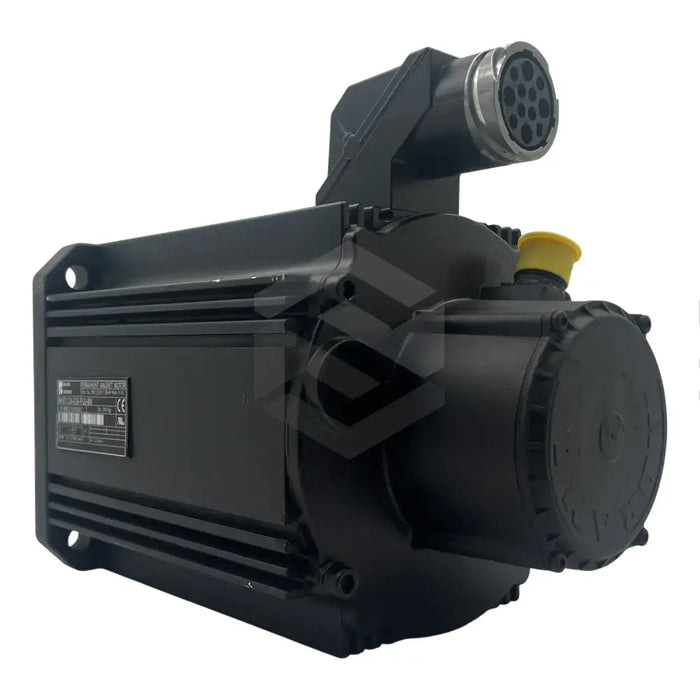

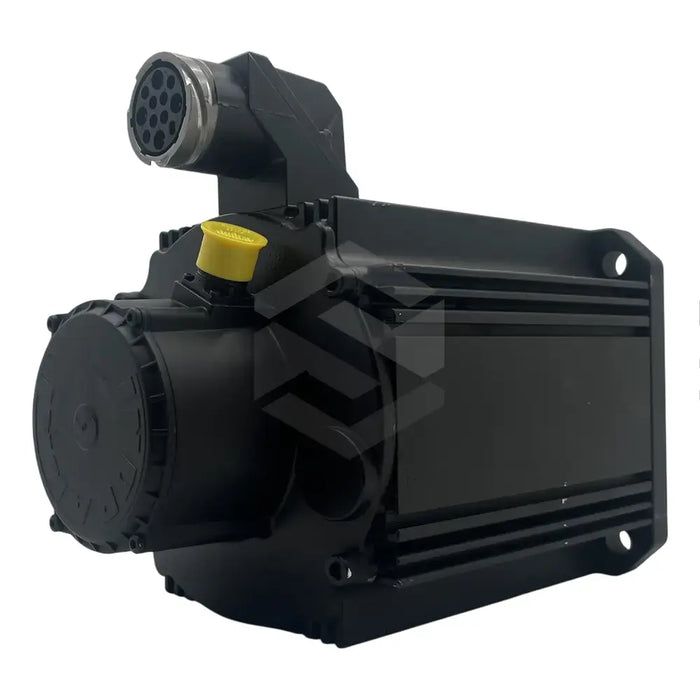

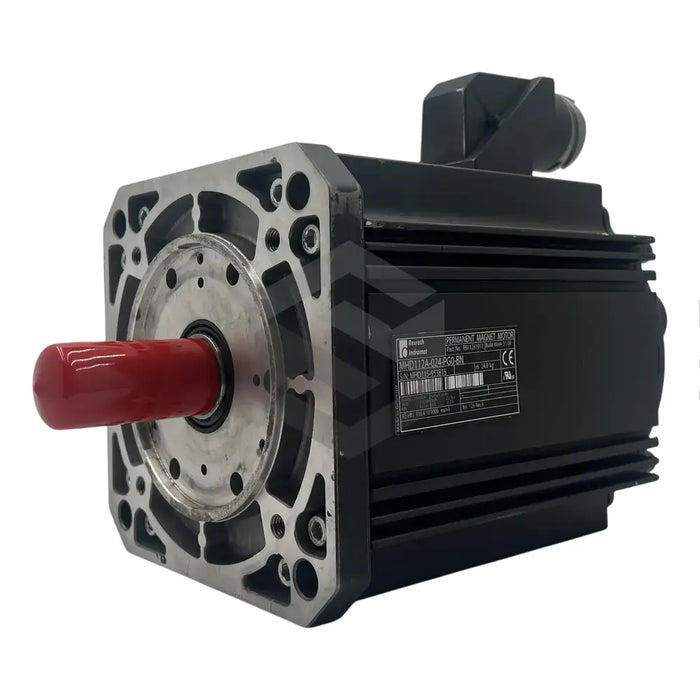

C image of MHD112A-024-PG0-BN | Main (Front Left)

MHD112A-024-PG0-BN

by Bosch Rexroth Indramat
$4,426.85 - $4,426.85
$4,426.85
$4,426.85 - $4,426.85
$4,426.85

In Stock, Ships 1 - 3 Days

Bosch Rexroth Indramat's MHD112A-024-PG0-BN is a synchronous motor renowned for its energy efficiency, durability, and affordability. Its key features include a rated torque of 13.8 kW and a rated current of 9.1 A, operating at a rated frequency of 167 Hz in a 100-K environment. The reliable performance of this motor is hinged on the adherence to its environmental parameters, between 0 to +40 degrees Celsius for operation, and -20 to +80 degrees Celsius for transportation. Its power connection is situated on the B side of its housing, and it boasts a maximum rotational speed of 4000 rpm. Equipped with an absolute multiturn encoder for controlling speed and shaft position, and a combined natural and surface cooling system to prevent overheating, this 23-kilogram motor comes without a blocking brake. It provides a theoretical torque of 54 Nm at a peak current of 59 A, standing out for its optimal weight-to-performance ratio.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

MHD112A-024-PG0-BN

Rated Torque

13.8 kW

Rated Current

9.1 A

Rated Frequency

167 Hz

Cooling Environment Temperature

100-K

Thermal Time Constant

20 to 40 minutes

Operating Environmental Parameters

0 to +40 degrees Celsius

Relocation Temperature Range

-20 to +80 degrees Celsius

Power Connection Location

B side of the housing

Maximum Rotational Speed

4000 revolutions per minute

Output Shaft

Yes

Sealing Ring

Installed

Motor Housing Cooling

Natural and Surface

Weight

23 kilograms

Voltage Constant

116.4 V/1000 rpm

Encoder

Absolute multiturn

Blocking Brake

Absent

Theoretical Torque

54 Nm

Peak Current

59 A
