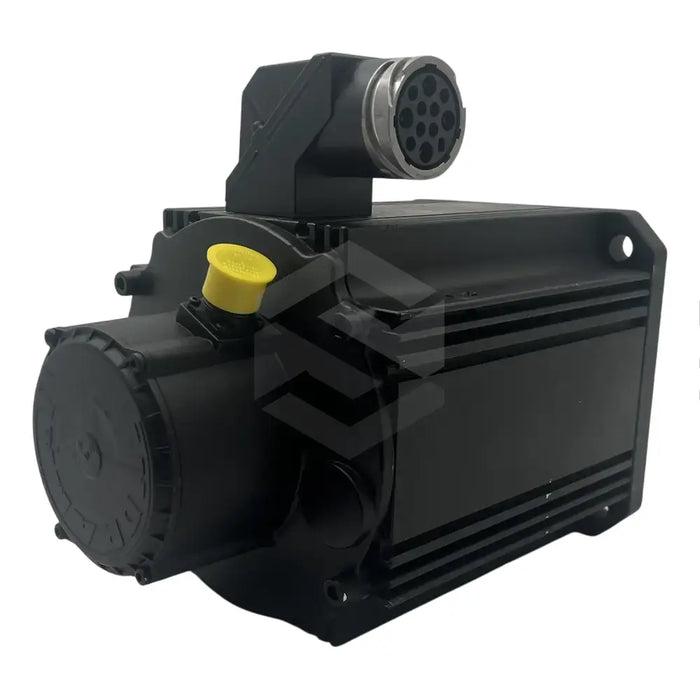

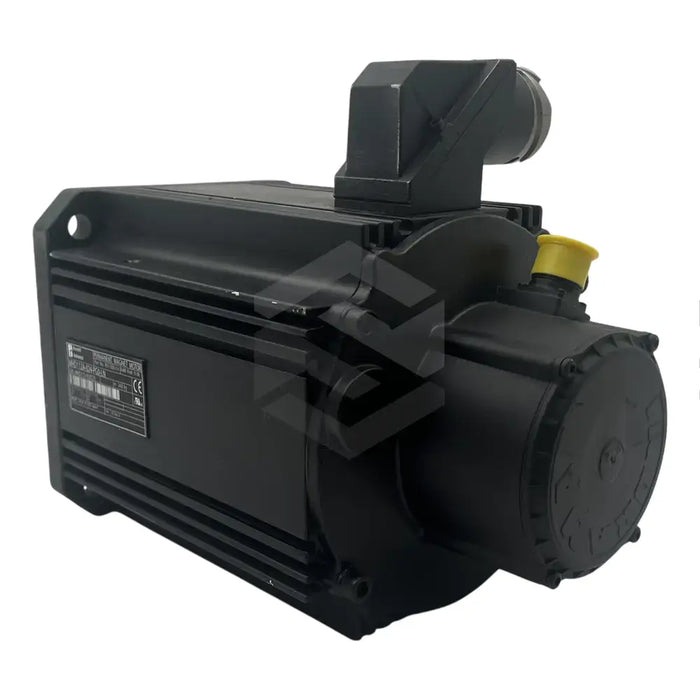

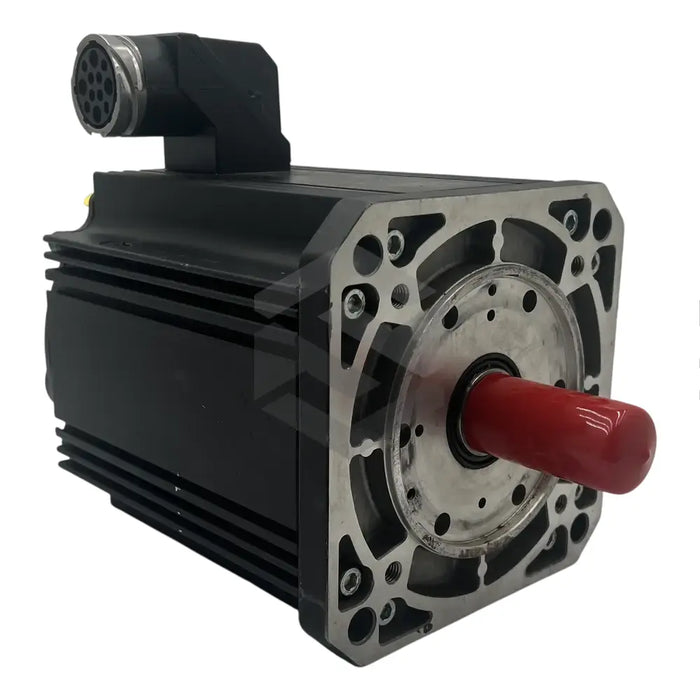

MHD112A-024-PG0-LN
The MHD112A-024-PG0-LN is a reliable and high-precision synchronous motor manufactured by Bosch Rexroth Indramat, a leader in modern technology component manufacturing. The motor incorporates a multiturn digital feedback encoder, providing accurate location and speed measurement of the shaft, delivering up to 54 Nm of torque at a 59 A rated current. Notably, this model does not include a holding brake. It operates at a robust protection level of IP65, with a winding inductivity of 14 mH, and a voltage constant of 116.4 V/1000min-1. Its thermal management is carried out through convective heat transfer and surface cooling with a thermal time constant of 20 to 40 minutes. The motor is designed for an ambient operating temperature range of 0 to +40 degrees Celsius, and elevations below 1000 meters. The MHD112A-024-PG0-LN operates optimally at a peak speed of 4000 rpm, weighs 23 kg, and uses a rated voltage of 314 volts at a rated power of 3.2 kW at 60 K temperature while naturally cooled.
