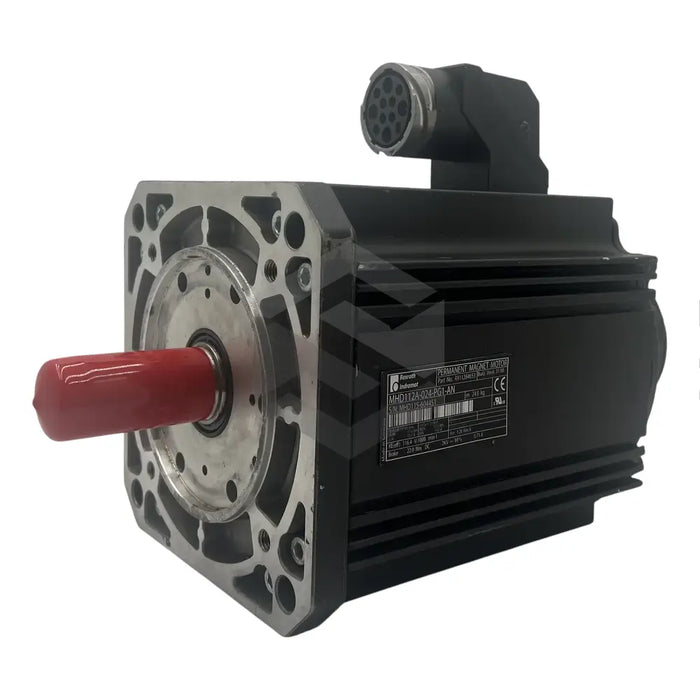

C image of MHD112A-024-PG1-AN | Main (Front Left)

MHD112A-024-PG1-AN

by Bosch Rexroth Indramat
$17,487.50 - $17,487.50
$17,487.50
$17,487.50 - $17,487.50
$17,487.50

In Stock, Ships 1 - 3 Days

The MHD112A-024-PG1-AN, produced by industry-renowned manufacturer Bosch Rexroth Indramat, functions in a range of motion control systems. This model of synchronous motor exhibits advanced technological design and construction. It provides 13.8 Nm of torque in natural convection and 19.4 Nm surface-cooled, operating at 9.1 and 12 A rated currents at 167 Hz frequency. Weighing approximately 23 kg, it features a 22 Nm holding brake consuming 0.71 A and 24 volts. The model boasts an IP65 protection certification and F class insulation, safeguarding it against dust and low water jets. It also has voltage and torque constants of 116.4 V/1000 min-1 and 1.28 Nm/A at 20 degrees Celsius, respectively. Furthermore, it is equipped with a simple shaft with a sealing ring, an integrated absolute multiturn encoder with digital servo feedback, and a power connector. Potential users should be aware that fluid existing at the output shaft can damage the motor when placed according to the IM V3 design.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

MHD112A-024-PG1-AN

Industry Use

Automation Goods Industry

Torque during Natural Convection

13.8 Nm

Torque during Surface Cooling

19.4 Nm

Rated Current

9.1 and 12 A

Rated Frequency

167 Hz

Winding Inductivity

14 mH

Winding Resistivity

1.45 ohms

Winding Code

024

Product Weight

23 kilos

Holding Brake Torque

22 Nm

Brake Current Consumption

0.71 A

Brake Voltage Consumption

24 volts

Protection Certification

IP65

Insulation Class

F class

Voltage Constant

116.4 V/1000 min-1

Torque Constant at 20 degrees Celsius

1.28 Nm/A

Shaft Type

Simple Shaft with Sealing Ring

Design Placement

IM V3 Design Not Recommended

Thermal Time Constant during Natural Cooling

40 minutes

Natural Cooling Rated Torque

10.1 Nm

Natural Cooling Current Consumption

6.2 A

Encoder Type

Integrated Absolute Multiturn Encoder

Power Connector Location

A side of the housing.
