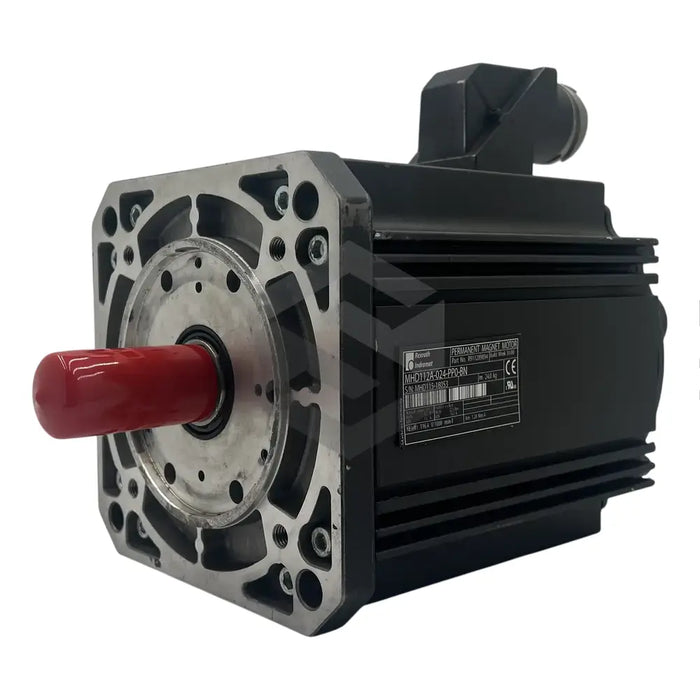

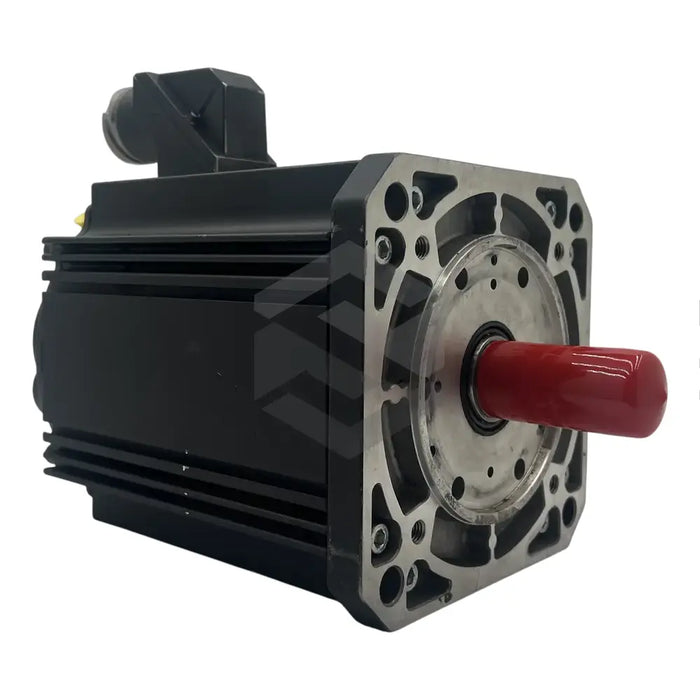

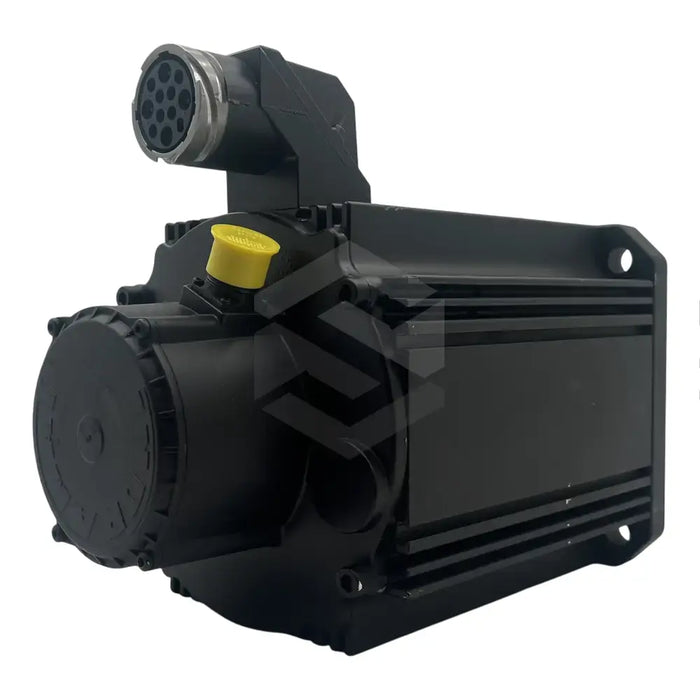

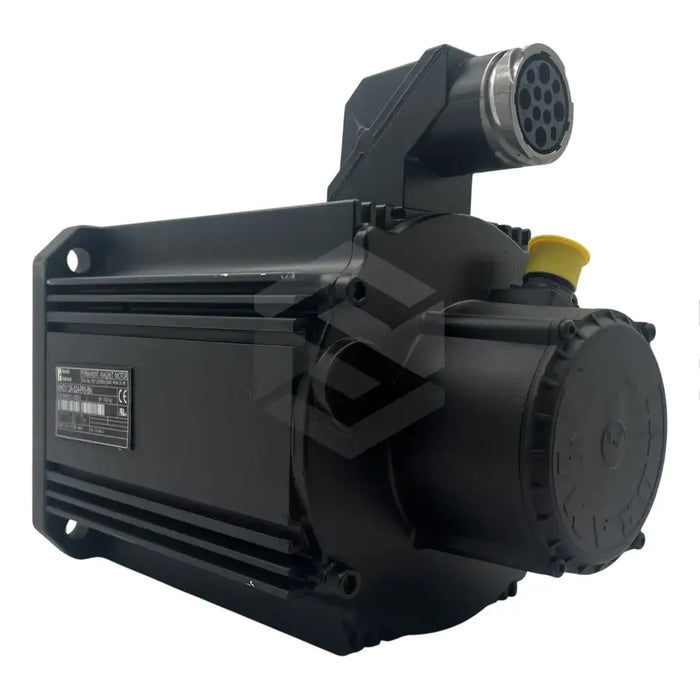

series image of MHD112A-024-PP0-BN

MHD112A-024-PP0-BN

by Bosch Rexroth Indramat
$3,150.00 - $3,150.00
$3,150.00
$3,150.00 - $3,150.00
$3,150.00
Available, Shipping Varies
Bosch Rexroth Indramat's MHD112A-024-PP0-BN is a synchronous motor available in eight frames from the MHD series, notable for their maintenance-free and fully-sealed design. The versatile installation allows for operation in diverse conditions and applications such as textile, printing and packaging industries. The MHD112A-024-PP0-BN model offers a peak current of 59.0 A, a characteristic speed of 2000 min, and a maximum speed of 4000 min, demonstrating a theoretical maximum torque of 54.0 Nm. It boasts a flange size of 192 mm, centering diameter of 130 mm and a frame length of 15.0 Nm. This motor engages a liquid cooling technique and the power connector outputs on side B. The MHD112A-024-PP0-BN features a digital servo feedback with an integrated multi-turn absolute encoder and does not include a holding brake. The motor, which weighs 23.0 kg, is characterized by capped, lubricated bearings and a winding code of 24.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • MHD Motor Components: Rotor, Flange socket, Shaft, Stator, Holding brake, Shaft sealing ring, Motor encoder
  • Use Cases: Textiles, Printing, Packaging
  • Installation Position: Any Desired Position
  • Environmental Resilience: Fully Sealed
  • Encoder Units: With data memories
  • Motor Type: MHD112A-024-PP0-BN
  • Flange Size: 192 mm
  • Centering Diameter: 130 mm
  • Frame Length: 15.0 Nm
  • Peak Current: 59.0 A
  • Characteristic Speed: 2000 min
  • Winding Inductivity: 14.0 nH
  • Maximum Speed: 4000 min
  • Theoretical Maximum Torque: 54.0 Nm
  • Cooling Technique: Liquid Cooling
  • Power Connector Output Direction: Side B
  • Winding Code: 24
  • Weight: 23.0 kg
  • Output Shaft: Keyway Slotted
  • Servo Feedback: Digital, with integrated multi-turn absolute encoder
  • Holding Brake: Not Included
