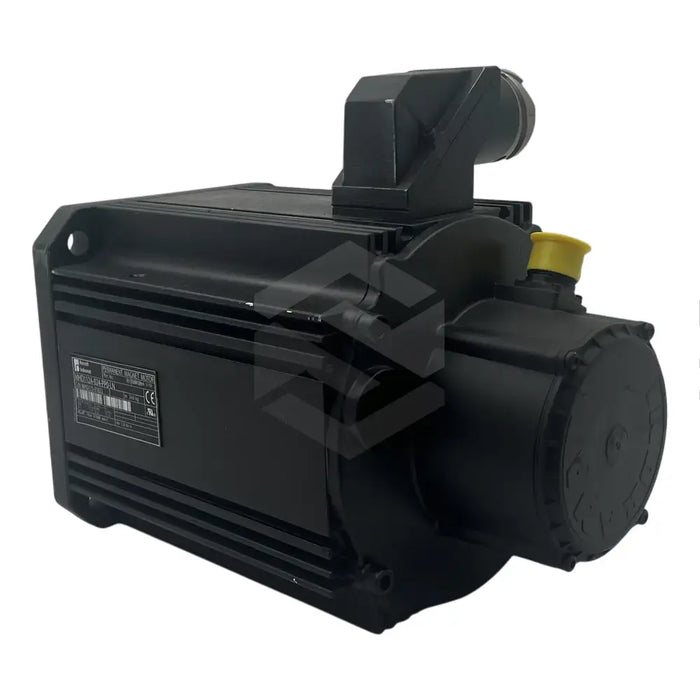

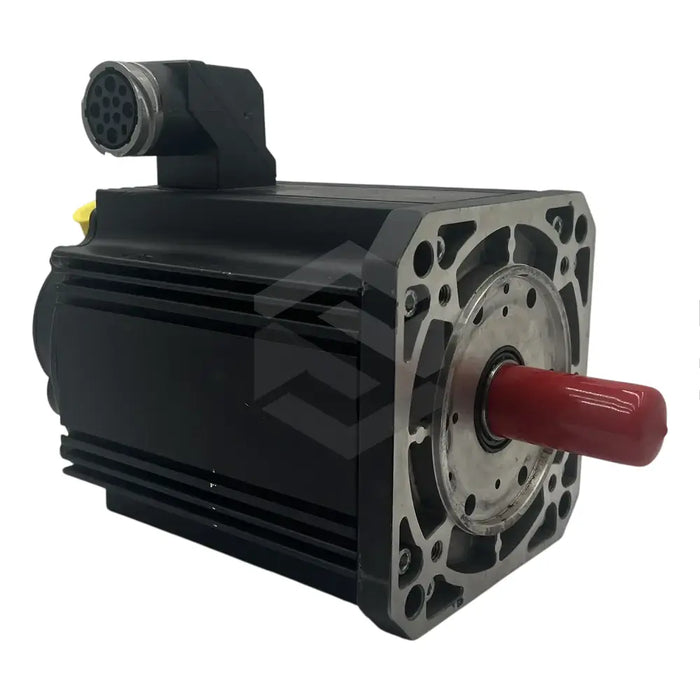

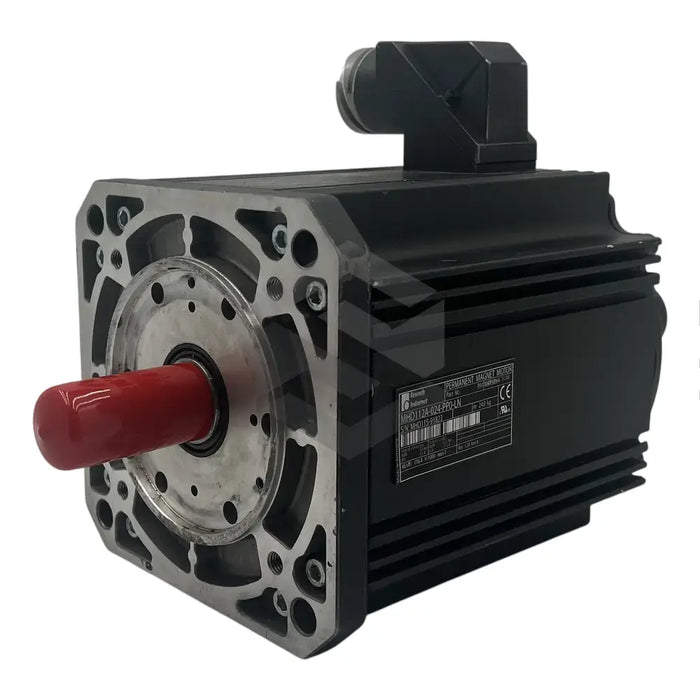

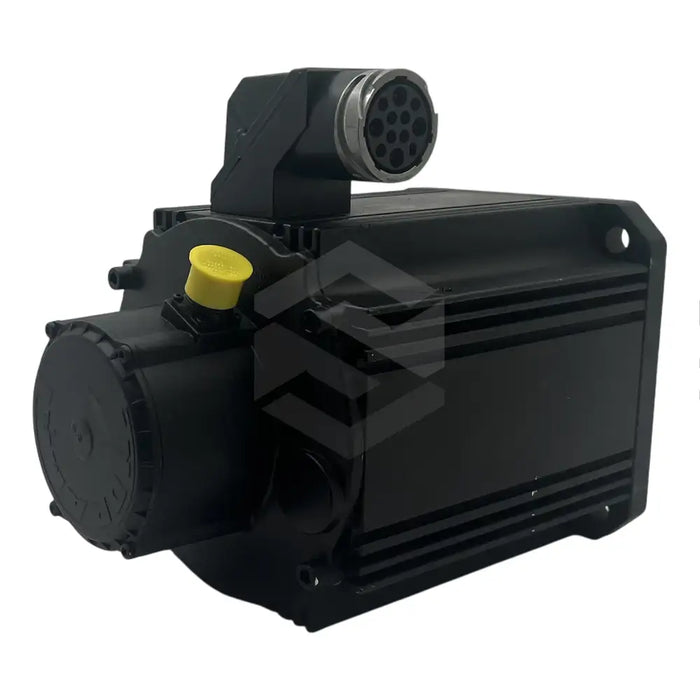

MHD112A-024-PP0-LN
The MHD112A-024-PP0-LN, a product of Bosch Rexroth Indramat, is a high-performing synchronous motor primarily utilized across various industries. Featuring an integrated multiturn encoder, it provides precise relative positioning. Its adjustable power supply enables enhanced motor speed, coupled with an output shaft with keys and a sealing ring. The motor possesses a winding resistance of 1.45 ohms and delivers a torque of 19.4 Nm with a 12A current consumption at 167 Hz rated frequency. When naturally cooled, it generates 4.8 kW of power, operating at 167 volts and spinning at 2500 RPM. The motor's time constant varies between 20 and 40 minutes, based on cooling type and overall motor temperature. Furnished with a power connector on the left side, this model can reach maximum torque of 54 Nm, with the top current consumption at 59A and winding inductance at 14 mH. For safe operation, it must be used as intended, within a temperature range of 0-40°C. The MHD112A-024-PP0-LN offers 15 Nm continuous torque and 13.1 A continuous current at standstill during natural cooling. Lightweight at 23 kg, it facilitates easy mounting. Additionally, it is suited for damp environments due to its class-F insulation, IP65 protection certification, and protective coating.
