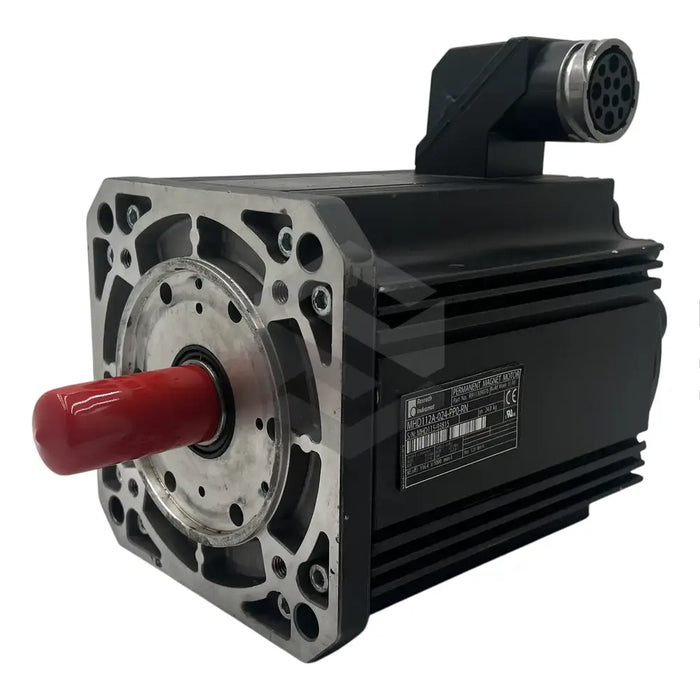

C image of MHD112A-024-PP0-RN | Main (Front Left)

MHD112A-024-PP0-RN

by Bosch Rexroth Indramat
$5,971.10 - $5,971.10
$5,971.10
$5,971.10 - $5,971.10
$5,971.10

In Stock, Ships 1 - 3 Days

The MHD112A-024-PP0-RN, crafted by Bosch Rexroth Indramat, is a high-quality synchronous motor with key technical features. It has a winding resistance of 1.45 mH, a voltage constant of 116.4 V/1000 min-1, and weighs 22.5 kilograms. The motor's rated speed is 2500 rpm, and it generates an output power of 6.4 kW with 19 Nm of rated torque, consuming 12 A of current during surface cooling. It interfaces with an absolute multiturn digital encoder system, protected with an IP65 rating and composed of F class insulating materials. The motor lacks a holding brake but employs a blower unit for temperature regulation and is capable of operating in temperatures ranging from 0 to +40 degrees Celsius and at elevations up to 1000 meters above sea level. In natural cooling conditions and at a temperature of 100 K, it generates 4.8 kW of rated power and 13.8 Nm of rated torque, utilizing a current and voltage of 9.1 A and 332 volts.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

MHD112A-024-PP0-RN

Product Type

Synchronous motor

Winding Resistance

1.45 mH

Voltage Constant

116.4 V/1000 min-1

Torque Constant

1.28 Nm/A

Weight

22.5 kilograms

Rated Frequency

167 Hz

Inertia Moment

110 x 10-4 kgm2

Winding Inductivity

14 mH

Encoder System

Absolute multiturn digital

Output Shaft

Keyed

Rated Speed

2500 rpm

Output Power

6.4 kW

Rated Torque

19 Nm

Current during Surface Cooling

12 A

Protection Rating

IP65

Insulating Materials Class

F

Casing Color

Black

Casing Layer Thickness

40µm

Stator Windings

Capable of dissipating heat

Blower Unit

Present, regulates motor housing temperature

Holding Brake

Absent

Operational Temperature Range

0 to +40 degree Celsius

Maximum Operational Elevation

1000 meters above sea level

Rated Power under Natural Cooling

4.8 kW

Rated Torque under Natural Cooling

13.8 Nm

Rated Current under Natural Cooling

9.1 A

Rated Voltage under Natural Cooling

332 volts.
