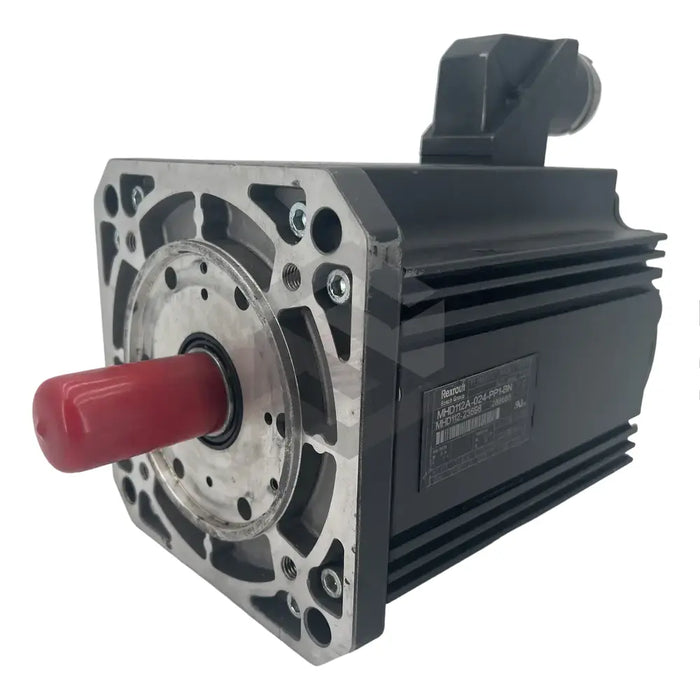

C image of MHD112A-024-PP1-BN | Main (Front Left)

MHD112A-024-PP1-BN

by Bosch Rexroth Indramat
$13,990.00 - $13,990.00
$13,990.00
$13,990.00 - $13,990.00
$13,990.00

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MHD112A-024-PP1-BN is a synchronous servo motor with a flange-mounted frame. With a frame size of 112, and a winding code of 024, it measures 192mm in flange size, 309mm in motor length, and 130mm in centering diameter. The motor's shaft, featuring a keyway and seal ring, is 40mm in diameter. Its IP65 rating ensures suitability for close machinery proximity, potentially cutting down maintenance and total system ownership costs. It is augmented with digital servo feedback and a built-in multiturn absolute encoder for efficient communication with the drive controller. The unit, featuring a 22Nm rated holding brake, utilizes natural convection or surface cooling and operates within 0 to 40 degrees Celsius. The motor, capable of a maximum speed of 4000 RPM, weighs approximately 23kg. It's coated with prime black coat (RAL 9005).

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product

MHD112A-024-PP1-BN Synchronous Servo Motor

Motor Frame Size

112

Motor Frame Length

A

Motor Winding Code

024

Mounting Style

Flange Mounted

Motor Flange Size

192 millimeters

Centering Diameter

130 millimeters

Motor Length

309 millimeters

Shaft Diameter

40 millimeters

Shaft Style

Keyway with Sealing Ring

Rating

IP65

Feedback Type

Digital Servo Feedback with Integrated Multiturn Absolute Encoder

Power Connector

Side B of housing

Holding Brake

22 Nm, released with 24V DC Signal

Cooling System

Natural Convection or Surface Cooling

Recommended Ambient Temperature

0 to 40 degrees Celsius

Maximum Speed

4000 RPM

Weight

23 kilograms

Surface Coating

Prime black coat (RAL 9005)
