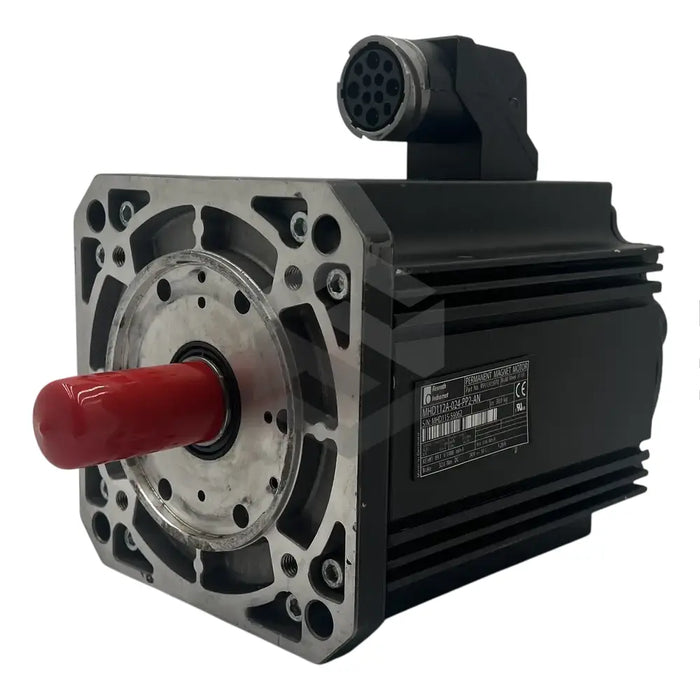

C image of MHD112A-024-PP2-AN | Main (Front Left)

MHD112A-024-PP2-AN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

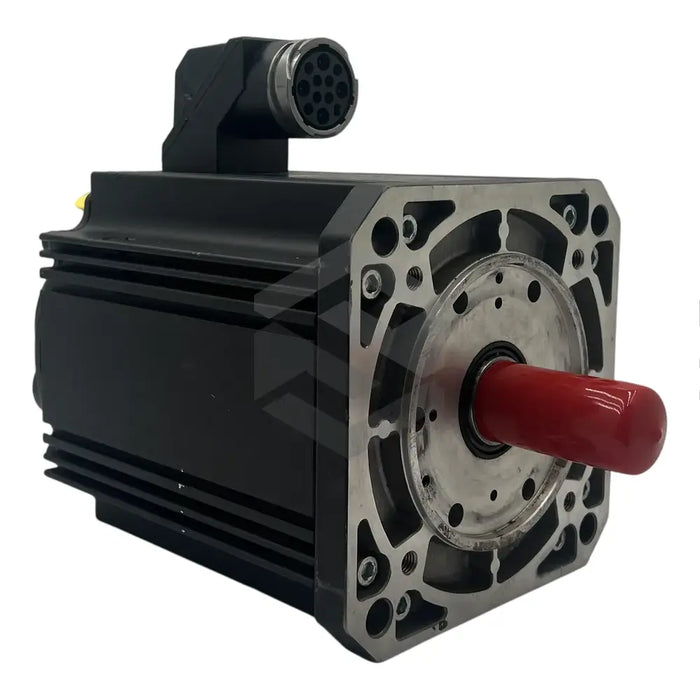

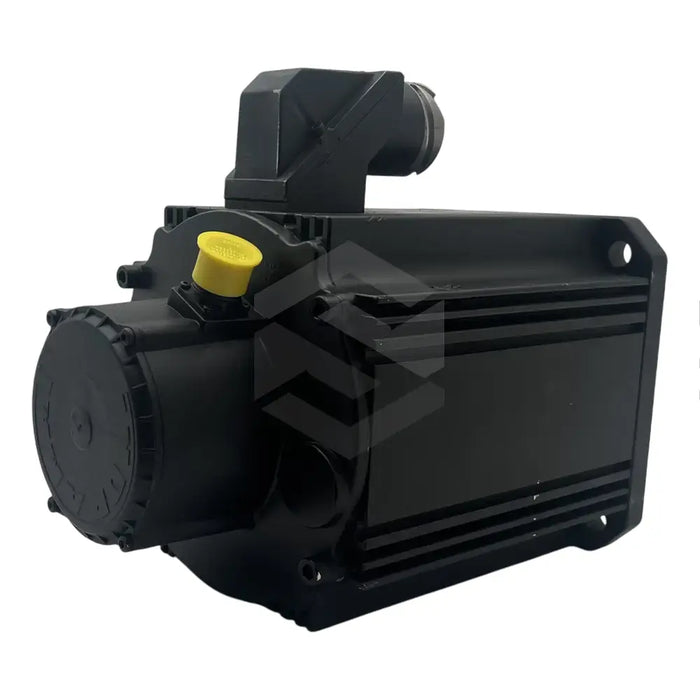

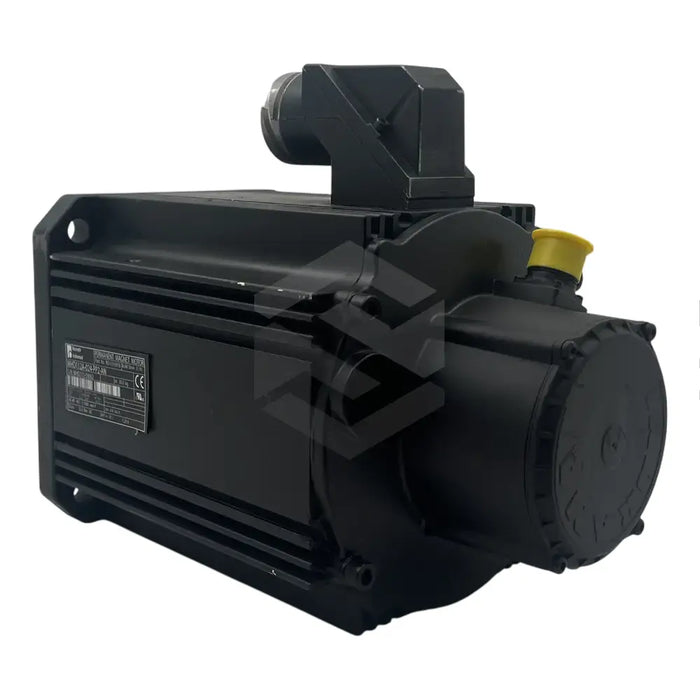

The MHD112A-024-PP2-AN servo motor is a product of Bosch Rexroth Indramat, renowned for its prominent use in machine tools, handling and automation procedures, and printing machines. Its distinguishing features include high reliability, maintenance-free functioning, overload protection, and exceptional overload capability. It can be conveniently installed in any position and coupled with Bosch drive controllers. With an incorporated multiturn encoder for feedback, the motor's main shaft holds a 40mm diameter and comes with a keyway and a seal. An IP65 protection rating ensures complete dust security and resistance against low-pressure water jets. The motor operates at a rated speed of 2000 RPM, up to a maximum of 4000 RPM, and cools naturally or through surface cooling. The MHD112A-024-PP2-AN weighs 23 kilograms and accommodates a 32 Nm holding brake. The suitable ambient temperature range for the motor is 0 to 40 degrees Celsius.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Servo Motor

Motor Series

MHD

Motor Model Number

MHD112A-024-PP2-AN

Applications

Machine tools, handling, automation, printing machines

Reliability

High

Maintenance

Maintenance-free operation

Installation

Can be installed in any position

Overload Protection

Yes

Encoder

Integrated multiturn encoder

Motor Shaft Diameter

40 millimeters

Protection Rating

IP65

Power Source


Drive controller via power cable

Cooling Method

Natural convection or surface cooling

Rated Speed

2000 RPM

Continuous Torque (Natural Convection)

15 Nm

Continuous Current at Standstill (Natural Convection)

13.1 Amps

Continuous Torque (Surface Cooling)

22.5 Nm

Continuous Current at Standstill (Surface Cooling)

19.7 Amps

Peak Current Output

59 Amps

Rotor Inertia

0.0110 kg m2

Maximum Speed

4000 RPM

Number of Pole Pairs

Four

Ambient Temperature

0 to 40 degrees Celsius

Weight

23 kilograms

Holding Brake

32 Nm

Centering Diameter

130 millimeters.
