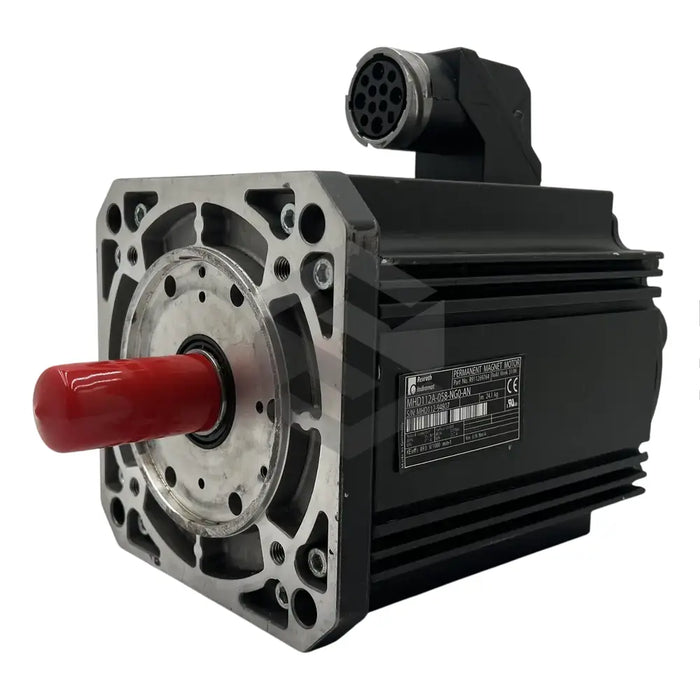

C image of MHD112A-058-NG0-AN | Main (Front Left)

MHD112A-058-NG0-AN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat MHD112A-058-NG0-AN is a synchronous motor that requires a drive controller for operation. It features standardized electric connections, including a power connector equipped with a temperature sensor connection, and a feedback connector fitted with an encoder connection. Designed for maximum installation elevations of 1000m above sea level, the motor can facilitate loads if shock decoupled. It supports power supply through either a bayonet catch or a flange socket with a screwed connection. The unit, weighing 23kg without a blower attachment, has a rated speed of 3500min-1 and executes Class F insulation. The product's motor housing varnish is resistant against weather, diluted acids and lyes, chalking and coloring. The device has a total length of 309m and an output direction to its A-side. It contains a cylindrical shaft end with DSI M10 centering hole, conforming to DIN 332 Part 2 specifications.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

MHD112A-058-NG0-AN

Motor Type

Synchronous Motor

Required Use

Must be operated with a drive controller

Electrical Connections

Standardized power and feedback connector

Temperature Sensor

Integrated in power connector

Encoder Connection

Incorporated in feedback connector

Power Supply Connection Type

Bayonet catch or flange socket with a screwed connection

Max Installation Elevation

1000m above sea level

Load Carrying Capability

Only shock decoupled loads

Additional Connector

Option for sealing air connector

Rated Speed

3500min-1

Weight

23kg (without blower attachment)

Insulation Class

Class F (as per DIN VDE 0530, Part 1 specifications)

Motor Housing Varnish

Resistant to weather, diluted acids and lyes, chalking and coloring

Encoder Feedback

Digital servo feedback

Permissible Axial Force

0.36 times the permissible radial force

Total Length

309m

Power Connector Output Direction

A-side of the unit

Shaft Specifications

Cylindrical end with DS M10 centering hole (DIN 332 Part 2)

Time Constant

40 minutes (with natural convection cooling mode)

Handling Instructions

No tipping or dropping during storage and transport

Labelling

Type label with type designation and technical details.
