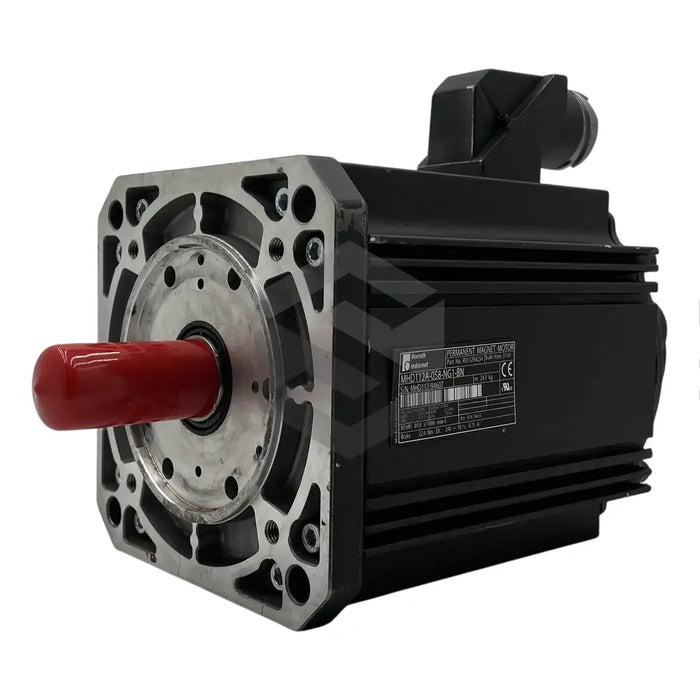

C image of MHD112A-058-NG1-BN | Main (Front Left)

MHD112A-058-NG1-BN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat MHD112A-058-NG1-BN servo motor is a powerful and reliable automated motor widely used in various industries including printing, paper, and packaging. This synchronous servo motor is designed to partner with an intelligent drive controller, and offers superior functionality due to its digital servo feedback (HSF) motor encoder. It's easily mounted through four standard holes within its metal flange, with a flange size of 115mm and a centering diameter of 95mm. For secure power transmission, it features a plain output shaft with end-sided centering hole, and hassle-free electrical connection through a side B power output connector. Boasting an IP65 degree of protection, the motor handles adverse climates and operates continuously at speeds of 4000 rpm. The device, which weighs 23kg, is cooled via a liquid-based system which dissipates heat to protect the motor winding. The unit operates optimally at heights up to 1000 MSL and temperatures from 0 to 40 degrees Celsius.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

manufacturer

Bosch Rexroth Indramat

model number

MHD112A-058-NG1-BN

product type

synchronous servo motor

applications

printing and paper industries, handling and automation, and packaging machines

mounting

four standard holes in the metallic flange

flange size

115mm

centering diameter

95mm

encoder type

digital servo feedback (HSF)

shaft type

plain output shaft with an end-sided centering hole

brakes

electronically released holding brakes

power connector

output power connector in direction of side B

cooling type

liquid-type cooling

operating loads

high

maximum speed

4000 revolutions per minute

mass

23 kg

degree of protection

IP65

installation height

1000 above MSL

max ambient temperature

0 to +40 degree Celsius
