MHD112A-058-NG1-LN

Original price $0.00 - Original price $0.00
Original price
Request a Quote
$0.00 - $0.00
Current price Request a Quote

Request a quote

Add a Message

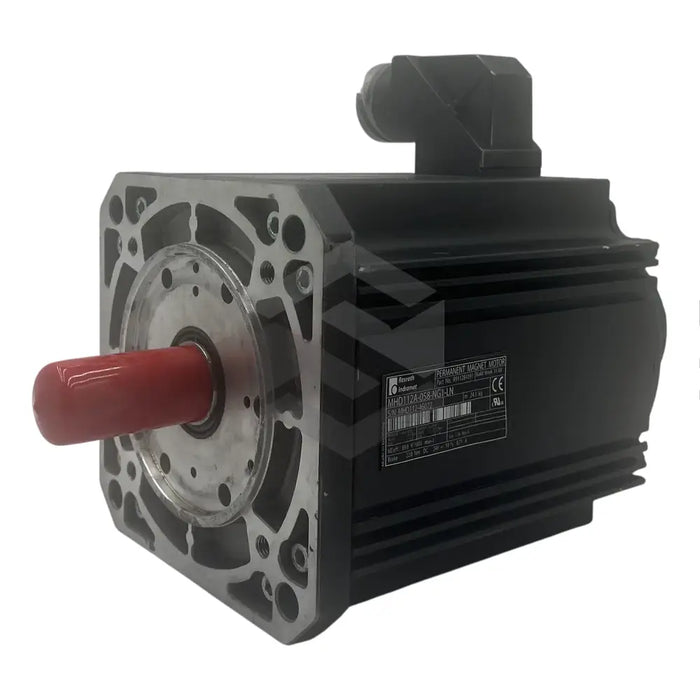

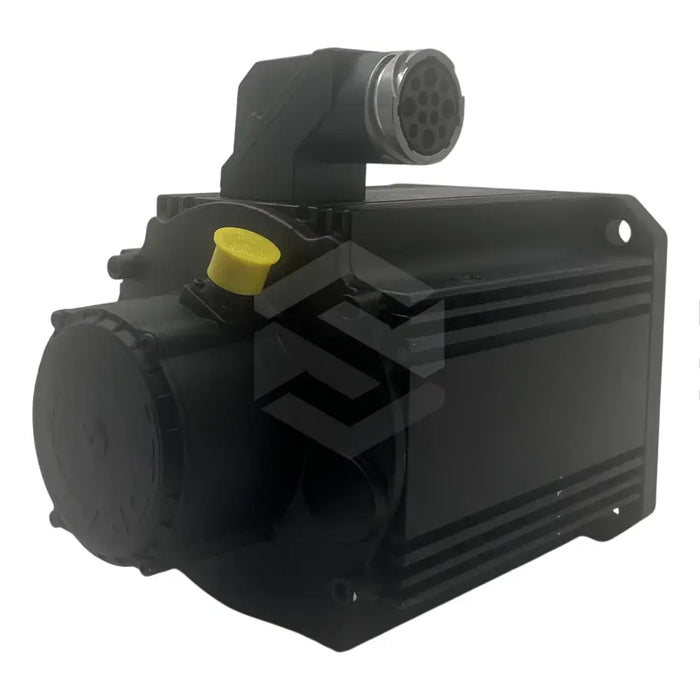

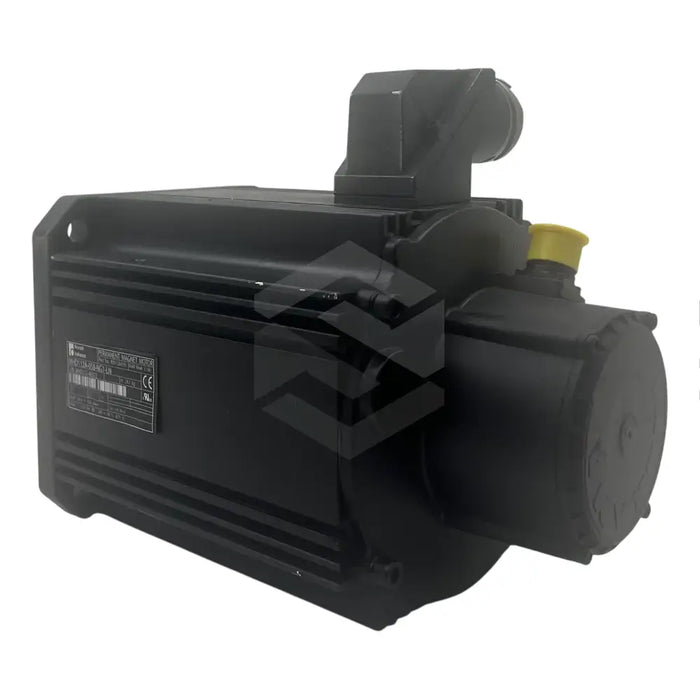

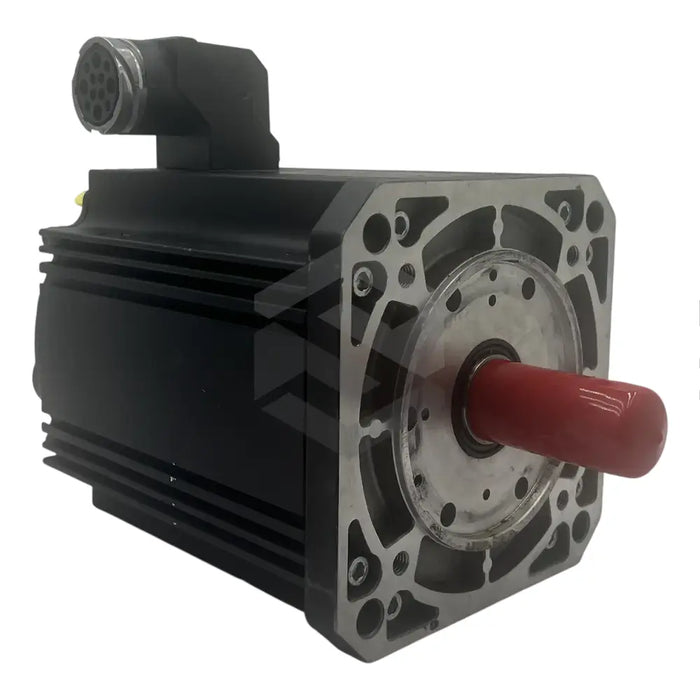

The MHD112A-058-NG1-LN is a high-efficiency synchronous servo motor manufactured by Bosch Rexroth Indramat. Sporting a rate of 3500 revolutions per minute at a natural 60K temperature, this machine is designed for liquid cooling and holds a time constant of 40 minutes. With a weight of 23kg, the motor boasts of an insulation as per class F specifications, inclusive of an IP65 enclosure. It has permissible installation parameters of 1000 MSL height and a temperature range from 0 to 40 degrees Celsius. The motor is also equipped with a relative encoder system, and features an easy-install aluminum flange. The 4-pole pair motor delivers a torque constant of 0.98 Nm/A, a voltage constant of 89 V/1000 min, and a maximum torque of 54 Nm. The housing is coated with prime black in a/w RAL 9005 and the servo motor includes electronically released holding brakes.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


Bosch Rexroth Indramat

Model


MHD112A-058-NG1-LN

Product Type


Synchronous Servo Motor

Rated Speed


3500 revolutions per minute

Cooling Type


Liquid Circulation

Time Constant


40 min

Weight


23 kg

Insulation Class


F Specifications

Enclosure


IP65

Permissible Installation Height


1000 MSL

Permissible Ambient Temperature


0 to 40 degree Celsius

Encoder System


Relative

Flange Material


Aluminum

Peak Current


77 A

Winding Inductivity


7.8 mH

Pole Pairs


4

Torque Constant


0.98 Nm/A

Voltage Constant


89 V/1000 min

Winding Resistance


0.86 Ohm

Theoretical Maximum Torque


54 Nm

Housing Color


Black

Rotor Inertia


111.0 x 10-4 kgm2

Brakes


Electronically Released

Power Connector Location


Left Side of the Motor.
