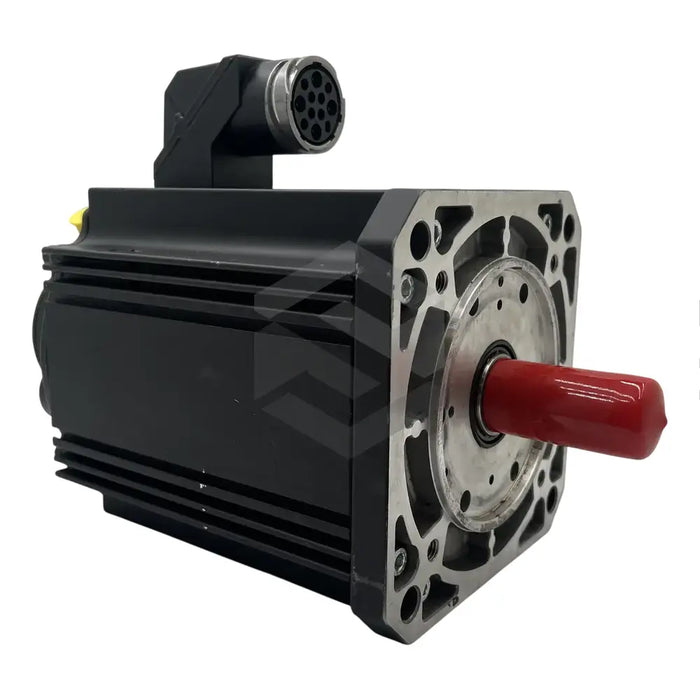

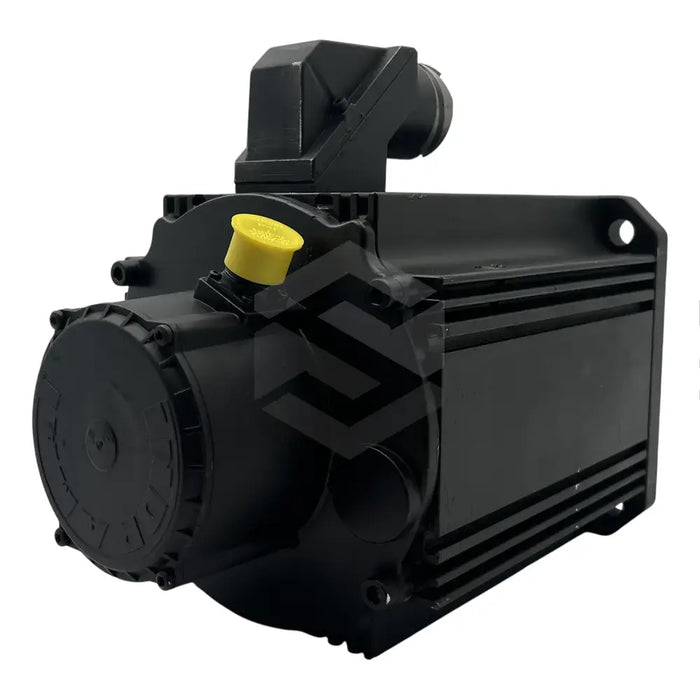

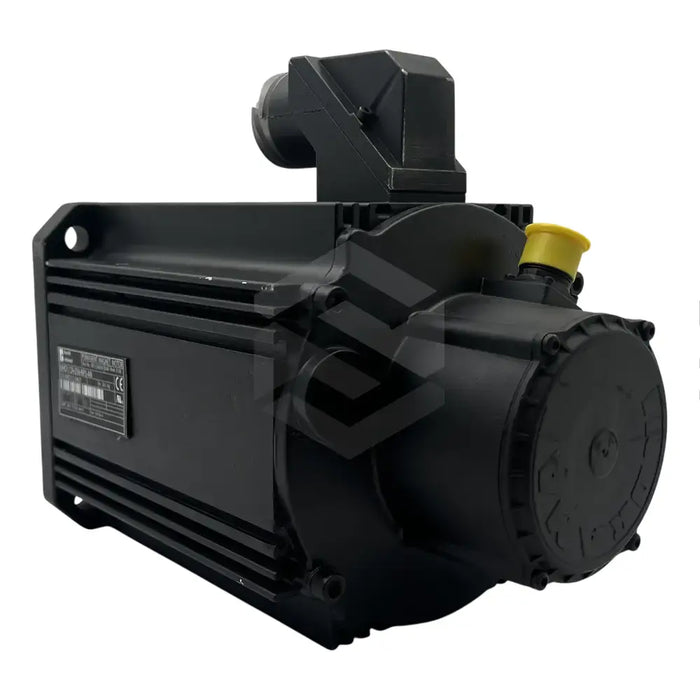

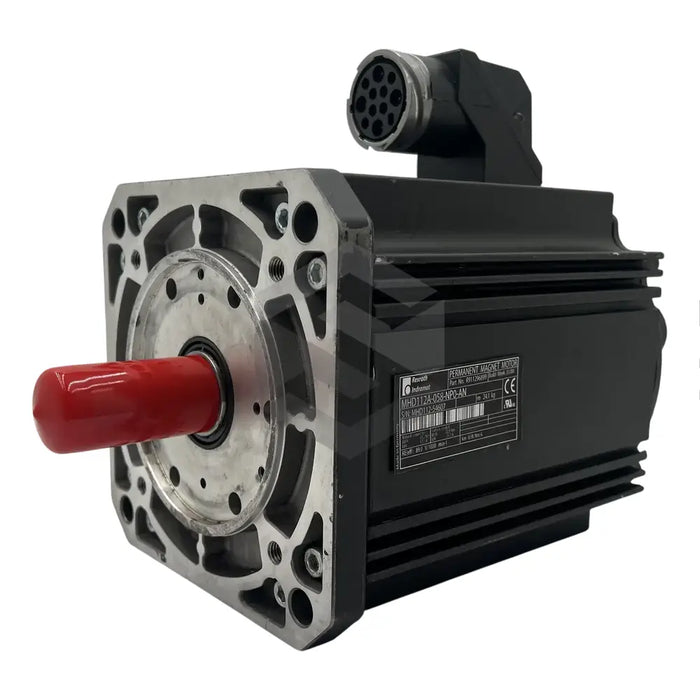

The MHD112A-058-NP0-AN model by Bosch Rexroth Indramat is a top-quality synchronous servo motor, designed for optimal performance in high dynamic operations. It operates at a peak load current of 77A, with an inherent moment of inertia of 110 x 10-4 kgm2. The motor can achieve a maximum torque of 54 Nm and a top speed of 4500 RPM. It operates within an ambient temperature range of 0 - 40 degrees Celsius and is housed in an IP 65 enclosure for protection against harsh environmental factors. This 23 kg model does not include holding brakes, and it generates 0.98 Nm/A torque with a voltage constant of 89 V/1000 rpm at 20 degrees Celsius. It has four pole pairs and a winding inductivity of 7.8 mH. It is designed to operate with superior motion controls and is optimally cooled via liquid cooling. Information on its purchase can be found at Servo Supplier.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


Bosch Rexroth Indramat

Model Number


MHD112A-058-NP0-AN

Type


Servo Motor

Maximum Current


77A

Moment of Inertia


110 x 10-4 kgm2

Maximum Torque


54 Nm

Maximum Speed


4500 RPM

Ambient Temperature Range


0 - 40 degree Celsius

Protection Level


IP 65

Weight


23 kg

Holding Brake


Not included

Torque at 20 degree Celsius


0.98 Nm/A

Voltage Constant


89 V/1000 rpm

Pole Pairs


4

Winding Inductivity


7.8 mH

Storage Temperature


-20 to +80 degree Celsius

Cooling Method


Liquid cooling
