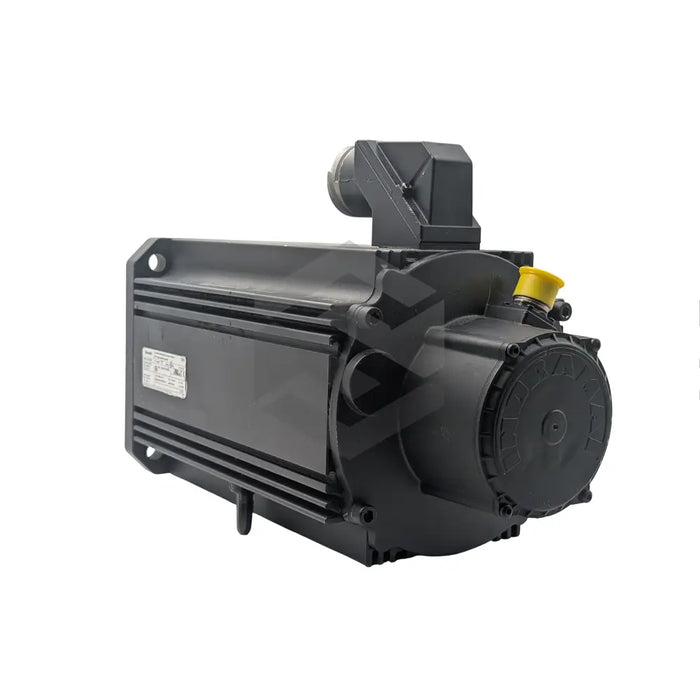

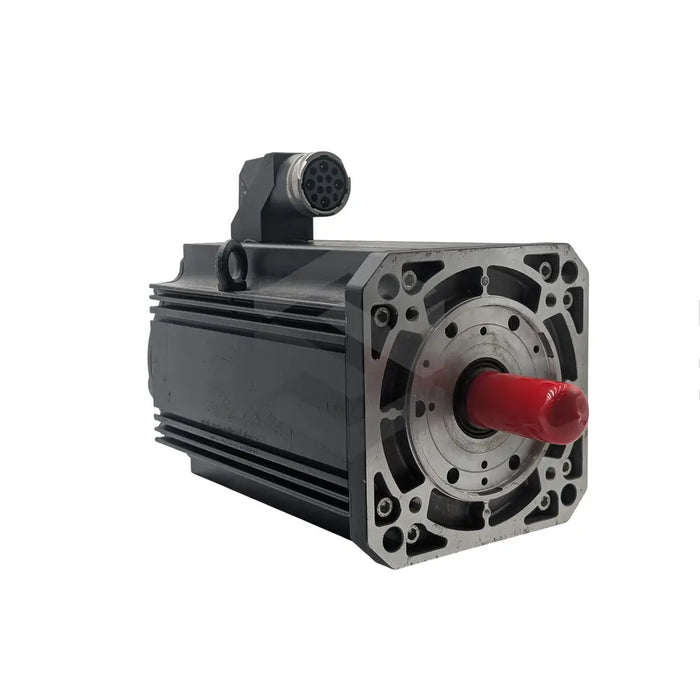

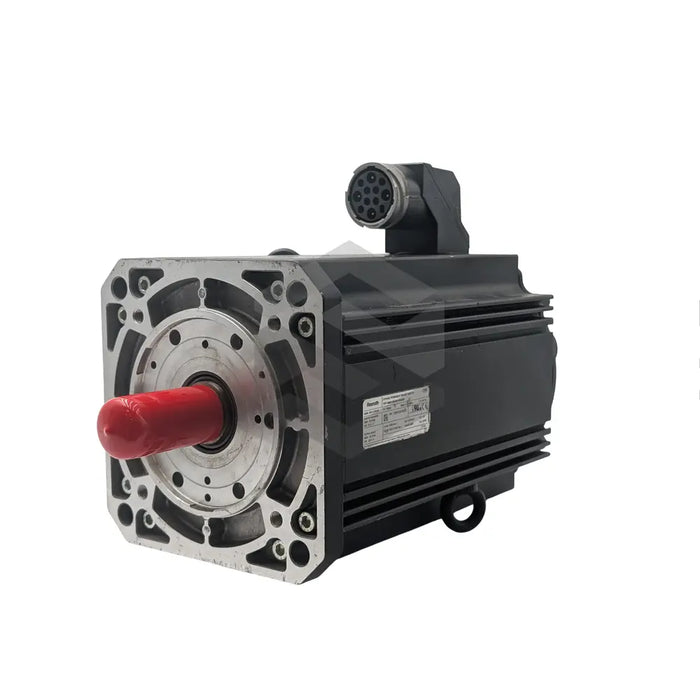

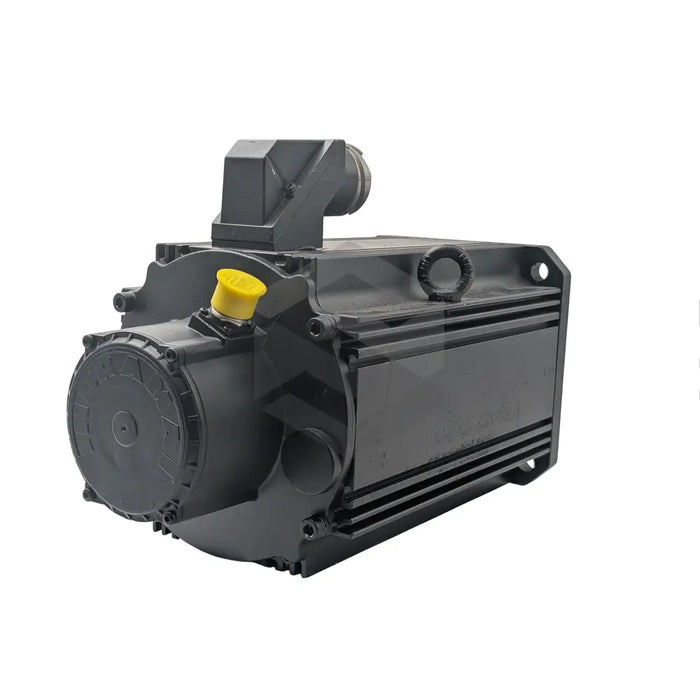

The MHD112B-024-NG0-LN is a top-notch, maintenance-free servo motor from the MHD series by Bosch Rexroth Indramat, renowned for creating advanced automation systems. It employs special magnets in its design to accomplish low inertia masses. This unique feature allows it to perform continuous start-stop operations at high frequencies without wearing out. It sports a robust temperature monitoring system and possesses a flange size of 192mm and a centering diameter of 130mm. Protected by a completely sealed, dustproof and waterproof (IP 65 rated) housing, the MHD112B-024-NG0-LN can operate safely even under harsh conditions. Its plain-type shaft with a sealing ring ensures friction-locked shaft-hub connection, conforming to DIN 3760 - design A. The black prime coat varnish enhances resistance against weathering, chalking, diluted acids, diluted lyes, and coloring. It runs nominally at 2,500rpm, but can achieve a maximum speed of 4,000rpm.
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: MHD
  • Product Model: MHD112B-024-NG0-LN
  • Applications: Machine tools, Printing and paper industries, Handling and automation systems, Packaging and food processing machines
  • Motor Type: Synchronous Servo Motor
  • Flange Size: 192mm
  • Centering Diameter: 130mm
  • Features: Electronic commutation, High overload capability, Temperature monitoring system
  • Environmental Protection Rating: IP 65 according to EN 60529
  • Shaft Type: Plain Type with Shaft Sealing Ring
  • Shaft Sealing Design: According to DIN 3760 - design A
  • Coating: Black Prime Coat Resistant to Weathering, Coloring, Chalking, Diluted Acids and Diluted Lyes
  • Nominal Speed: 2,500 revolutions per minute
  • Maximum Speed: 4,000 revolutions per minute.
