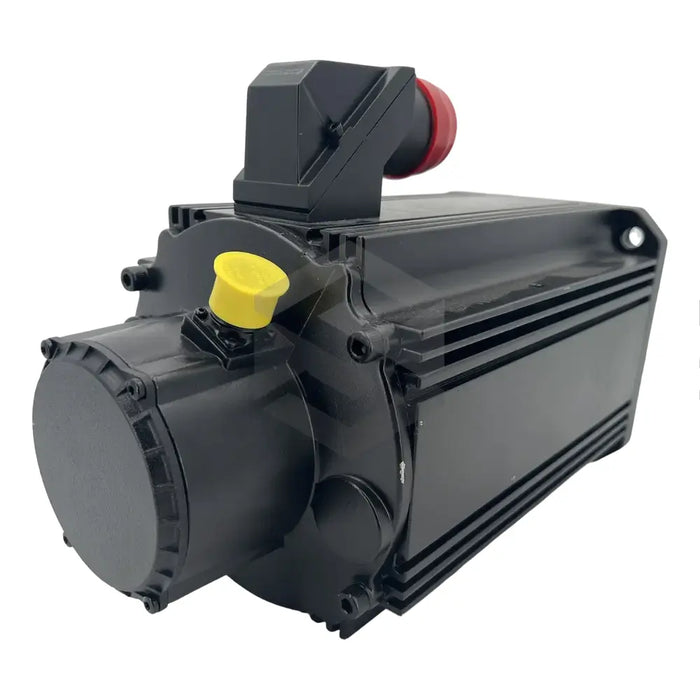

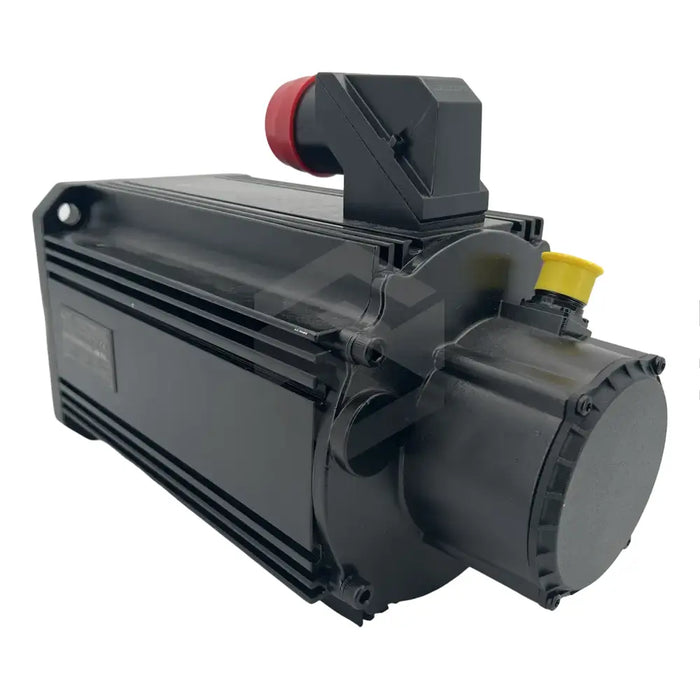

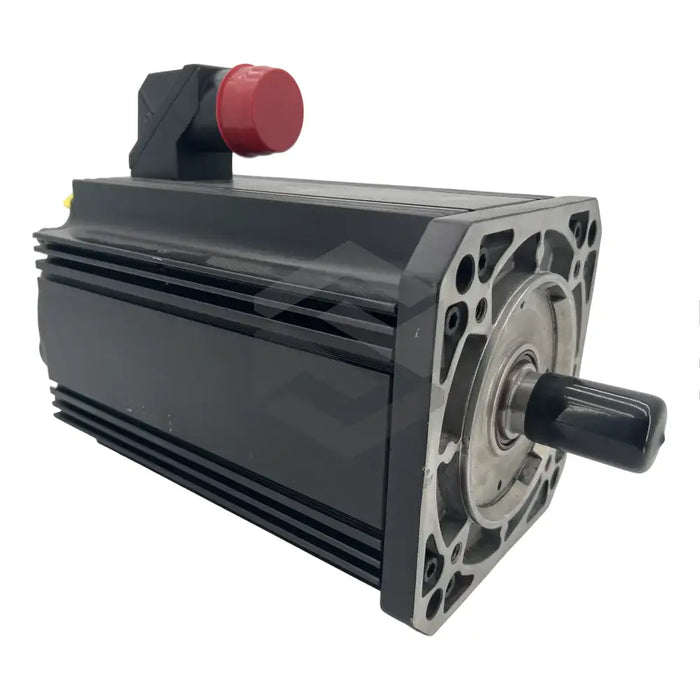

C image of MHD112B-024-NG2-AN | Front Right

MHD112B-024-NG2-AN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The MHD112B-024-NG2-AN is a reliable, high-performance servo motor manufactured by Bosch Rexroth Indramat. As part of the MHD series, it is constructed with low-inertia synchronous motors that contribute to efficacious automation systems. These motors are widely applied to various industries including machine tools, packaging, and food processing. The MHD112B-024-NG2-AN boasts high operational stability and overload capacity due to its efficient heat transfer mechanism. Running at a nominal speed of 3,500 RPM, it can reach a maximum speed of 4,000 RPM. The motor, with a peak current of 98.5A and a maximum torque of 102.0Nm, permits repetitive start-stop operations due to its electronic commutation feature. Its lifetime-lubricated bearings support direct mounting of high radial load components. The optical measurement encoder system ensures accurate motor position detection with a system accuracy of ±0.5 angular minutes. The MHD112B-024-NG2-AN offers protection rating IP 65 as per EN 60529 standards.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

MHD112B-024-NG2-AN

Motor Series

MHD series

Motor Usage

Rapid-response automation systems

Motor Type

Synchronous

Inertia Mass

Low due to unique magnets

Common Uses

Handling and automation systems, machine tools, printing and paper industries, packaging and food processing machines

Motor Features

Maintenance-free, high operational reliability, high overload capability

Heat Transfer Method

From stator windings to the wall of housing

Nominal Speed

3500 revolutions per minute

Top Speed

4000 revolutions per minute

Pole Pairs

4

Rotor Moment of Inertia

192.0 x 10-4 kgm2

Peak Current

98.5A

Maximum Theoretical Torque

102.0Nm

Commutation Feature

Electronic, permits the motor for continuous start-stop operations

Mounting

Direct overhung mounting of pinions and belt pulleys

Bearings

Designed for high radial loads, lifetime lubrication, nominal lifetime of 30,000 hours

Encoder System

Digital servo feedback

Measuring Principle

Optical

System Accuracy

±0.5 angular minutes

Position Detection

Detects the absolute indirect position within 4,096 motor revolutions

Protection Rating

IP 65 according to EN 60529
