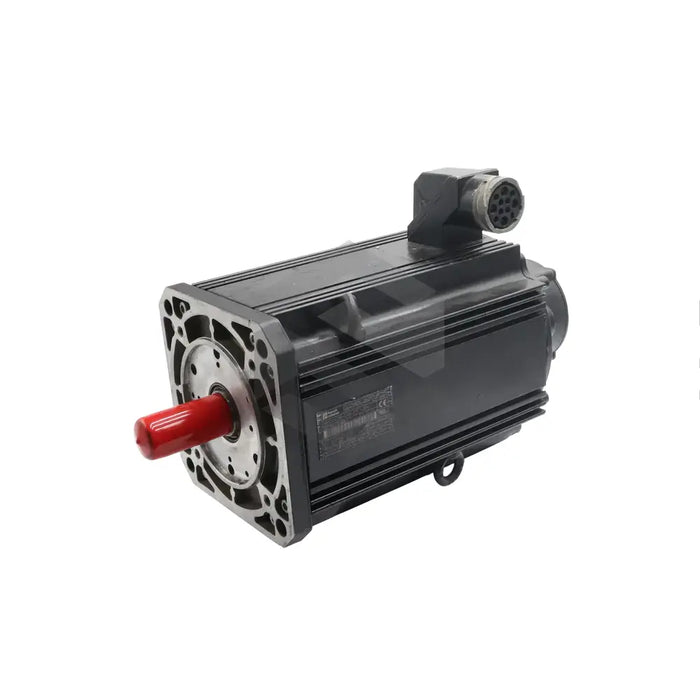

C image of MHD112B-024-NP0-LN | Main (Front Left)

MHD112B-024-NP0-LN

by Bosch Rexroth Indramat
$2,581.31 - $2,581.31
$2,581.31
$2,581.31 - $2,581.31
$2,581.31

In Stock, Ships 1 - 3 Days

The MHD112B-024-NP0-LN is a user-friendly servo motor produced by Bosch Rexroth Indramat, known for manufacturing innovative drive solutions. Suitable for various applications, this servo motor has winding designations of 112 and frame length B. The operating temperature range is 0 to 40 ° C, and it has an insulation class of 155, making it adaptable to different environments. Weighing 34kg, it can reach a characteristic motor speed of 2000 rpm, with a maximum speed of 4000 rpm. Given its housing design, the MHD112B-024-NP0-LN with a winding inductivity of 7.6 mH is best for surface cooling or natural convection. It also includes a digital servo feedback encoder, rotatable plug, shaft, sealing ring, and keyway, serving up to a theoretical maximum torque of 102 Nm. Notably, its rated current and torque, as well as the thermal time constant, vary depending on the cooling mechanism and motor overtemperature.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

MHD

Model Number

MHD112B-024-NP0-LN

Motor Type

Servo

Winding Designation

112

Frame Length

B

Operating Temperature Range

0 to 40 °C

Insulation Class

155

Weight

34 kg

Characteristic Speed

2000 revs/min

Maximum Speed

4000 revs/min

Winding Inductivity

7.6 mH

Cooling Type

Surface Cooling or Natural Convection

Encoder Type

Digital Servo Feedback

Connection Type

Rotatable Plug

Shaft Type

Sealing Ring and Keyway

Theoretical Max Torque

102 Nm

Torque Constant at 20 degrees C

1.43 Nm/A

Continuous Torque at Standstill (60K overtemperature, natural convection)

28.0 Nm

Continuous Standstill Current (60K overtemperature, natural convection)

21.9 A.
