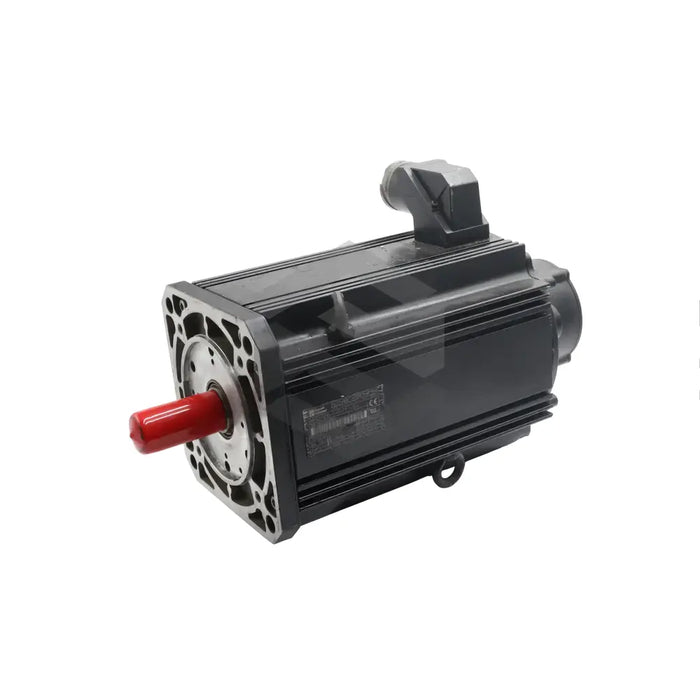

C image of MHD112B-024-PP0-RN | Main (Front Left)

MHD112B-024-PP0-RN

by Bosch Rexroth Indramat
$2,581.31 - $2,581.31
$2,581.31
$2,581.31 - $2,581.31
$2,581.31

In Stock, Ships 1 - 3 Days

The MHD112B-024-PP0-RN, a product from industry leader Bosch Rexroth Indramat, is a high-performing synchronous motor suitable for a multitude of industrial applications. Boasting a winding code of 024, inductivity of 7.6 mH, and resistance of 0.58 ohms, it is designed for durability and optimal power conservation. At a weight of 34 kg, this motor operates with a rated torque of 31 Nm, speed of 3500 RPM, and frequency of 233 Hz in surface cooling mode. It can handle shock-absorbing or shock-decoupled loads when correctly installed. The motor's inertia moment is 110 x 10-4 kgm2, and the power connector is conveniently located on the right side. Its inbuilt multiturn encoder regulates speed and shaft position, and it achieves 3.9 kW of rated power at 60 K using 461 volts. The MHD112B-024-PP0-RN operates efficiently at a peak of 4000 rpm, generating 102 Nm torque at +40 degrees Celsius. Note that a holding brake is not included.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

MHD112B-024-PP0-RN

Winding Code

024

Inductivity

7.6 mH

Resistance

0.58 ohms

Rated Torque

31 Nm

Rated Speed

3500 RPM

Rated Frequency

233 Hz

Weight

34 kilos

Maximum Theoretical Torque Output

102 Nm

Inertia Moment

110 x 10-4 kgm2

Power Connector Location

Right side of housing

Constant Torque (100 K)

33 Nm

Continuous Current (100 K)

26.8 A

Rated Power (60 K)

3.9 kW

Voltage Usage (60 K)

461 volts

Rated Frequency (60 K)

233 Hz

Maximum Rotational Speed

4000 rpm

Peak Current Consumption

98.5 A

Maximum Theoretical Torque

102 Nm

Optimal Operating Temperature

+40 degrees Celsius

Cooling Method

Natural and surface cooling

Holding Brake

N/A
