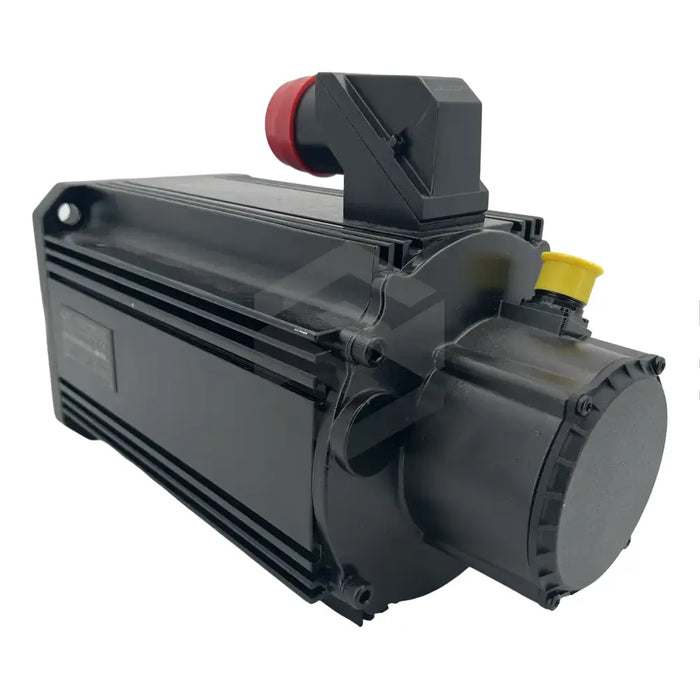

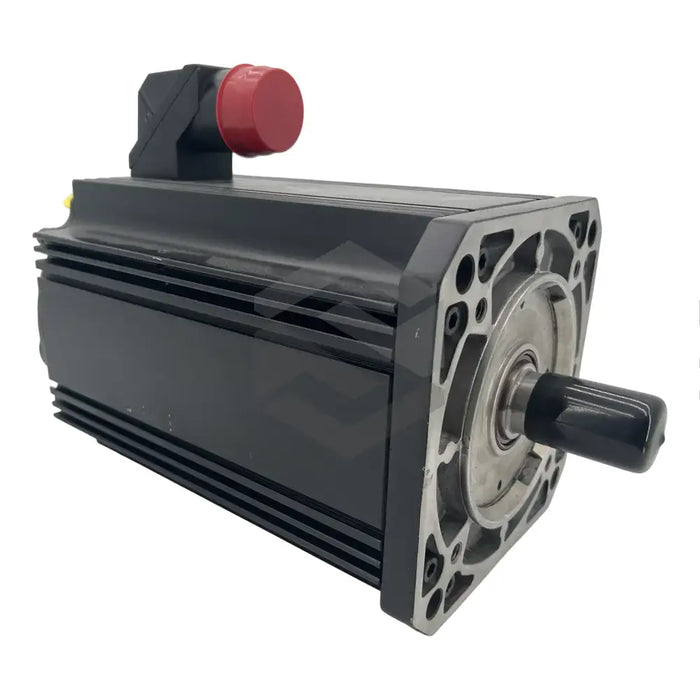

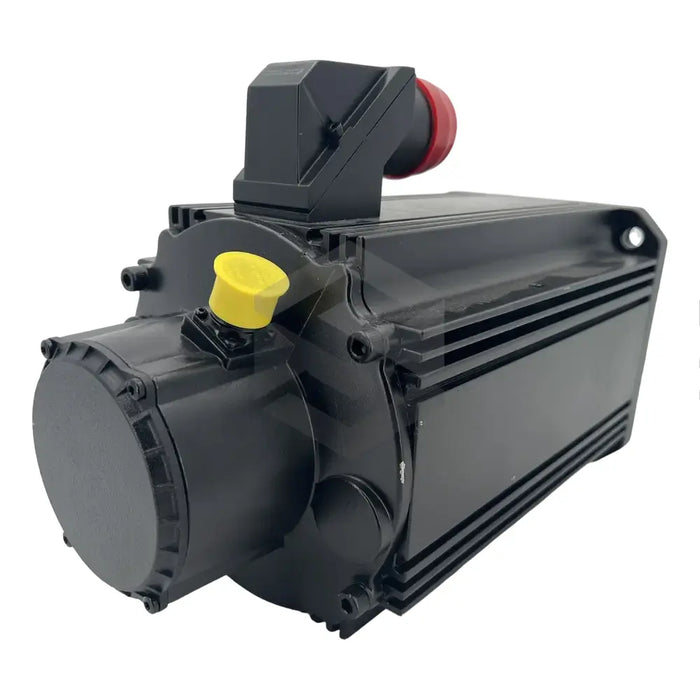

The Bosch Rexroth Indramat MHD112B-035-PP0-AN is a high-tech servo motor from the MHD series, delivering continuously varying torque from 1 to 250 Nm. Its brushless, permanent magnet design facilitates a wide range peak torque usage upon electronic commutation. Designed for a multitude of applications including automation and packaging, MHD motors are flange-mounted units installable at any angle. Smooth and quick startup is ensured by the motor encoder's data memory. The MHD112B-035-PP0-AN features a flange size of 112 with a length of B, winding code of 035, and no holding brake. However, optional brakes can be equipped as needed. Its built-in multiturn encoder allows digital servo feedback, the shaft includes a key as per DIN 6885-1 standard and a sealing ring; while the power connector is at side A. The unit weighs about 34 kg, works between 0-40°C, and can be naturally or surface cooled. It falls under the IP65 protection category and operates at a steady 2500 RPM.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Servo Motor

Series

MHD

Torque Range

1 to 250 Nm

Applications

Automation, Handling, Machine Tools, Packaging Machines

Design

Permanent Magnets, Brushless

Overload Protection

Motor Temperature Monitoring

Mounting

Flange-Mounted, Any Position

Startup

Easy, Quick, Due to Data Memory of Motor Encoder

Flange Size

112

Flange Length

B

Winding code

035

Feedback System

Integrated Multiturn Encoder, Digital Servo

Motor Shaft

Key in Accordance with DIN 6885-1, Includes Sealing Ring

Holding Brake

Not Available

Optional Brakes

22 Nm, 32 Nm, 70 Nm

Motor Power Connector

Located on Side A

Cooling

Natural Convection or Surface Cooling

Rated Speed

2500 RM

Working Temperature Range

0 to 40 degrees Celsius

Storage Temperature Range

-20 to 80 degrees Celsius

Protection Category

IP65

Weight

Approximately 34 Kilograms.
