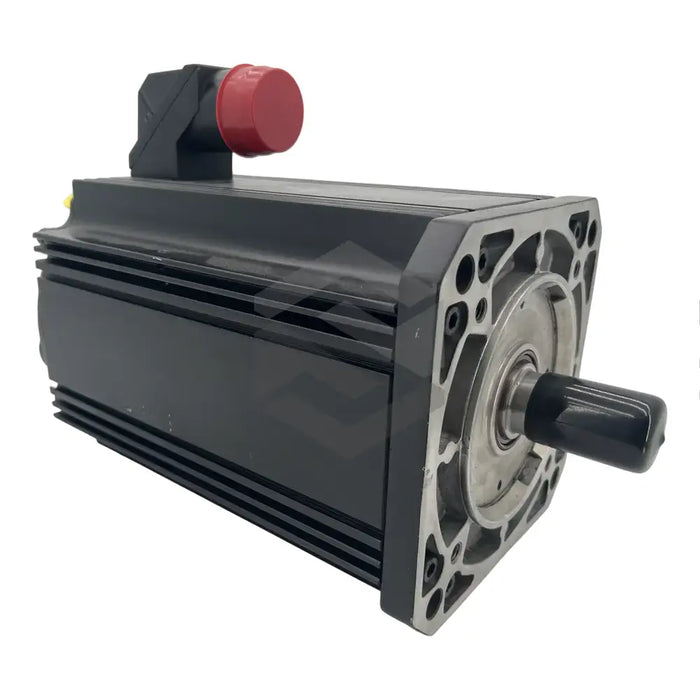

C image of MHD112B-035-PP1-AN | Front Right

MHD112B-035-PP1-AN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The MHD112B-035-PP1-AN, manufactured by Bosch Rexroth Indramat, is an advanced synchronous motor demonstrating the latest in motion control technology. This compact model features a 24V motor holding brake, generates 22 Nm of clamping torque to keep the servo axis stationary and can be installed in any approved mounting positions such as IMB5, IMV1, and IMV3. It boasts a 192 mm flange design and a 130mm centering diameter. With an IP65 rating, it offers optimum protection against harsh environmental conditions. Two cooling modes — surface and natural — are selectable depending on the operational scenario. A standard bearing and a tapered output shaft are integrated to provide steady torque of 13.5 – 33.1 Nm, supported by a constant power range of 8.9 – 21.7 A. The operational voltage spans from 280 – 294 V for natural cooling and 307 V for surface cooling. This model, suitable for use at 0 to +40 degree Celsius, features Class-F insulation and is capped with an integrated absolute encoder for precise shaft speed and position control.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

MHD112B-035-PP1-AN

Motor Type

Synchronous Motor

Holding Brake

24V, 0.71 A, 22 Nm Clamping Torque

Mounting Positions

IMB5, IMV1, IMV3

Flange Design

192 mm with centering diameter of 130 mm

Power Connector Location

A-side, Top of the motor

Environmental Protection

IP65 Protection Category

Cooling Modes

Surface Cooling and Natural Cooling

Bearing Type

Standard Bearing

Output Shaft

Tapered

Torque

13.5 – 33.1 Nm

Required Power

8.9 – 21.7 A

Produced Power

4.2 – 10.1 kW

Operating Voltage

280 – 294 V (Natural Cooling), 307 V (Surface Cooling)

Operating Temperature Range

0 to +40 degree Celsius

Mounting Height (Max)

1000 MSL

Insulation Class

Class-F

Protection Class

IP65

Shaft Control

HSF with Integrated Absolute Encoder
