MHD112B-048-NG0-LN

Original price $9,025.80 - Original price $9,025.80
Original price
$9,025.80
$9,025.80 - $9,025.80
Current price $9,025.80
Available, Shipping Varies

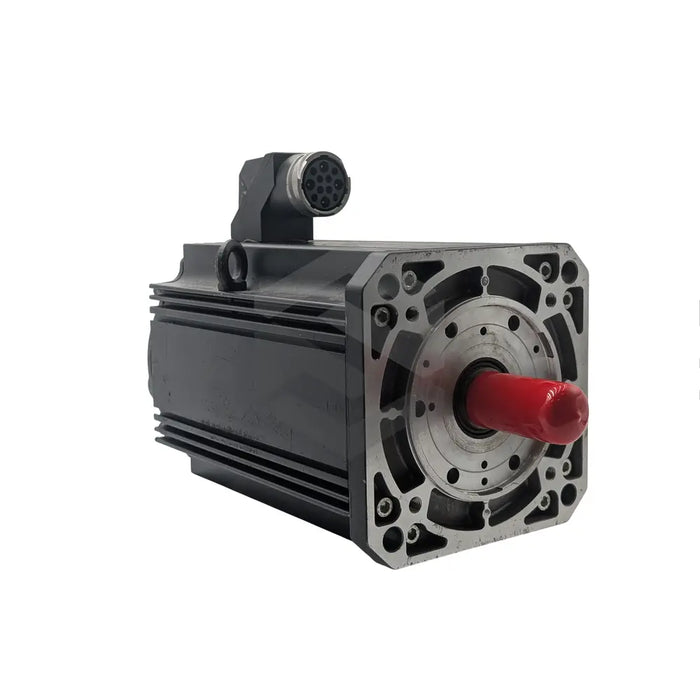

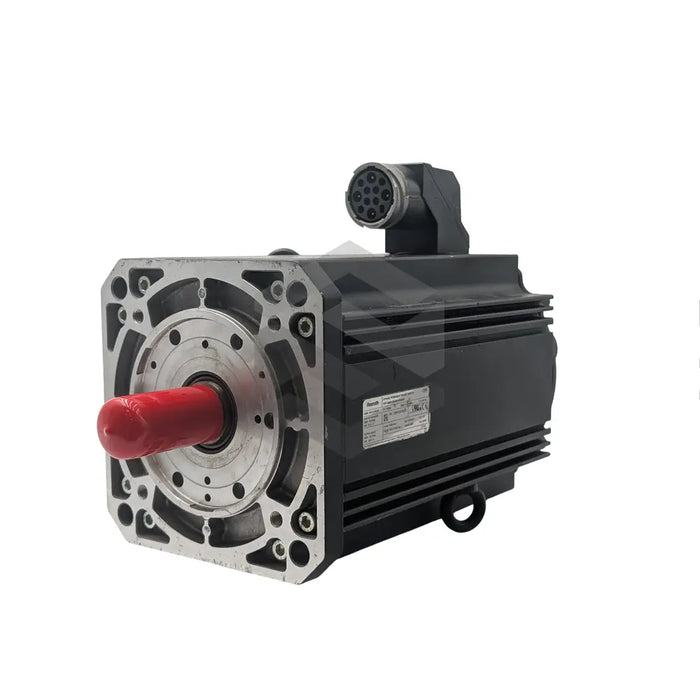

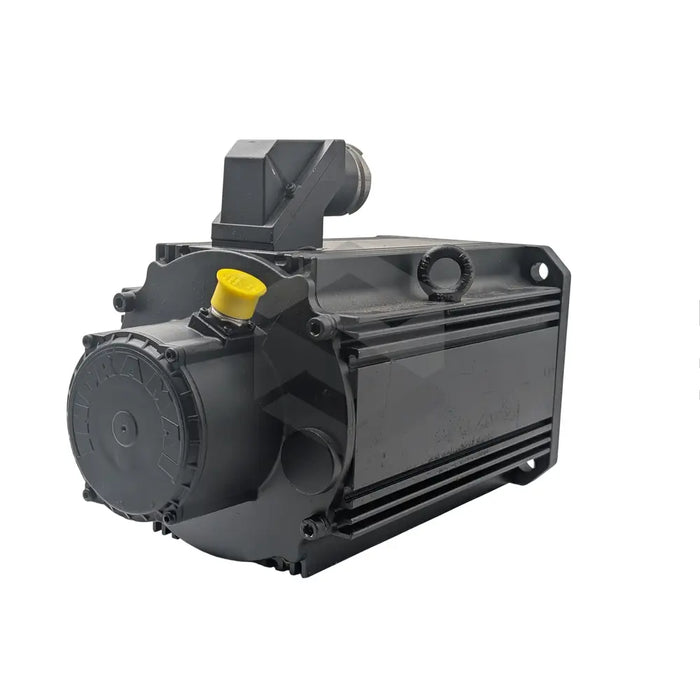

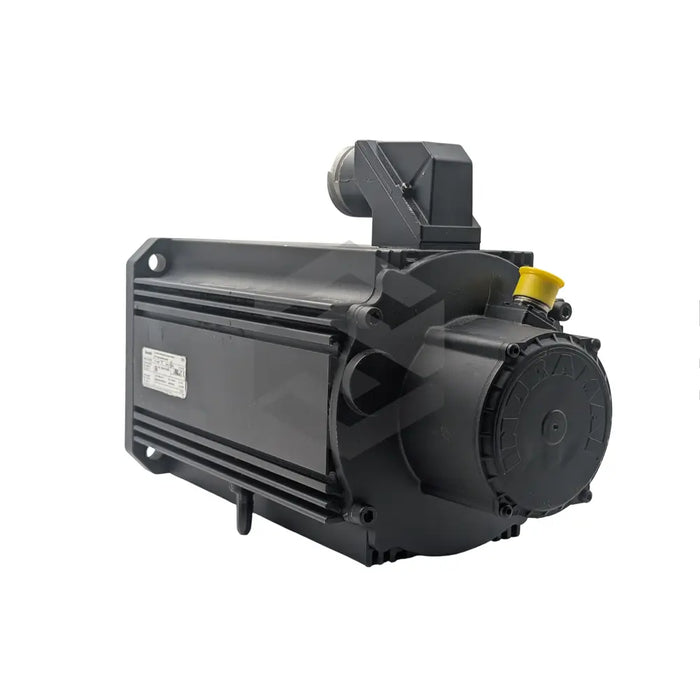

The MHD112B-048-NG0-LN is a high-performance synchronous motor produced by global automation equipment manufacturer, Bosch Rexroth Indramat. This motor excels in delivering high operational stability, even in adverse conditions, thanks to its protection against dust and liquid intrusion (IP65 rated). Operational efficiencies are achieved in a vibration-free environment and at altitudes not exceeding 1000 meters. The MHD112B-048-NG0-LN consumes 227-236 V AC power and 251 V rated voltage to produce a continuous torque of 7.7-18.1 Nm (naturally cooled) and 30.6 Nm (surface cooled) respectively. The surface cooled state includes a blower unit for temperature regulation, which can be attached axially or radially. The motor offers enhanced torque at elevated temperatures and operates reliably with company-recommended cables and controllers. The motor includes digital servo feedback for precise position control. For a dependable source of the MHD112B-048-NG0-LN synchronous motor, consider Servo Supplier.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model: MHD112B-048-NG0-LN
  • Type: Synchronous motor
  • Protection category: IP65
  • Temperature storage range: -20 to +80 degree Celsius
  • Maximum altitude for installation: 1000 meters above sea level
  • Brake: No Holding Brake
  • Power Connector Position: Left-side Top
  • Recommended Power Cable & Controllers: Company recommended only
  • Power Requirement: 227 – 236 V AC (Natural Cooling Mode), 251 V (Surface Cooling Mode)
  • Continuous Torque: 7.7 – 18.1 Nm (Natural Cooling), 30.6 Nm (Surface Cooling)
  • Torque Increase: 28 – 33 Nm at 60K/100K increase in Motor Temperature (Natural Cooling), 42 Nm at 60K/100K increase in Motor Temperature (Surface Cooling)
  • Current: 35.6 – 43.5 A (Natural Cooling), 53.4 A (Surface Cooling)
  • Winding inductance: 3.1 mH
  • Winding resistance: 0.22 Ohms (At 20 degree Celsius)
  • Feedback Mechanism: Digital Servo Feedback
  • Output Shaft: Plain Power Output Shaft
