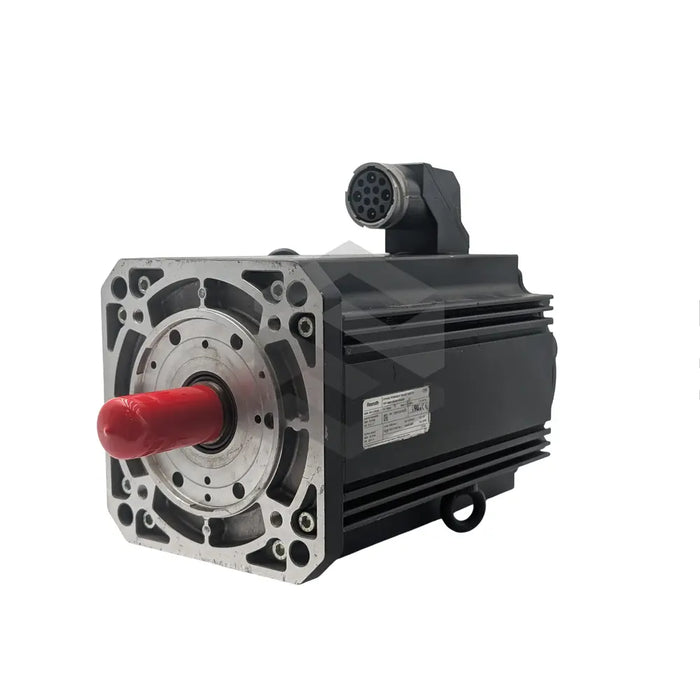

C image of MHD112B-048-NG1-AN | Main (Front Left)

MHD112B-048-NG1-AN

by Bosch Rexroth Indramat
$9,308.04 - $12,751.56
$9,308.04
$9,308.04 - $12,751.56
$9,308.04

In Stock, Ships 1 - 3 Days

Bosch Rexroth Indramat's MHD112B-048-NG1-AN model is an energy-efficient synchronous motor. With a straightforward output shaft, it ensures smooth torque transmission. The motor offers a rated voltage of 227 - 251 V, operates at a frequency of 187 Hz, and a speed of 2800 rpm with 4 pole pairs. It possesses a motor winding inductivity of 3.1 mH and a torque constant of 0.88 Nm/A. Additionally, it features an A-side power connector at the motor's top and a clamping brake generating 22 Nm of holding torque during a de-energized state. The motor weighs around 35.1 kg and can reach the maximum speed of 4500 rpm, consuming a peak current of 160 A, producing a maximum torque of 102 Nm. It operates on natural cooling during regular use and surface cooling during extreme conditions. The model is painted in black and can generate an output power of up to 11 kW.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

MHD112B-048-NG1-AN

Output Shaft

Plain

Rated Voltage

227 – 251 V

Operating Frequency

187 Hz

Rated Speed

2800 rpm

Pole Pairs

4

Motor Winding Inductivity

3.1 mH

Torque Constant

0.88 Nm/A

Clamping Brake Torque

22 Nm

Motor and Brake Weight

35.1 kg

Power Connector Location

Top of synchronous motor

Cooling Method

Natural and Surface (with blower unit)

Maximum Operating Speed

4500 rpm

Peak Current

160 A

Maximum Torque

102 Nm

Thermal Time Constant

20 mins (surface cooling), 40 mins (natural cooling)

Motor Weight

34 kg

Holding Brake Weight

1.1 kg

Motor Housing Color

Black

Maximum Output Power

11 kW
