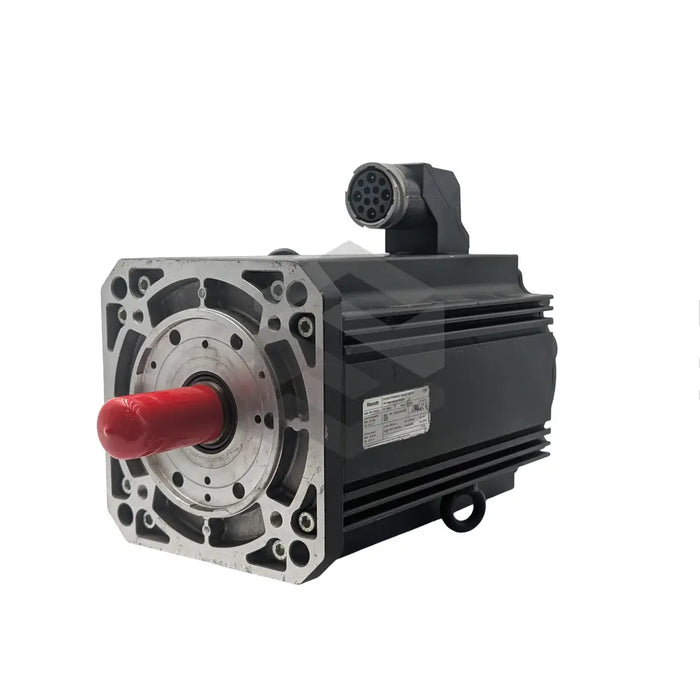

C image of MHD112B-048-NG1-BN | Main (Front Left)

MHD112B-048-NG1-BN

by Bosch Rexroth Indramat
$9,308.04 - $12,751.56
$9,308.04
$9,308.04 - $12,751.56
$9,308.04

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MHD112B-048-NG1-BN is a flange-mounted synchronous motor widely used in machine tools, packaging machines, food machines, and automation. Its frame size is 112 with a winding code of 048, and it supports a 130mm motor centering diameter, 32mm shaft diameter, and 192mm flange size. The motor measures an overall length of 375mm and weighs approximately 34kg. It offers speeds up to 4500 RPM and operates reliably at a rated 2800 RPM. The motor housing has an IP65 rating and can be cooled by natural convection or surface methods. When naturally cooled, the motor provides 28 Nm torque and 35.6 Amps; with surface cooling, it reaches 42 Nm torque and 53.4 Amps. Other features include a 22Nm holding brake, digital servo feedback support, a rotor with 0.0192 kg m2 inertia, and a sealing ring on the plain main motor shaft.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Synchronous Motor

Model Number

MHD112B-048-NG1-BN

Motor Frame Size

112

Winding Code

048

Motor Centering Diameter

130 millimeters

Shaft Diameter

32 millimeters

Mounting Type

Flange

Motor Flange Size

192 millimeters

Motor Flange Hole Diameter

14 millimeters

Motor Length

375 millimeters

Motor Mass

34 kilograms

Maximum Speed

4500 RPM

Rated Speed

2800 RPM

Motor Housing Rating

IP65

Cooling Type

Natural Convection or Surface Cooling

Natural Convection Continuous Torque

28 Nm

Natural Convection Continuous Current

35.6 Amps

Surface Cooling Continuous Torque

42 Nm

Surface Cooling Continuous Current

53.4 Amps

Rotor Inertia

0.0192 kg m2

Brake Holding Torque

22 Nm

Brake Release Voltage

24 Volts DC

Permitted Storage Temperature

-20 to 80 degrees Celsius

Permitted Working Temperature

0 to 40 degrees Celsius

Feedback Type

Digital Servo

Power Connection Location

Side B of Motor Housing

Main Shaft Type

Plain with Sealing Ring.
