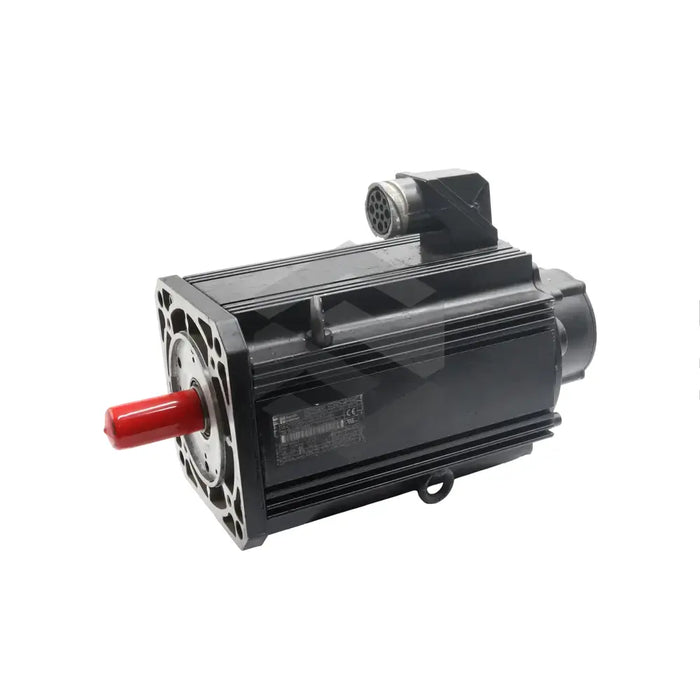

C image of MHD112B-048-NP1-AN | Main (Front Left)

MHD112B-048-NP1-AN

by Bosch Rexroth Indramat
$9,308.04 - $12,751.56
$9,308.04
$9,308.04 - $12,751.56
$9,308.04

In Stock, Ships 1 - 3 Days

Bosch Rexroth Indramat presents the MHD112B-048-NP1-AN, a servo motor from their MHD series, built for industrial use. It features a 22 Nm holding brake, digital servo feedback, surface or natural convection cooling friendly housing, and a shaft with a key and sealing ring. The motor's power stems from a drive controller, connected via a power cable to the side A power connector on the motor housing. It has a rated speed of 2800 RPM and a max speed of 4500 RPM with a peak current output of 160A and max torque output of 102 Nm. The holding brake operates at 24V DC with a 25ms connection time and a 50ms disconnection time. With a weight of 34kg, integrate this efficiently-sized, matte black motor easily into your layout. It has an IP65 protection for near-machinery installation. Please note that handling should be performed by trained professionals.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product

MHD112B-048-NP1-AN Servo Motor

Holding Brake

22 Nm

Feedback Type

Digital Servo Feedback

Motor Housing Features

Shaft with key and sealing ring

Housing Cooling Type

Surface or natural convection

Power Cable Connection

Side A of the Motor housing

Minimal Power Cable Cross-Section for natural convection

4 mm2

Minimal Power Cable Cross-Section for surface cooling

6 mm2

Rated Speed

2800 RPM

Maximum Speed

4500 RPM

Peak Current

160 Amps

Max Torque

102 Nm

Brake Operation Voltage

24 Volts DC

Brake Current Consumption

0.71 Amps

Brake Connection Time

25 milliseconds

Brake Disconnection Time

50 milliseconds

Brake Weight

1.1 kilograms

Motor Weight

34 kilograms

Motor Flange Size

192 millimeters

Centering Diameter

130 millimeters

Shaft Diameter

32 millimeters

Motor Length

375 millimeters

Motor Mounting

Four 14-millimeter holes on Motor Flange

Protection Category

IP65

Housing Surface

Painted Matter Black
