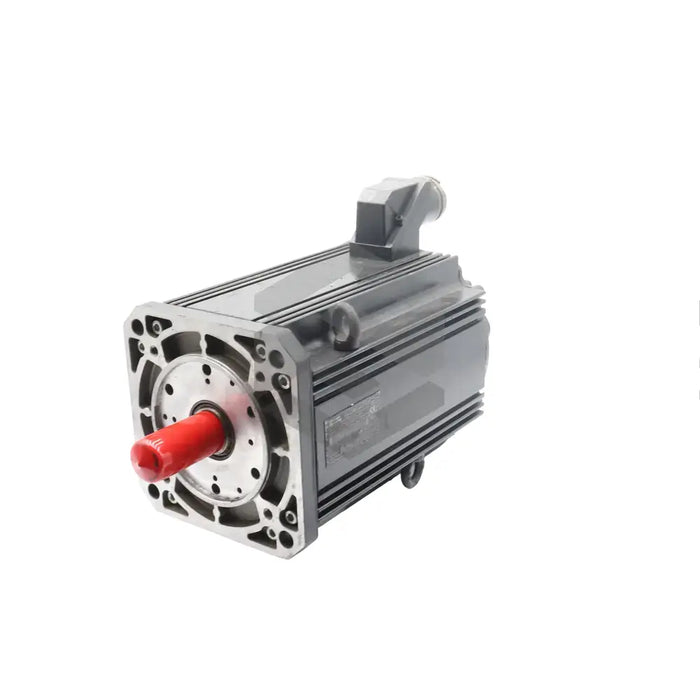

C image of MHD112B-048-NP1-BN | Main (Front Left)

MHD112B-048-NP1-BN

by Bosch Rexroth Indramat
$9,308.04 - $12,751.56
$9,308.04
$9,308.04 - $12,751.56
$9,308.04

In Stock, Ships 1 - 3 Days

The MHD112B-048-NP1-BN is a Bosch Rexroth Indramat synchronous motor with the power connection located on the B side. It comes with a DIN 6885-1 compliant keyway shaft and a shaft sealing ring, along with a 22Nm holding brake. The motor, rated at 187Hz and 2800 min-1 speed, has Class F insulation per DIN VDE 0530 standards. The brushless design ensures less heat dissipation and maintenance-free operation. The flange design allows for easy attachment of external components. The low inertia synchronous motor, constructed using special magnet materials, has a torque constant of 0.88Nm/A at 20𝇈C. For safety reasons, only trained individuals should operate the equipment. Its holding brake weighs 1.1kg and features a 3.6 x 10-4 moment of inertia with a voltage constant of 80V/1,000min-1. Its total length is 375mm and requires properly seated O-rings when mounting the motor flange socket covers with a sealing air connector.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product ID

MHD112B-048-NP1-BN

Power Connection Position

Side B

Shaft Design

Keyway in compliance with DIN 6885-1

Shaft Sealing Ring

Yes

Holding Brake

22Nm

Insulation Class

Class F according to DIN VDE 0530

Rated Frequency

187Hz

Rated Speed

2800min-1

Winding Inductivity

3.1mH

Winding Resistance

0.22 Ohm at 20°C

Motor Design

Brushless for maintenance-free operation

Heat Dissipation

Minimum between exterior wall of motor housing and stator windings

Flange Design

Supports easy attachment of external components

Inertia

Low due to special magnet materials

Torque Constant

0.88Nm/A at 20°C

Software Source Code

Cannot be changed

High Temperature Usage

Not recommended

Training Requirement for Operators

Must be trained and qualified as per technical safety regulations

Safety Conductor Connection Requirement

Must be permanently and firmly connected

Brake Safety Assurance

Not assured if controlled by drive controller only

Holding Brake Moment of Inertia

3.6 x 10-4

Holding Brake Weight

1.1kg

Voltage Constant

80V/1,000min-1

Overall Length

375mm

Air Connector Mounting Requirement

O-rings must be properly seated when motor flange socket covers are mounted.
