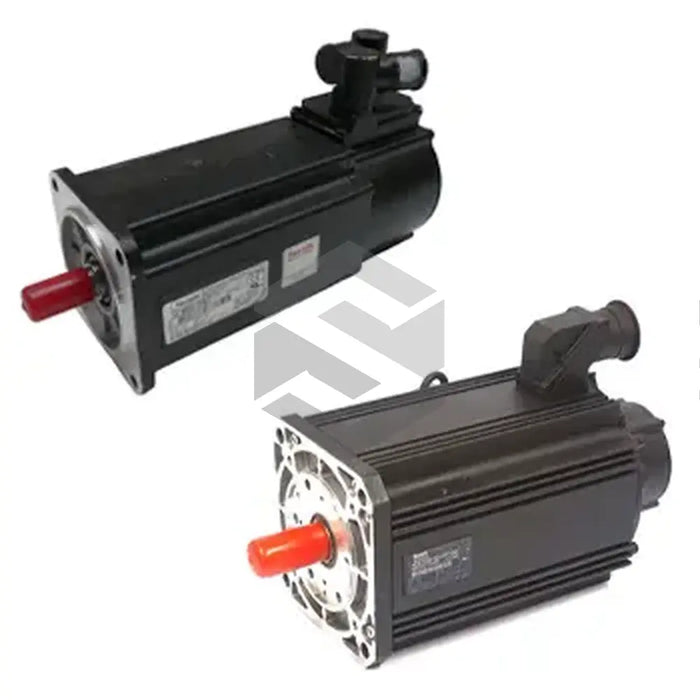

MHD112B-048-PG0-AN

Request a quote
The MHD112B-048-PG0-AN, a product of Bosch Rexroth Indramat, exemplifies exceptional mechanical engineering in digital motor technology. As part of Bosch Rexroth’s MHD Synchronous Servo Motor series, it delivers high efficiency and employs the IndraDrive system - a modular arrangement of essential components for operational safety and functionality, used widely in industries such as robotics and textiles. This servo motor measures 192mm in flange size, 130mm in centering diameter, and boasts motor frame length of 28.0 Nm with a winding code of 48. The MHD112B-048-PG0-AN, features digital feedback with an absolute integrated multiturn encoder and is designed for liquid cooling. It contains a plain output shaft with a shaft sealing ring and has a side A directed power connector. Operating at a standard speed of 3500min-1 with a 160.0A peak current, and possessing a 20C voltage constant of 80 V/1000min-1, this motor ensures stable performance.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: MHD Synchronous Servo Motor
  • Model: MHD112B-048-PG0-AN
  • Motor Frame Size: 192mm flange size, 130mm centering diameter
  • Motor Frame Length: 28.0 Nm
  • Winding Code: 48
  • Encoder: Digital feedback with absolute integrated multiturn
  • Holding Brake: None
  • Cooling System: Housing designed for cooling liquid
  • Output Shaft: Plain with sealing ring
  • Output Power Connector Direction: Side A
  • Motor Speed: 3500min-1
  • Peak Current: 160.0A
  • Voltage Constant: 80 V/1000min-1 at 20C
