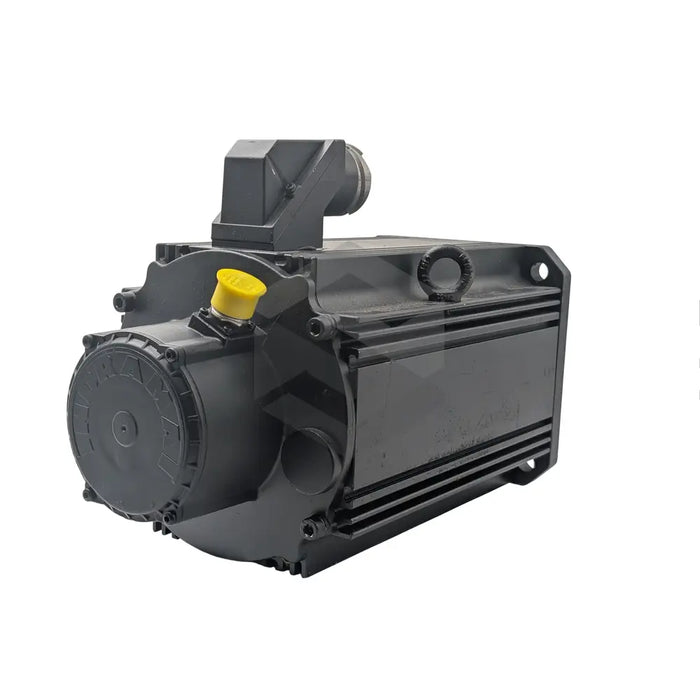

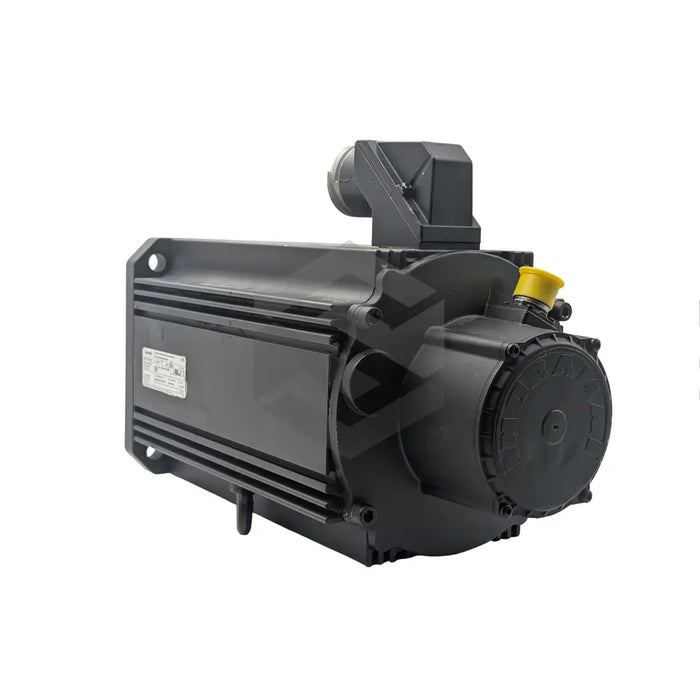

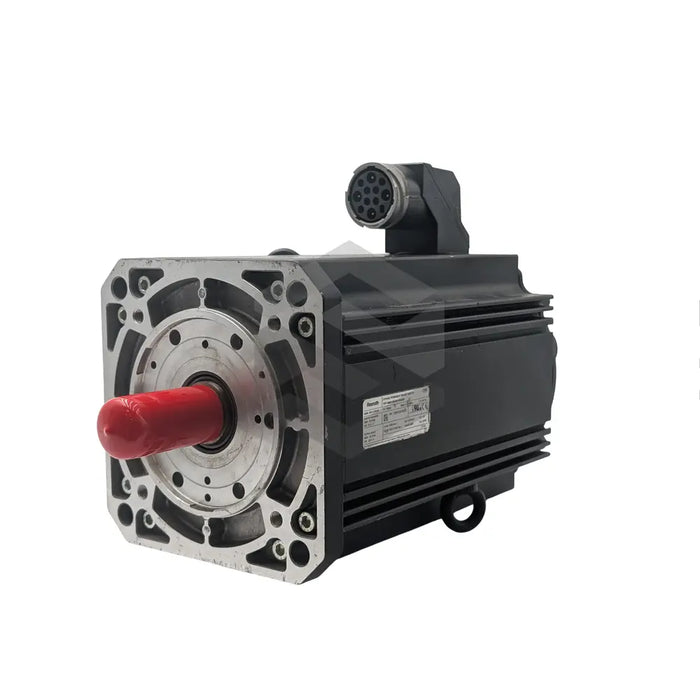

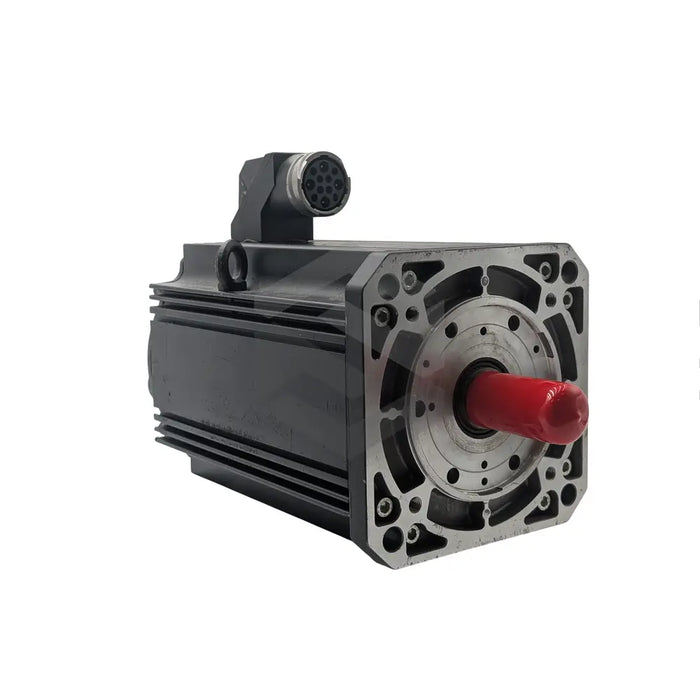

C image of MHD112B-048-PG1-RN | Main (Front Left)

MHD112B-048-PG1-RN

by Bosch Rexroth Indramat
$9,401.06 - $14,476.23
$9,401.06
$9,401.06 - $14,476.23
$9,401.06

In Stock, Ships 1 - 3 Days

The MHD112B-048-PG1-RN is an industrial synchronous motor crafted by Bosch Rexroth Indramat, designed for high performance in industrial applications such as machine tools and paper machines. With options for natural convection and surface cooling, this motor excels in a variety of thermal conditions. The motor possesses a winding code of 048 and a frame size of 112. With surface cooling, it offers 42 Nm of continuous torque, a 53.4 Amp continuous current, and 2800 RPM speed. Meanwhile, it delivers between 28 to 33 Nm of torque and 35.6 to 43.5 Amp of current in natural convection settings depending on overtemperature. The motor receives power from the controller via a connector on the right side of the housing frame. Other features include digital servo feedback, a 22 Nm holding brake, and a sealed plain shaft. It also comes in a flange design with a 130mm centering diameter and resides in an IP65-rated protective casing.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Industrial Synchronous Motor

Model

MHD112B-048-PG1-RN

Motor Series

MHD

Motor Winding Code

048

Frame Size

112

Motor Cooling Method

Natural Convection and Surface Cooling

Continuous Output Torque with Surface Cooling

42 Nm

Continuous Current Output with Surface Cooling

53.4 Amps

Rated Speed with Surface Cooling

2800 RPM

Rated Torque with Surface Cooling

30.6 Nm

Rated Current with Surface Cooling

27.5 Amps

Continuous Torque Output with Natural Convection (60K overtemperature)

28 Nm

Continuous Current Output with Natural Convection (60K overtemperature)

35.6 Amps

Rated Speed with Natural Convection

2800 RPM

Rated Torque with Natural Convection (60K overtemperature)

7.7 Nm

Rated Current with Natural Convection (60K overtemperature)

6.9 Amps

Continuous Torque Output with Natural Convection (100K overtemperature)

33 Nm

Continuous Current Output with Natural Convection (100K overtemperature)

43.5 Amps

Rated Torque with Natural Convection (100K overtemperature)

18.1 Nm

Rated Current with Natural Convection (100K overtemperature)

16.9 Amps

Power Connection Location

Right Side of Housing

Digital Servo Feedback

Yes

Holding Brake

22 Nm

Shaft Type

Plain Shaft with Seal

Mounting Style

Flange Mounted

Centering Diameter

130 mm

Housing

IP65 Rated
