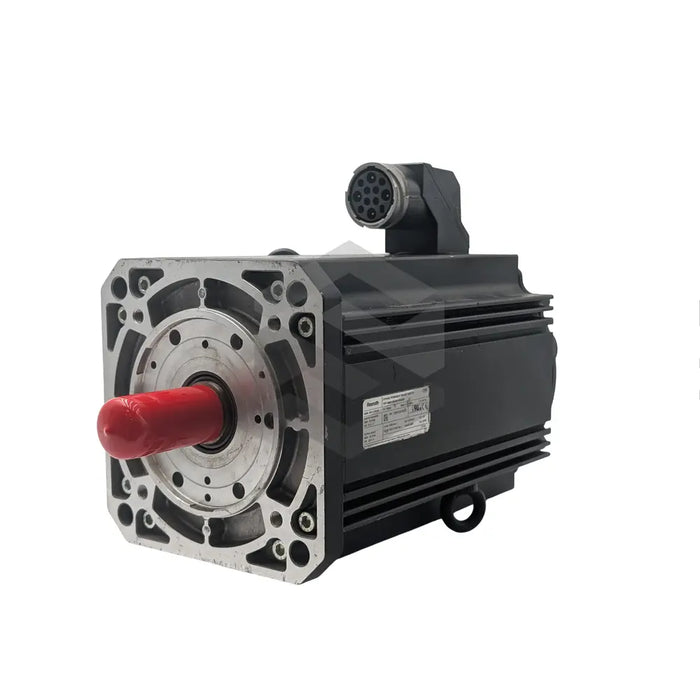

C image of MHD112B-048-PP0-AN | Main (Front Left)

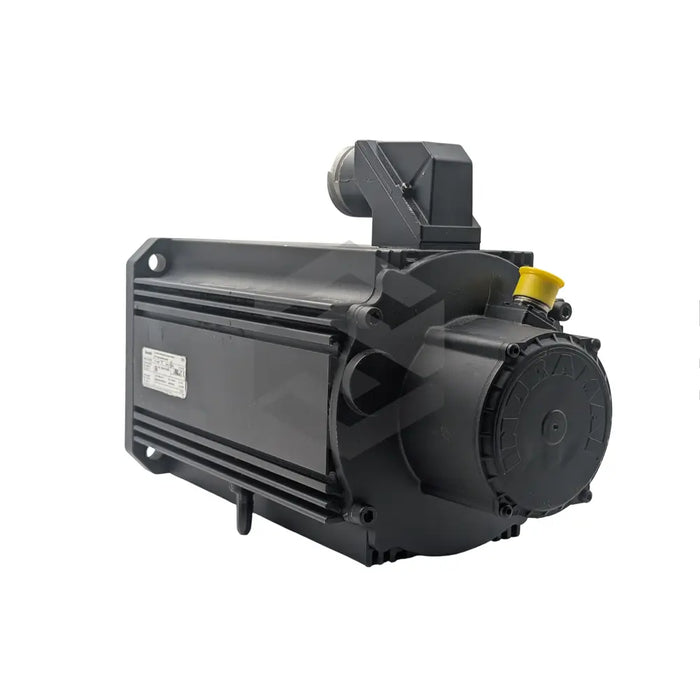

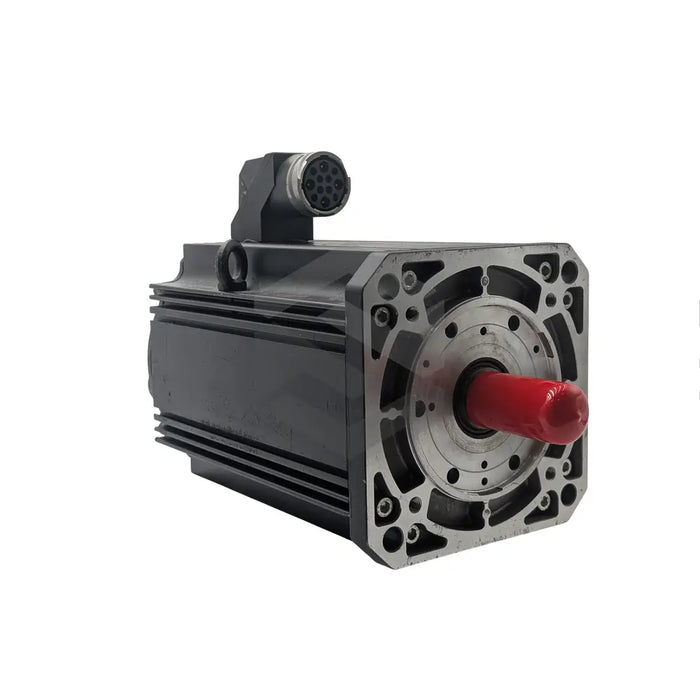

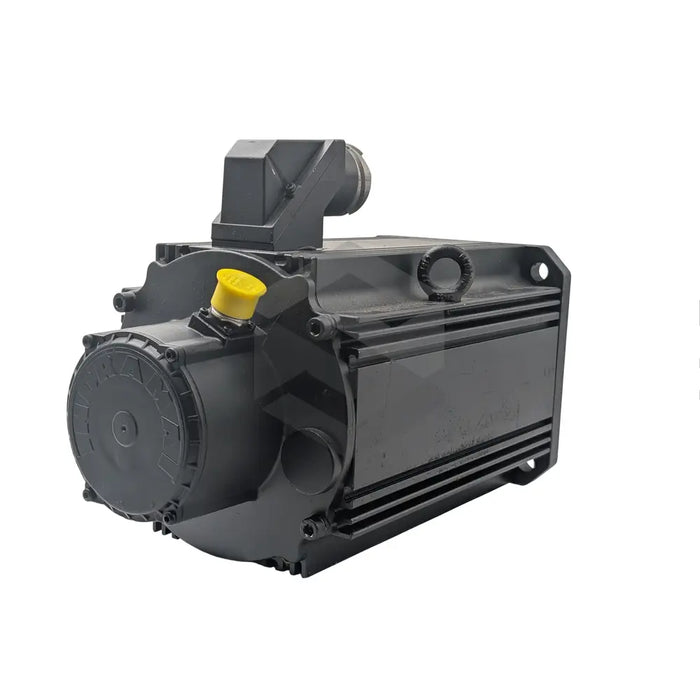

MHD112B-048-PP0-AN

by Bosch Rexroth Indramat
$12,625.78 - $12,625.78
$12,625.78
$12,625.78 - $12,625.78
$12,625.78

In Stock, Ships 1 - 3 Days

The MHD112B-048-PP0-AN is a remarkable servo motor from the MHD Synchronous Motor series by Bosch Rexroth Indramat, a global leader in digital motor technology and automation. The motor stands out for its design efficiency and dynamic capacity, making it suitable for various applications such as robotics, printing machines, and textiles. With a flange size of 192mm, a centering diameter of 130mm, and a motor frame length of 28 Nm, this motor also boasts a robust winding code of 48 and no holding brakes. Other notable features include a liquid cooling housing type and a power connector directed to side A. The motor has an encoder with integrated multi-turn feedback and the output shaft includes a sealing ring per DIN 6885-1. Offering a rated speed of 2800 min-1, a moment of inertia of 192.0x10-4, and theoretical maximum torque of 102.0 NM, the MHD112B-048-PP0-AN exemplifies top-notch speed and control.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Type

MHD112B-048-PP0-AN

Manufacturer

Bosch Rexroth Indramat

Series

Bosch Rexroth MHD Synchronous Motor

Flange Size

192mm

Centering Diameter

130mm

Motor Frame Length

28 Nm

Winding Code

48

Brakes

No holding brakes

Cooling Type

Liquid cooled

Power Direction

Side A

Sealing Ring Specification

DIN 6885-1

Encoder Type

Digital multi-turn feedback

Rated Speed

2800 min-1

Moment of Inertia

192.0x10-4

Theoretical Maximum Torque

102.0 NM
